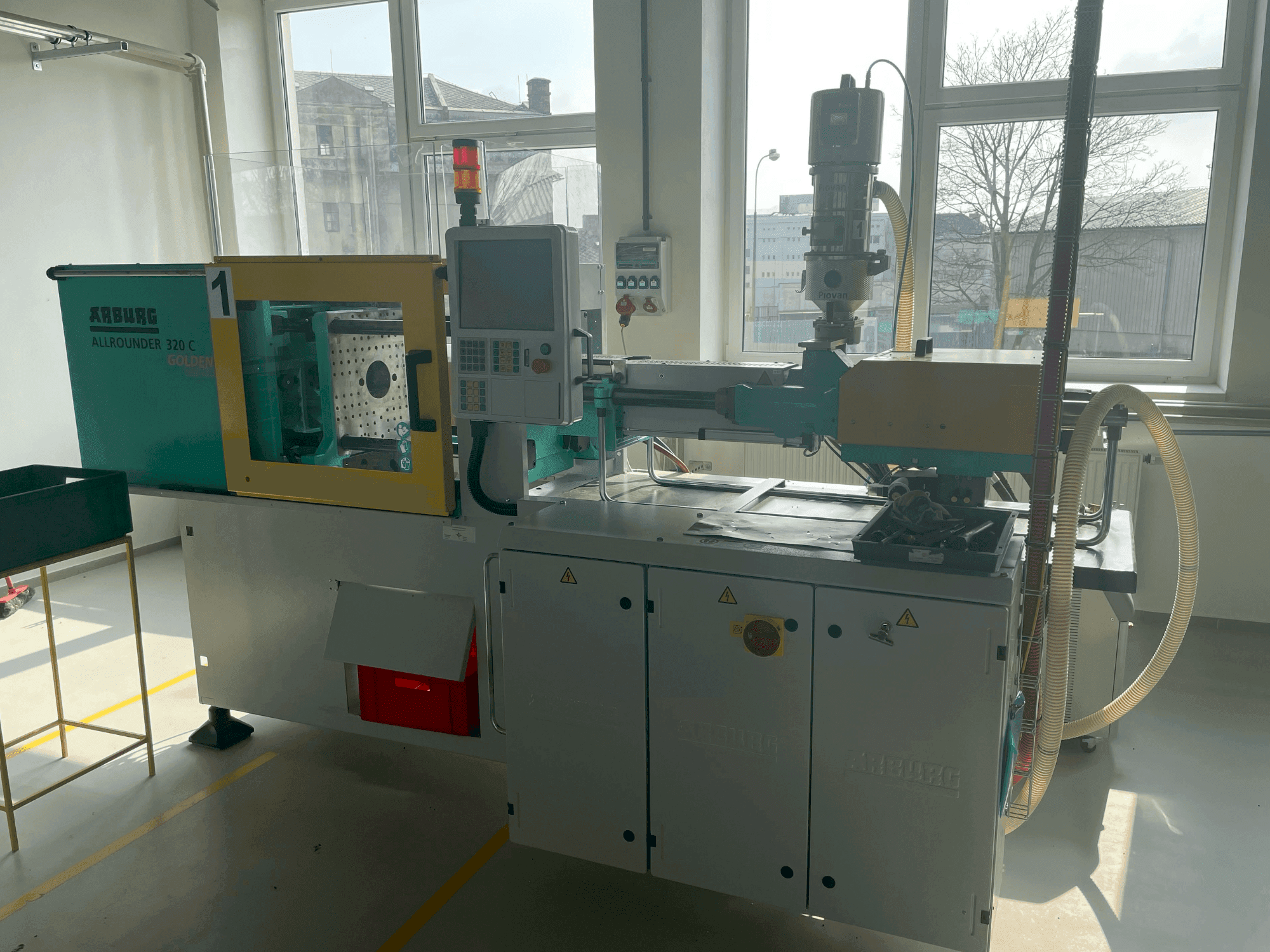

Front view of Arburg Allrounder 320C 500-170  machine

Arburg Allrounder 320C 500-170

Arburg - Allrounder 320C 500-170

2018

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ARBURG Allrounder 320C 500-170 Golden Edition Injection moulding machine was manufactured in 2018 in Germany. It has a clamping force of 500 kN, screw diameter of 30 mm, an opening stroke of 350 mm and a max. open daylight of 550mm. The size of mould platens is 446 x 446 mm. Ejector stroke is at 125 mm and ejector force at 30 kN. This injection moulding machine is equipped with the 170 injection unit and has only been used for testing operations. It is in very good conditions with low hours, only 1100 pump hours. In addition to the machine there is additional equipment available for extra charge: Dryer T50, Tempering unit THW9 and Granulate suction assembly. See tech specs as PDF (EN) attached (scroll down to access the document).

Overview

  • brand: Arburg
  • year: 2018
  • MODEL: Allrounder 320C 500-170
  • production hours: 1100
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Injection Moulding Machines
  • availability: Sold
  • GINDUMAC ID: CZ-INJ-ARB-2018-00002

Technical Information

General Data

  • Measurements width: 3416 mm
  • Measurements depth: 1431 MM
  • Measurements height: 2004 mm
  • Machine weight: 2300 kg

Injection Unit

  • Screw diameter: 30 mm
  • Shot weight: 77 max. g PS
  • Stroke volume: 85 max. cm3 CM³
  • Injection pressure: 2000 max. bar
  • Screw speed: 42 max. m/min
  • Heating capacity: 9.4 kW
  • Adjustable heating zones: 5

Clamping unit

  • Clamping force: 500 kN
  • Opening stroke: 350 mm
  • Max open daylight: 550 mm
  • Distance between bars: 320x320 mm
  • Size of mold platens: 446x446 mm
  • Ejector stroke: 125 mm
  • Ejector force for / back: 30 kN

Media

  • Main electronic connection: 22 kW
  • Pump drive power: 11 max. kW
  • Power consumption: 63 kW
  • Oil tank: 165 l

    Additional Equipment

    • - Dryer T50 (available for additional charge)
    • - Tempering unit THW9 (available for additional charge)
    • - Granulate Suction Assembly (available for additional charge)

    Additional Information

      Machine Benefits

      • Qualitative Machine Benefits:
        • - Very low hours, used for testing only
        • - Pump hours 1100

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
