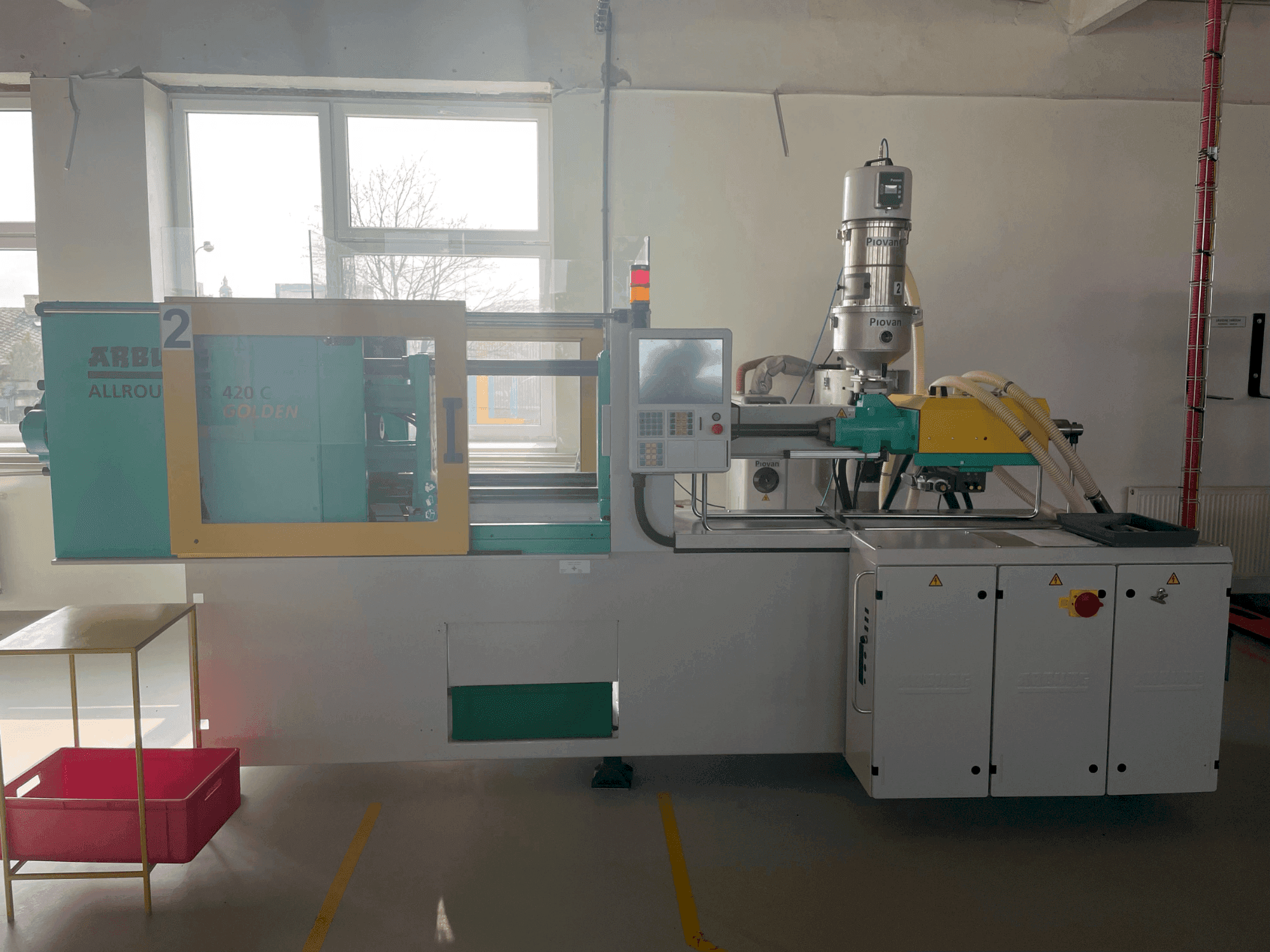

Front view of Arburg Allrounder 420C 1000-290  machine

Arburg Allrounder 420C 1000-290

Arburg - Allrounder 420C 1000-290

2018

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ARBURG Allrounder 420C 1000-290 Injection moulding machines machine was manufactured in 2018 in Germany. It has a clamping force of 1000 kN, a screw diameter of 35mm, an opening stroke of 500 mm and an ejector force of 40 kN. This injection moulding machine is like new as only used for test operations. In total it has only 220 pump hours. In addition to the machine there is additional equipment available for extra charge: Dryer T50, Tempering unit THW9 and Granulate suction assembly. See tech specs as PDF (EN) attached (scroll down to access the document). See tech specs as PDF (EN) attached (scroll down to access the document).

Overview

  • brand: Arburg
  • year: 2018
  • MODEL: Allrounder 420C 1000-290
  • production hours: 220
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Injection Moulding Machines
  • availability: Sold
  • GINDUMAC ID: CZ-INJ-ARB-2018-00001

Technical Information

Injection Unit

  • Screw diameter: 35 mm
  • Shot weight: 132 g/PS
  • Stroke volume: 144 CM³
  • Injection pressure: 2000 bar
  • Adjustable heating zones: 5

Clamping unit

  • Clamping force: 1000 KN
  • Opening stroke: 500 mm
  • Max open daylight: 750 mm
  • Distance between bars: 420x420 mm
  • Size of mold platens: 570x570 mm
  • Ejector stroke: 175 mm
  • Ejector force for / back: 40 kN

    Additional Equipment

    • - Dryer T75 C56 (available for extra charge)
    • - Tempering unit THW9 C57 (available for extra charge)
    • - GRANULATE SUCTION ASSEMBLY C58 (available for extra charge)

    Additional Information

      Machine Benefits

      • Qualitative Machine Benefits:
        • - Very low hours, used for testing only!
        • - Pump hours 220

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
