Arburg - Arburg 370 S 700-290 USK-INJ-ARB-2015-00001

Name: Arburg Arburg 370 S 700-290 U
Brand: Arburg
SKU: SK-INJ-ARB-2015-00001
Price: 20000 EUR
Availability: InStock

20,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Arburg 370 S 700-290 U | Injection Moulding

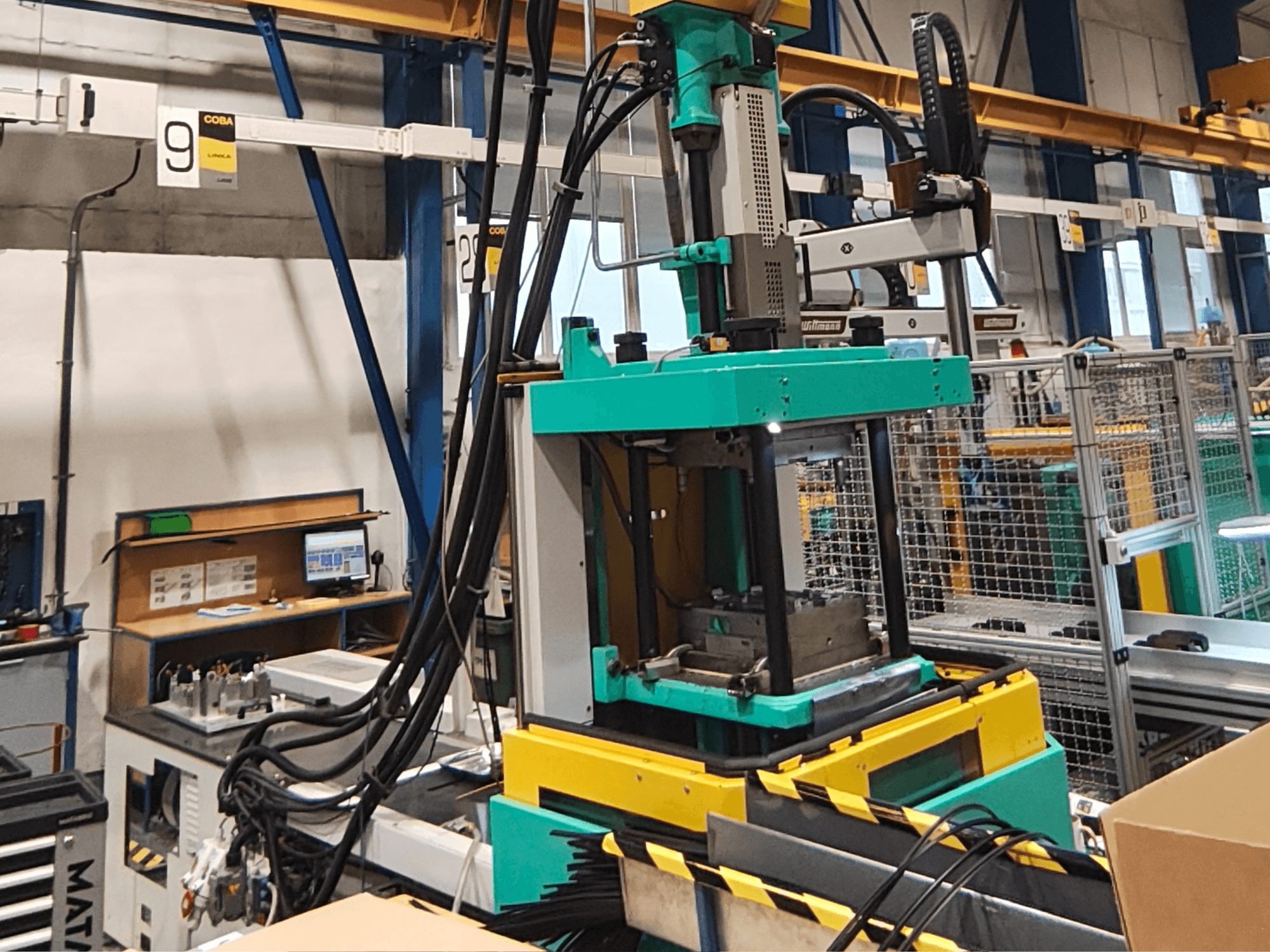

This Arburg 370 S 700-290 U was manufactured in 2015. It features a screw diameter of 40 mm, injection weight of 172 g, and a clamping force of 70 t. The tiebar spacing is 370 x 370 mm, with clamping platens measuring 510 x 510 mm. Ideal for precision hydraulic injection moulding, consider the opportunity to buy this Arburg 370 S 700-290 U hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2015
MODEL: Arburg 370 S 700-290 U
production hours: 15305
application type: Injection Moulding
Location: Slovakia
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Arburg 370 S 700-290 U

Dimensions

Machine Height: 2020 mm
Machine Length: 3920 mm
Machine Weight: 3300 kg

Technical Specification

Clamping Force: 700 kN
Screw Diameter: 40 mm

Additional Information

Injection weight: 172 g
Injection pressure: 1530 bar
Injection volume: 188 cc

Clamping unit:

Tiebar spacing: 370 x 370 mm
Clamping platens: 510 x 510 mm
Mold height: 200 mm
Maximum spacing between platens: 600 mm
Ejector stroke/force: 125 mm / 30 kN

Power:

Motor power: 15 kW
Heating power: 7.7 kW (5 zones)
Total power: 23 kW

Condition:

Very good condition, low hours
Pump hours: 4,164

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
