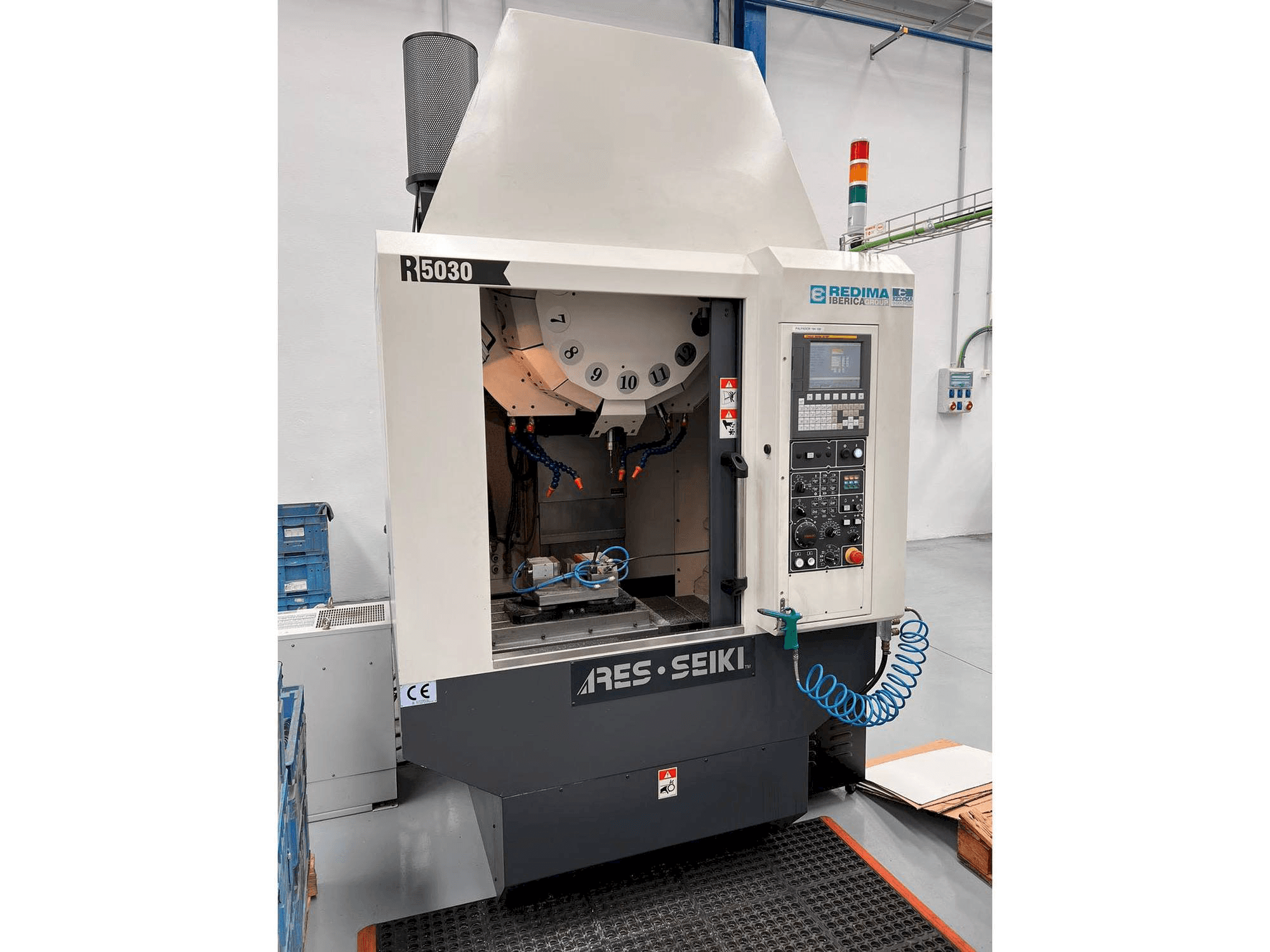

Front view of ARES-SEIKI R5030  machine

ARES-SEIKI - R5030ES-MIL-ARE-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ARES-SEIKI R5030 Vertical Machine Center was made in the year 2020 in Taiwan and has 242 cutting hours. It is equipped with a Fanuc Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 0 - 12000 rpm.

Overview

  • brand: ARES-SEIKI
  • year: 2020
  • MODEL: R5030
  • production hours: 242
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - ARES-SEIKI R5030

General Data

  • Measurements width: 1500 mm
  • Measurements depth: 2230 mm
  • Measurements height: 2480 mm
  • Machine weight: 2200 kg

Control Unit

  • Model: Series Oi-MF
  • Brand: FANUC

Main drive

  • Spindle speed range: 0 - 12000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Rapid traverse: 48 m/min
  • Y-AXIS Rapid traverse: 48 m/min
  • Z-AXIS Rapid traverse: 60 m/min

Table

  • Outer length: 550 mm
  • Outer width: 320 mm
  • Table load: 200 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Number of t-slots x width x distance between slots: 3x14x100 mm
      • - Longitudinal course of the table: 500 mm
      • - Transversal course of the table: 300 mm
      • - Vertical course: 300 mm
      • - Cone: bbt-30
      • - Distance from axis to table: 170-470 mm
      • - Distance from center to column: 350 mm
      • - Automatic tool changer
      • - Number of tools: 14
      • - Selection type: bidirectional
    • Qualitative Machine Benefits:
      • - Maximum tool diameter (adjacent tool): 80 mm
      • - Maximum tool length: 200 mm
      • - Maximum tool weight: 3 kg
      • - Engines: main shaft (headstock): 3. 7/2. 2 kw, x, y axes: 1. 6 kw, z axis: 3kw, tool cooling pump: 1. 2 cv
      • - Renishaw ts27r
      • - Probe mist extractor
      • - Direct motor 12,000 rpm, 5. 5kw
      • - 14 tools servo
      • - Head cooler
      • - Auger type chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
