- ➤ Used BACCI TWIN - 2001 - For Sale | gindumac.com

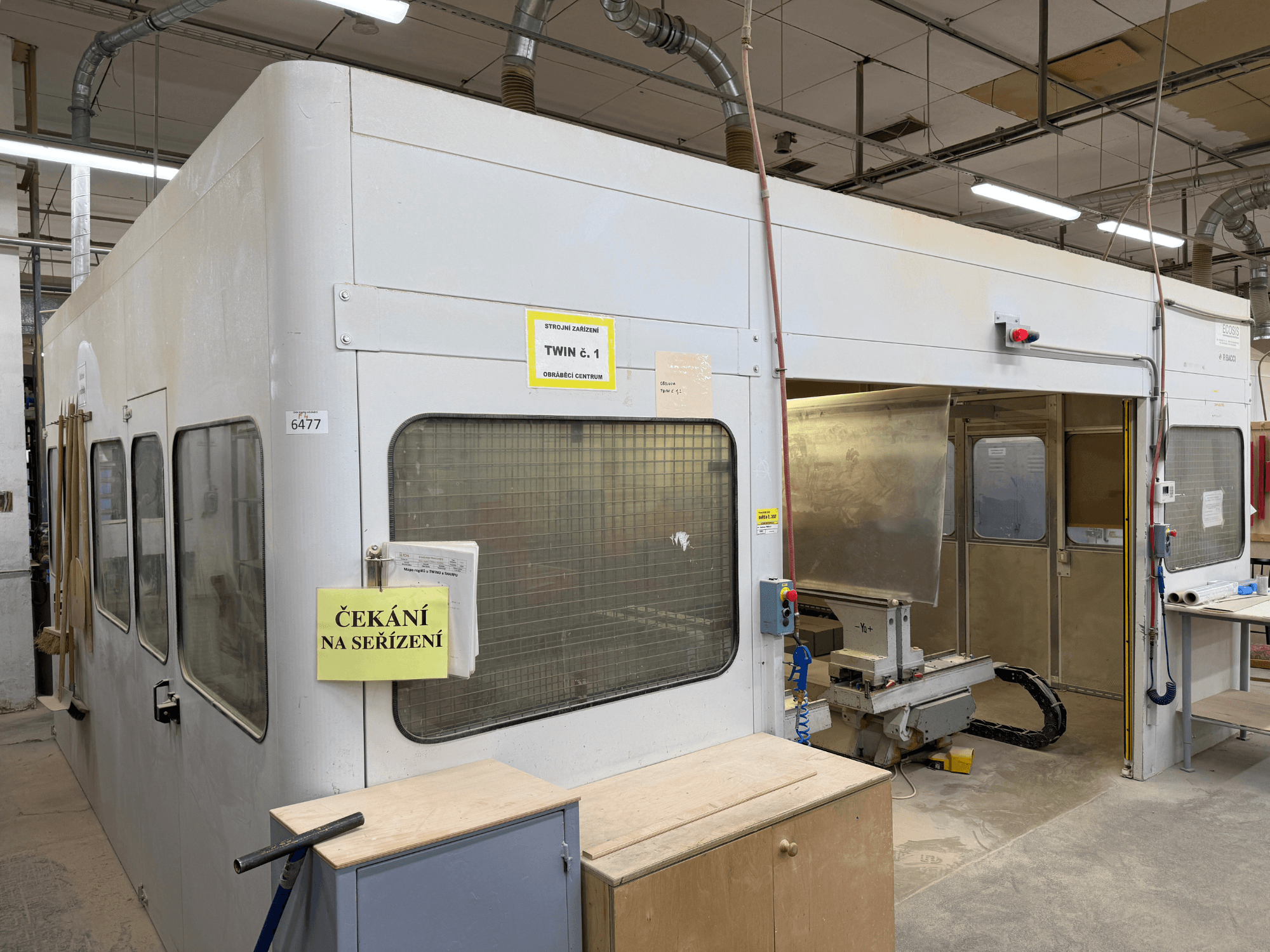

This 6-axis BACCI TWIN CNC Wood Machining Centre was manufactured in 2001. It features an impressive X-axis travel of 3400 mm, Y-axis travel of 1500 mm, and Z-axis travel of 1000 mm. The machine is equipped with 4 milling heads that can reach speeds of up to 24,000 rpm and includes 2 tables and 2 vacuum units. If you are looking to get high-quality wood machining capabilities, consider the BACCI TWIN machine we have for sale. Contact us for further details.
Overview
- brand: BACCI
- year: 2001
- MODEL: TWIN
- application type: CNC Wood Machining
- Location: Czech Republic
- machine type: CNC Wood Machining Centre
Technical Information - BACCI TWIN
Movement
- Number of Axes: 6
- X-axis Travel: 3600 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Speed: 24000 RPM
Additional Information
Rotary axes: B rotation = no limit; C rotation = 400°
Rapids/axis speeds: X = 100 m/min; Y = 60 m/min; Z = 60 m/min
Milling: 4 milling heads, 0–24,000 rpm, ER32 mounting, max tool diameter 200 mm
Workholding/table: 2 tables
Condition: Fully working
Additional equipment
2 vacuum units
Dust and noise protection cabinet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
