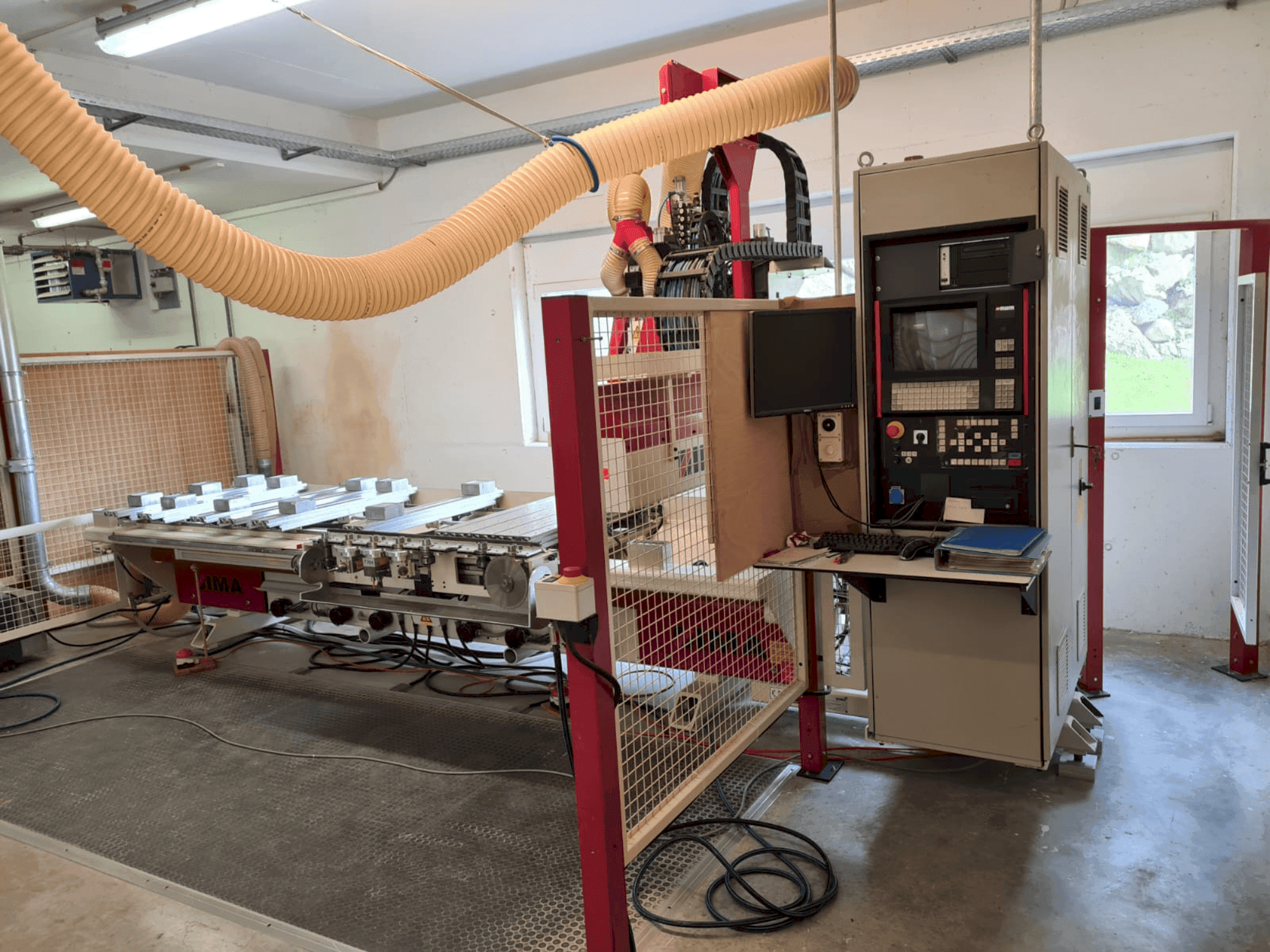

IMA - BIMA 310 120/300CH-CNC-IMA-1999-00001

Additional Equipment

• - 1 vertical drilling unit in Y Direction
• - 1 vertical drilling unit in X Direction
• - 1 main spindle with programmable direction of rotation
• - 1 centrally integrated CNC axis rotating 360 degrees
• - 1 adapter unit saw, fixed at 90 degrees
• - Saw blade diameter: 200 mm
• - 1 adapter unit horizontal drilling and milling head (cross head)
• - 1 adapter unit horizontal milling cutter (face milling)
• - 2x adapter units for hinge drilling
• - Includes 1 new Siemens vacuum pump + numerous accessories

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Clamping height from top edge of the suction plate: z1 100 mm
  • - Working height: 950 mm
  • - Path operation speed: 20 m/min
  • - Acceleration: 5 m/s²
  • - Changing field area without pendulum machining: x 2 x 1400 mm
  • - Free space in the middle: x 200 mm
  • - With pendulum machining: x 2 x 900 mm
  • - Free space in the middle: x 1200 mm
  • - Tool feed: automatic
  • - Feed force: 11000 n

Extra information

• - Media Extraction standard: Connection for 200 mm, 120 mm, and 100 mm diameter Extraction speed: Approx. 28 m/sec Extraction volume: Approx. 3200 m³ per hour 1 vacuum pump 40 m³/h Compressed air: Central connection for 1/2" with maintenance unit. Air pressure 6 bar constant Electrical Equipment Electrical installation according to EN Control cabinet dimensions (HxWxD): 2000 mm / 1200 mm / 600 mm Safety and protection measures according to CE regulations
