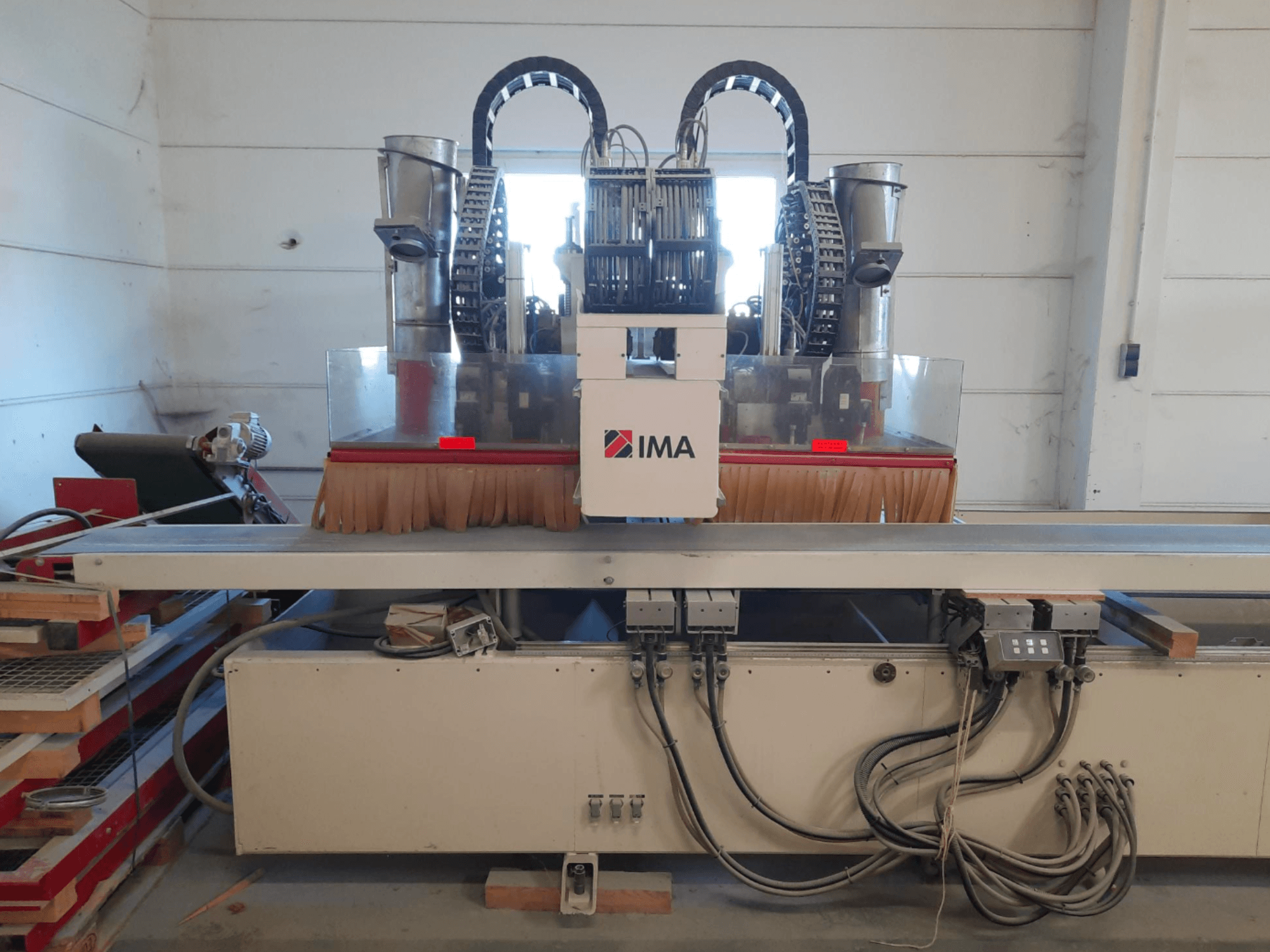

This 3-axis IMA BIMA 610 V CNC Wood Machining Centre was manufactured in 1996. It features a working area of 4000 mm in the X-axis and 1200 mm in the Y-axis, with a maximum drilling diameter of 45 mm. The machine is equipped with 5 drilling spindles in the X direction and 11 in the Y direction. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 610 V machine we have for sale. Contact us for further details.
Overview
- brand: IMA
- year: 1996
- MODEL: BIMA 610 V
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - IMA BIMA 610 V
Dimensions
- Machine Height: 3100 mm
- Machine Weight: 7500 kg
- Table Length: 4000 mm
- Table Width: 1200 mm
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 1200 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 18000 RPM
- Tool Stations: 5
Additional Information
CNC Control: NUM CNC Control
Drive System: Siemens SIMODRIVE 611
Maximum Workpiece Length: 4000 mm
Minimum Workpiece Length: 150 mm
Maximum Workpiece Width: 1650 mm
Minimum Workpiece Thickness: 10 mm
Maximum Workpiece Thickness: 65 mm
Drilling Spindles (X): 5
Drilling Spindles (Y): 11
Maximum Drilling Diameter: 45 mm
Main Spindle Power: 7.5 kW
Main Spindle Motor: Water-cooled
Tool Holder: HSK F63 DIN 69893
Feed Drive Motor Power: 4 kW
Feed Speed: 1,500–18,000 mm/min
Maximum Tool Weight: 5 kg
Maximum Tool Clamping Force: 10,000 N
Operating Voltage: 400 V ±5%
Supply Voltage: 3/N/PE, 400 V, 50 Hz
Frequency: 50 Hz
Total Connected Load: 33 kVA
Rated Power: 41 kW
Rated Current: 62 A
Connection Cross Section: 16 mm²
Control Voltage: 24 V
Control Current: 52 A
Compressed Air Pressure: 6–10 bar
Air Connection: 1/2"
Required Air Consumption: 28 m³/h
Dust Extraction Connection: Ø100–300 mm
Air Flow Ø100: 14 m³/min
Air Flow Ø140: 28 m³/min
Air Flow Ø160: 36 m³/min
Air Flow Ø180: 46 m³/min
Air Flow Ø200: 56 m³/min
Air Flow Ø280: 105 m³/min
Air Flow Ø300: 127 m³/min
Number of Dust Extraction Ports: 1
Machine Condition: Disassembled but fully functional
Optional Equipment, not included:
Vacuum block suction cups (aluminum) and sliding console
Two milling spindles for synchronous milling with integrated tool changers
Safety fence with associated safety mats
Control cabinet and operating unit
Waste conveyor belt for milled sections
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
