➤ Used FORMAT4 PROFIT H22 - 2009 - For Sale | gindumac.com

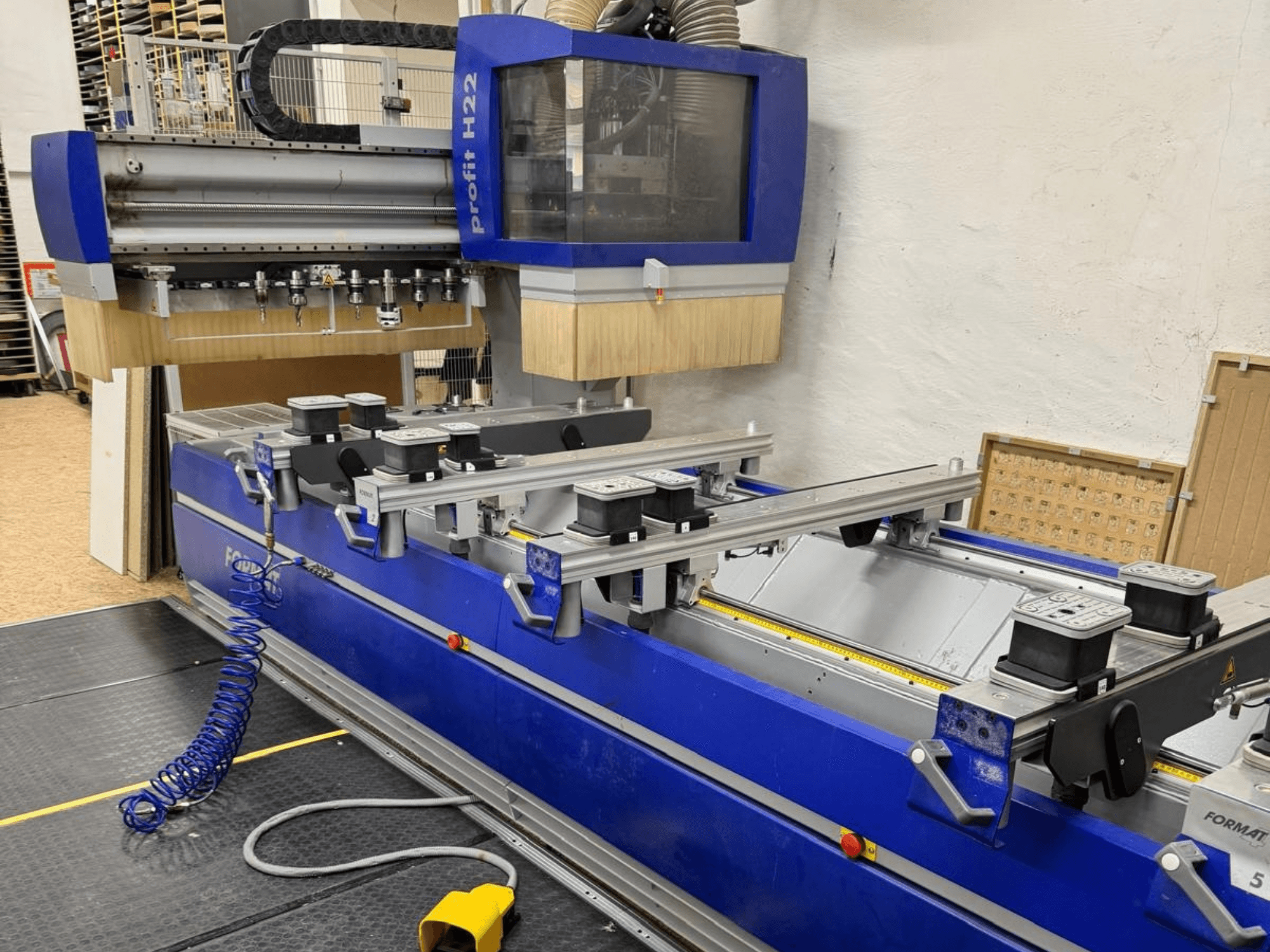

This 3-axis FORMAT4 PROFIT H22 was manufactured in 2009. It features a robust work table type with a pod and rail vacuum bed, equipped with 6 moveable support rails and vacuum suction cups. The machine includes a linear rack tool changer with 8 tool positions and additional pick-up stations. If you are looking to get high-quality CNC wood machining capabilities, consider the FORMAT4 PROFIT H22 machine we have for sale. Contact us for further details.

Overview

brand: FORMAT4
year: 2009
MODEL: PROFIT H22
production hours: 2133
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - FORMAT4 PROFIT H22

Dimensions

Machine Height: 2350 mm
Machine Length: 6000 mm
Table Width: 4500 mm

Movement

Number of Axes: 3
X-axis Travel: 3060 mm
Y-axis Travel: 1210 mm
Z-axis Travel: 100 mm

Technical Specification

Spindle Power: 12 kW
Spindle Speed: 24000 RPM
Tool Stations: 8

Additional Information

- Voltage (V): 400.0 V

- Frequency (HZ): 50.0 Hz

- Phase (PH): 3.0

- Power (KW): 18.0 kW

- Duty Cycle: S6-40%

- Current (A): 36.0 A

- Work Table Type: Pod and rail/console vacuum bed with 6 movable support rails and vacuum suction cups

- Tool Changer: Linear rack tool changer mounted under the gantry rail plus additional pick-up/aggregate station

Included Equipment:

Foot pedal control switch, compressed air hose reel, central dust extraction ducting with flexible hose connectors, energy chain cable carriers, safety floor matting with boundary zone marking

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
