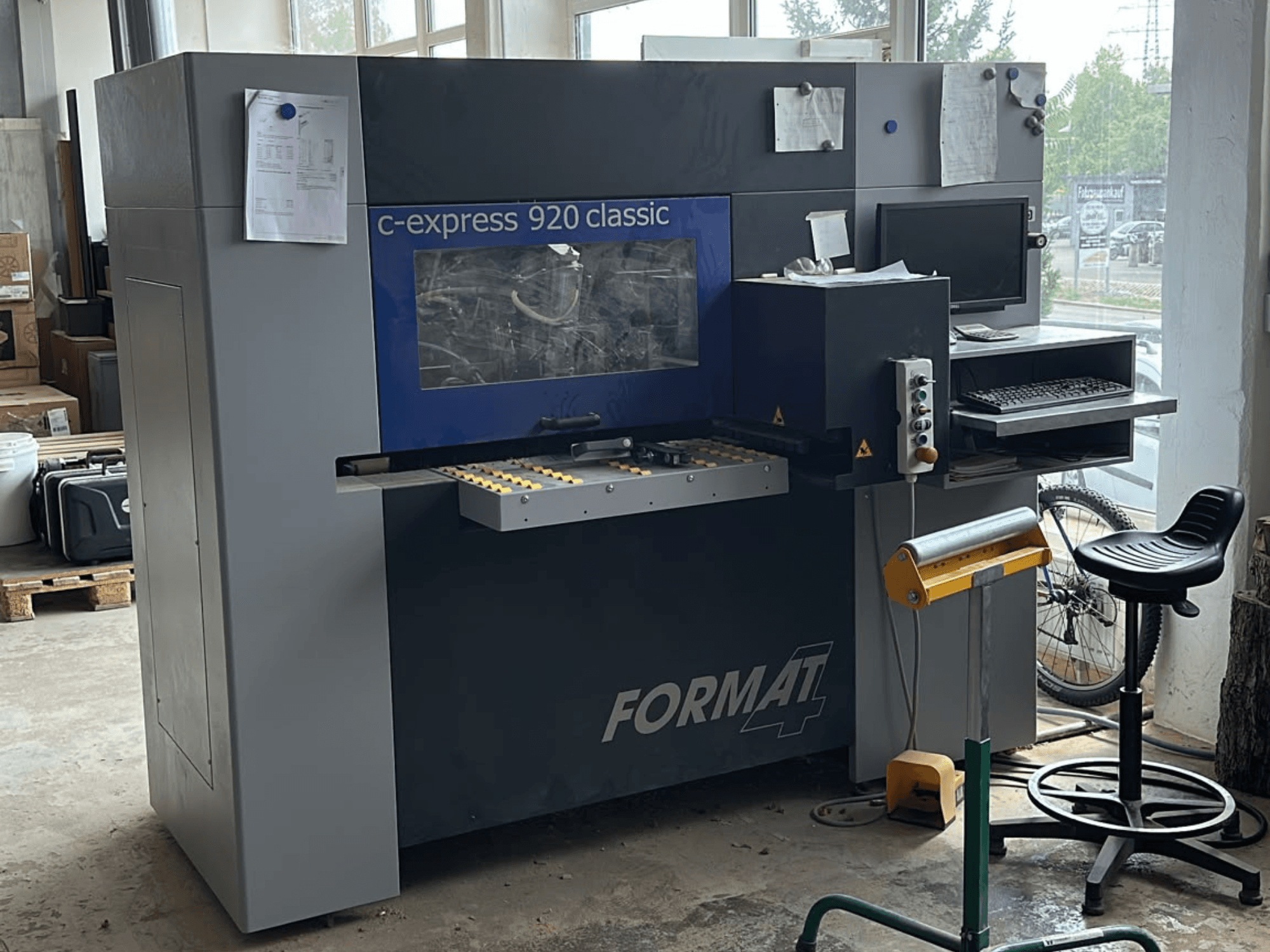

FORMAT4 - c-express 920 classicDE-CNC-FOR-2018-00001

• Voltage: 400 V

• Phase: 3 Ph

• Frequency: 50 Hz

• Current: 22 A

• Power: 7.0 kW

• Duty Cycle: S6 40%

• CNC Drilling Center c-express 920 classic

• Clamping Collet System for CNC Through-Feed Technology

• Drilling, Sawing and Milling Operations from Below

• Laser "0" Double Reference

• Drilling Head: DH15

• 6 Vertical Drilling Spindles

• 9 Horizontal Drilling Spindles

• 1 Grooving Saw in X Direction

• Graphical User Interface

• Machine Software License: 1

• CE Conformity

• Maximum Workpiece Dimensions (X × Y × Z): 3000 × 920 × 50 mm

• Minimum Workpiece Dimensions (X × Y × Z): 280 × 180 × 10 mm

• 19" LCD Color Display

• Mouse and Keyboard

• Packed on Pallet: 2100 × 1500 mm

Tools:

• HW circular saw blade 100 × 5 / 3.6 × 20 Z24 / FZ

• DP end mill D12 / NL23.5 / Z2+2+Q / GL80 / S20 / RL

• ER32 collet, Ø20 mm

• Drill bit Ø5 mm LL (3×)

• Drill bit Ø5 mm RL (2×)

• Drill bit Ø8 mm LL (4×)

• Drill bit Ø8 mm RL (3×)

• Through drill bit Ø5 mm LL (1×)

• Drill bit Ø15 mm RL (1×)

• Drill bit Ø35 mm RL (1×)

• End mill Ø8 mm (1×)

• End mill Ø10 mm (1×)

Upon request, we can also offer suitable extraction systems (currently eligible for funding in Germany) and compressed air solutions
