- ➤ Used QUICK CNC UA 481 - 2024 - For Sale | gindumac.com

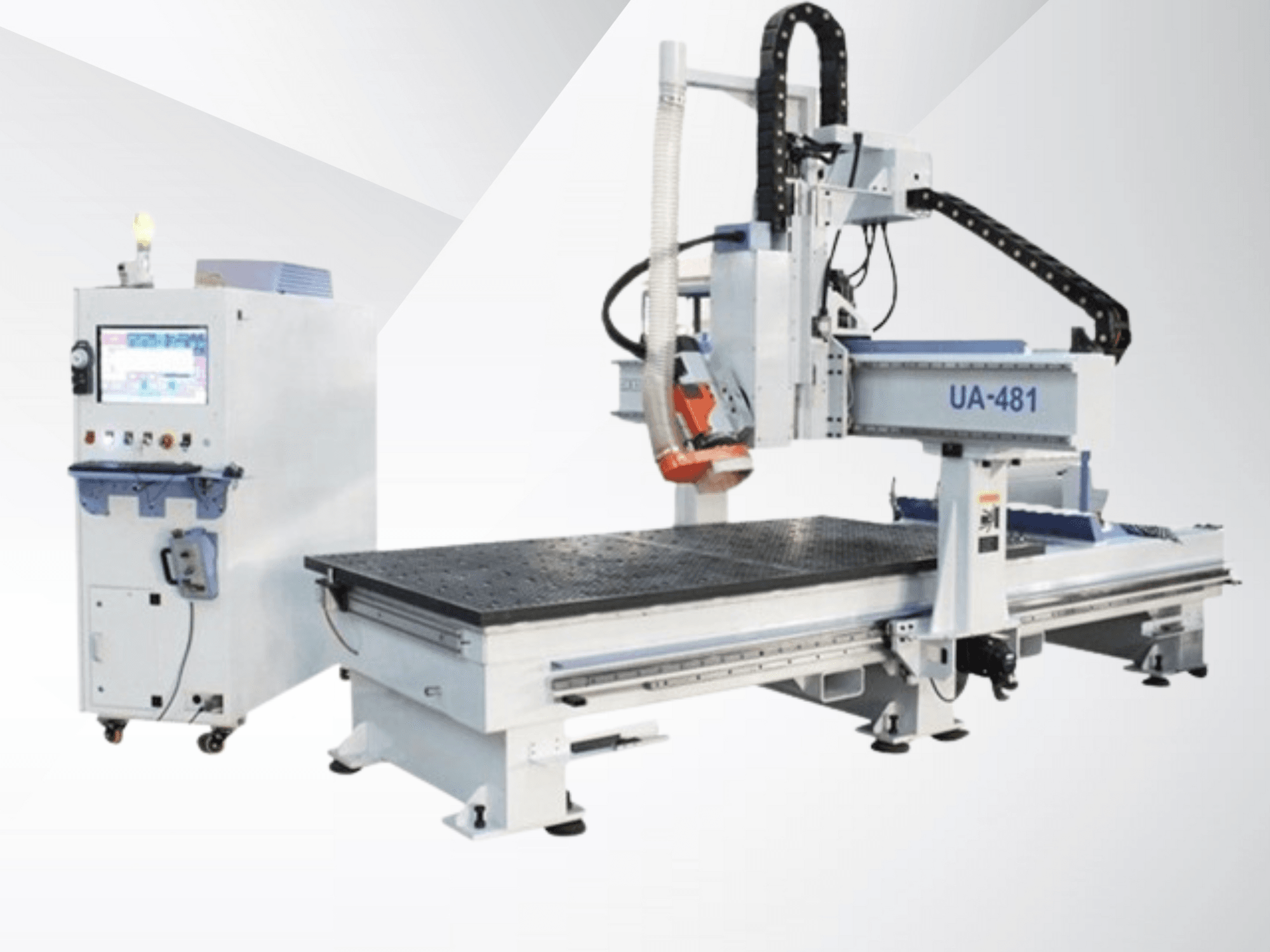

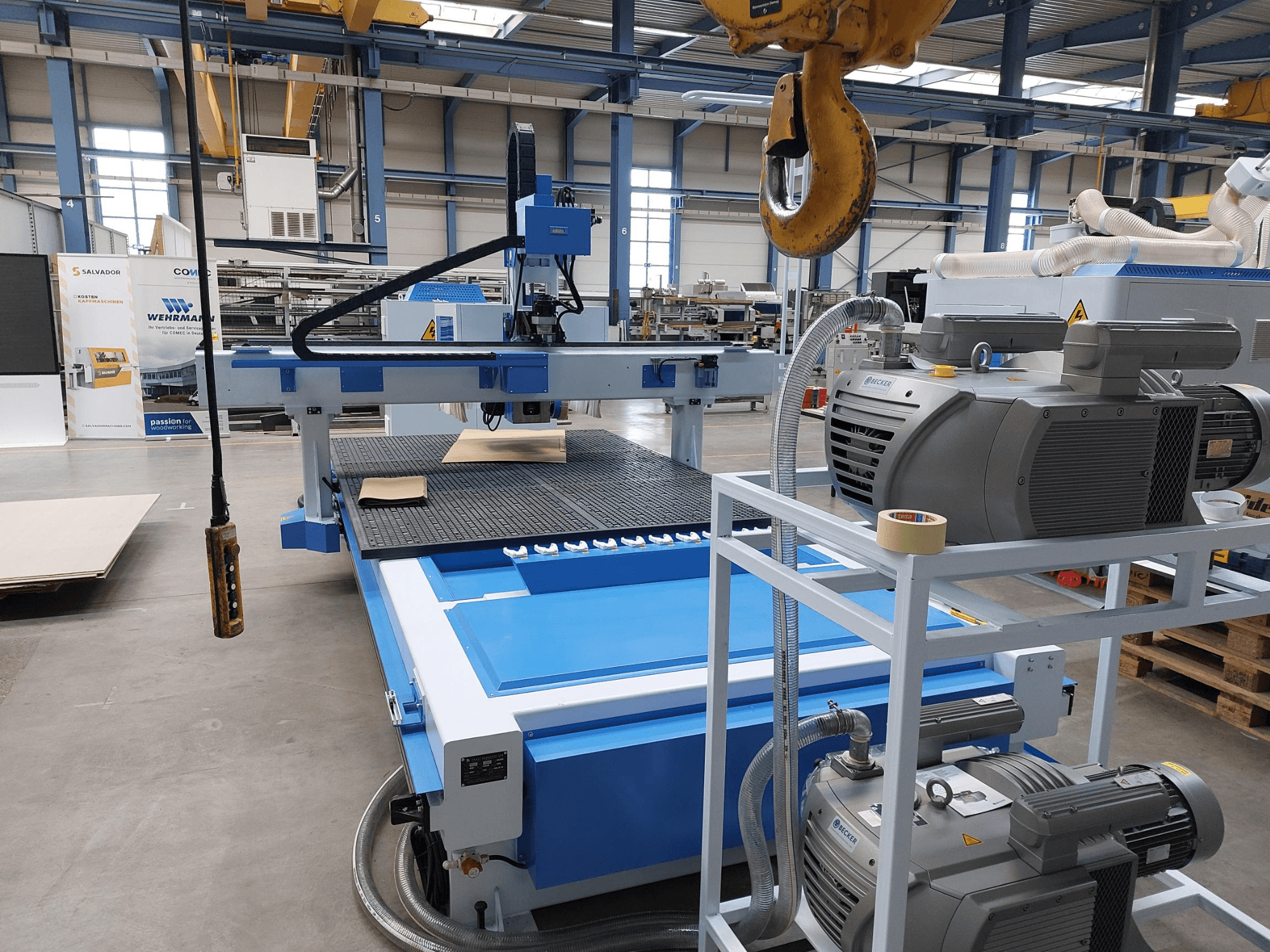

This 4-axis QUICK CNC UA 481 was manufactured in 2024. It features a 2100 x 3050 x 400 mm working area, a 9 KW HSD/HSK F 63 spindle, and a double layer vacuum table with 6 zones. Equipped with a Yaskawa servo motor and two Becker pumps at 250 m3/h each, it's ideal for advanced woodworking. Consider the opportunity to buy this QUICK CNC UA 481 CNC Wood Machining Centre. Contact us for more information about this machine.
Overview
- brand: QUICK CNC
- year: 2024
- MODEL: UA 481
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
- Available from: 16/12/2025
Technical Information - QUICK CNC UA 481
Movement
- Number of Axes: 4
- X-axis Travel: 2100 mm
- Y-axis Travel: 3050 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 9 kW
Additional Information
Condition: New
Power supply: 380 V, 3-phase
Spindle: HSD, 9 kW, HSK F63
Controller: NC Studio (German language)
Tool changer: Linear, 10 tools
Drives: Yaskawa servo motors
Table: Double-layer vacuum table, 6 zones
Additional equipment
Vacuum system: 2 Becker vacuum pumps, 250 m³/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
