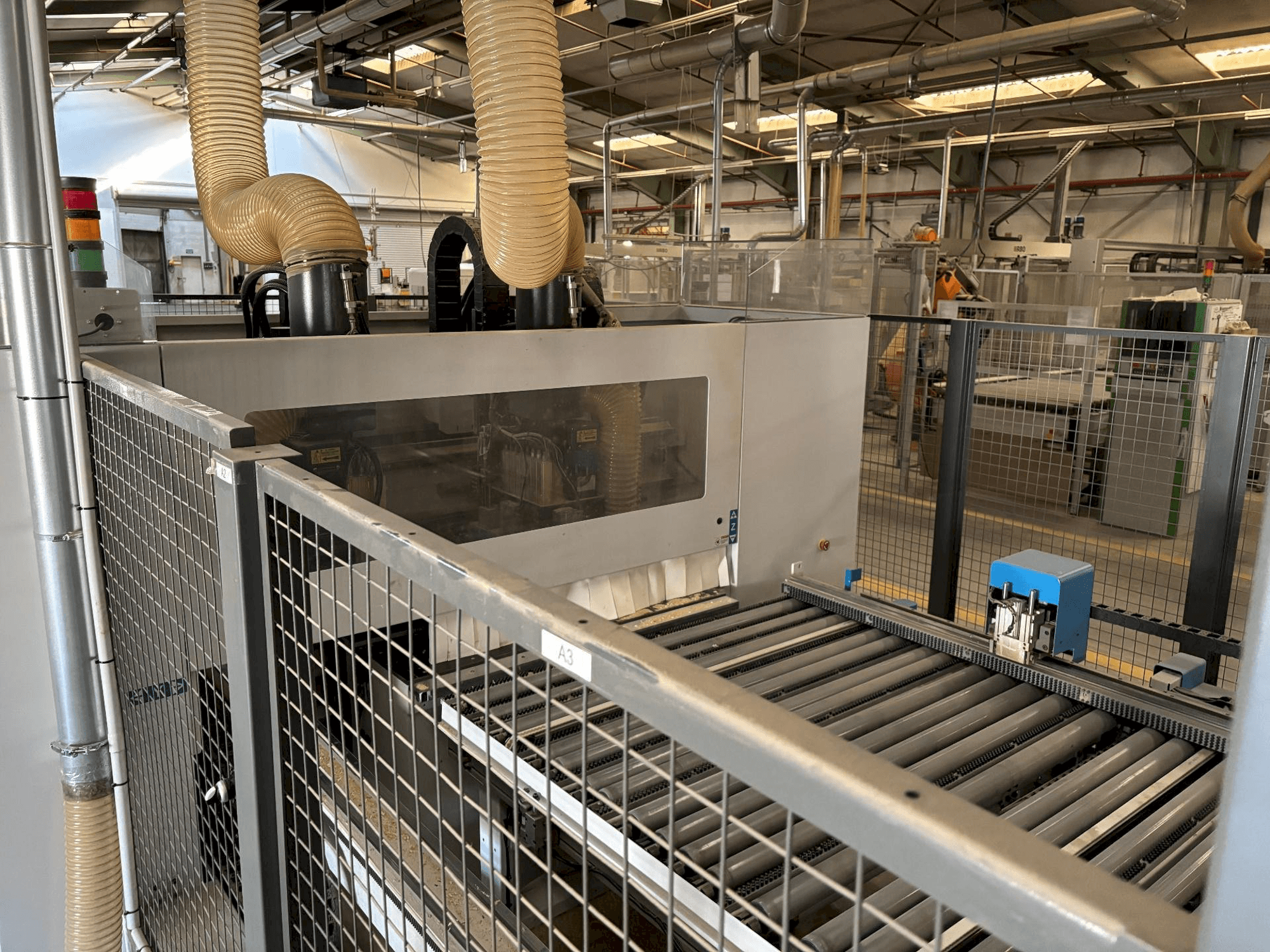

Front view of MASTERWOOD MASTERDRILL TF 600 SA  machine

MASTERWOOD - MASTERDRILL TF 600 SADE-MIL-MAS-2020-00001

66,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This CNC Wood Machining Centre was manufactured in 2020. The Masterwood MASTERDRILL TF 600 SA features dual 3.5 kW milling spindles with a maximum speed of 18,000 rpm and air cooling. It handles workpieces from 400 to 2500 mm in length and 400 to 950 mm in width, with thicknesses from 8 to 60 mm. If you are looking to get high-quality milling capabilities, consider the Masterwood MASTERDRILL TF 600 SA machine we have for sale. Contact us for more information.

Overview

  • brand: MASTERWOOD
  • year: 2020
  • MODEL: MASTERDRILL TF 600 SA
  • application type: Milling (Wood)
  • Location: Germany
  • machine type: CNC Wood Machining Centre
  • availability: Immediately

Technical Information - MASTERWOOD MASTERDRILL TF 600 SA

Main drive

  • Spindle speed range: 18000 rpm 1/MIN
  • Spindle motor power: 3.5 kW

Workpiece

  • Workpiece x: 8~ 60 mm
  • Workpiece y: 400 ~ 950 mm
  • Workpiece z: 400 ~ 2500 mm

Tools

  • Type of tool holder: ER 25

    Additional Equipment

    • - Machine work table fully managed by NC.
    • - NC-controlled side aligner for perfect alignment.
    • - Masterwork for easy programming.
    • - Master Drill: Human-machine interface.
    • - Trepan: For manual and equipment operations.
    • - Automatic barcode scanner at the infeed
    • - Palette CAM start software
    • - Motorized roller conveyor for loading workpieces at the infeed

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Motorized conveyor belt with sensor control.
        • - Upper drilling heads: vertical drills in x direction: 7+7 vertical drills in y direction: 5+5
        • - Upper drilling heads: horizontal drills in x direction: 2x2 + 2+2 horizontal drills in y direction: 2+2
        • - Lower drilling head: vertical drills: 3x3
        • - Grooving saw: maximum diameter of the saw blade: 125 mm
        • - Grooving saw: grooves can be sawn from a minimum of 55 mm to a maximum of 850 mm
        • - Right-left rotation
        • - Operation by inverter
        • - Air cooling

      Extra information

      • - The technical data and descriptions are a copy of the order confirmation at the time. Data are for information purposes and are not binding.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
