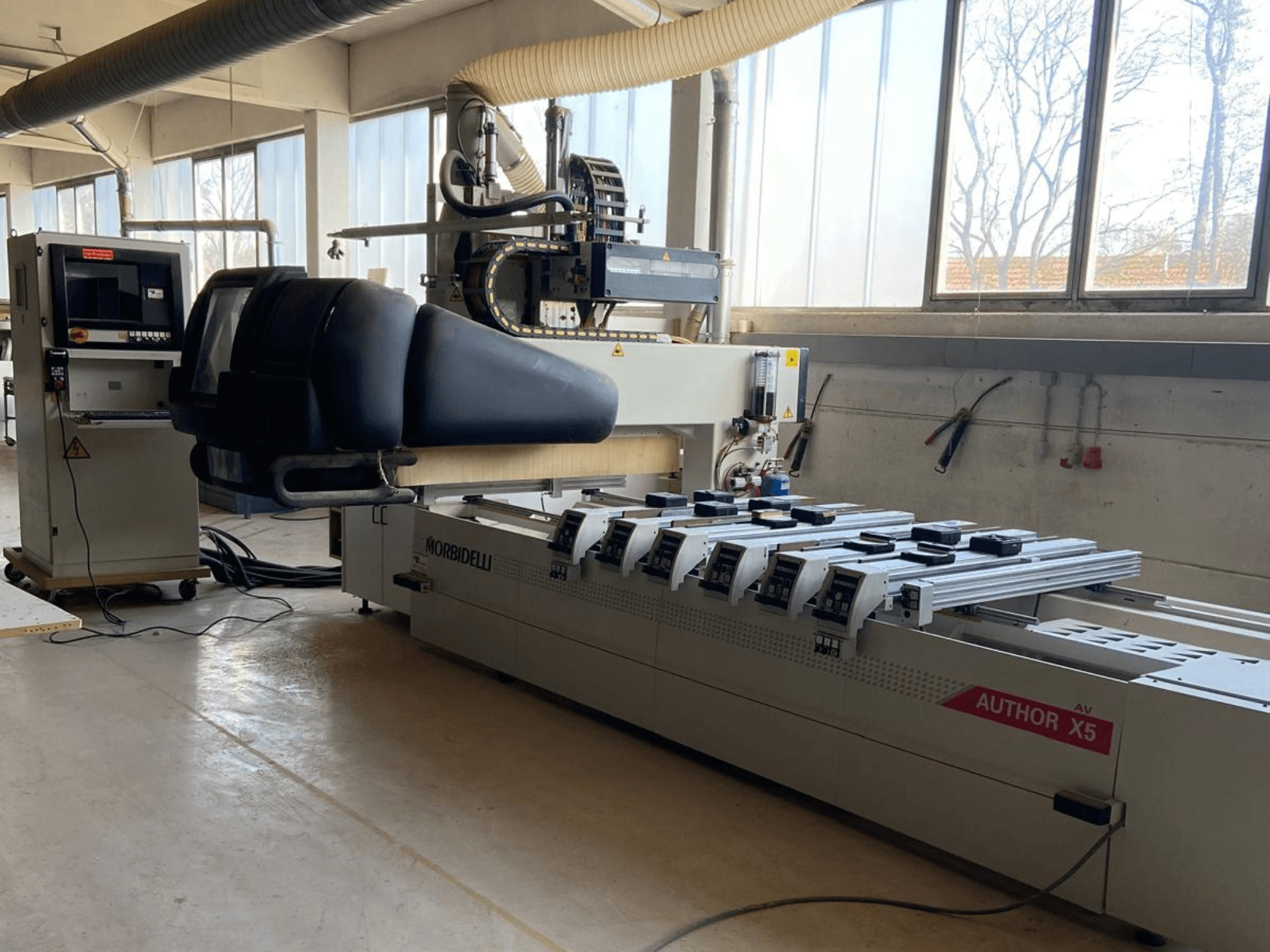

CNC Wood Machining Centre MORBIDELLI Author X5 in a workshop, showcasing control panel and machining area from a side view.
CNC Wood Machining Centre MORBIDELLI Author X5 in a workshop, showcasing control panel and machining area from a side view.

MORBIDELLI - Author X5DE-CNC-MOR-2008-00001

26,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis MORBIDELLI Author X5 was manufactured in 2008. It features a working field of 3050 mm in the X direction, 1348 mm in the Y direction, and 400 mm in the Z direction. The machine is equipped with a powerful 11 kW spindle and a tool changer with 12 positions. If you are looking to get high-quality CNC wood machining capabilities, consider the MORBIDELLI Author X5 machine we have for sale. Contact us for further details.

Overview

  • brand: MORBIDELLI
  • year: 2008
  • MODEL: Author X5
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Wood Machining Centre
  • control unit brand:

Technical Information - MORBIDELLI Author X5

Dimensions

  • Machine Weight: 3500 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 3460 mm
  • Y-axis Travel: 1615 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Spindle Power: 11 kW
  • Spindle Speed: 20000 RPM

Additional Information

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Current: 48 A

  • Power supply: 400 V, 50/60 Hz

  • Power consumption: 28 kVA

  • Working field: X 3050 mm, Y 1348 mm, Z 400 mm

  • Rapid speeds: X 50 m/min, Y 45 m/min, Z 22 m/min

  • Drive system: ball screw in X/Y/Z axes

  • Pendulum processing: yes

  • Spindle: 5-axis Morbidelli milling spindle

  • C axis rotation: 640 degrees

  • B axis rotation: +/- 100 degrees

  • Inverter power: 18 kW

  • Tool holder: HSK 63F

  • Minimum distance table to spindle: 40 mm

  • Tool changer: rear tool room in X axis

  • Tool changer positions: 12

  • Max tool diameter: 240 mm

  • Max tool length: 220 mm

  • Max tool weight: 8 kg

  • Work table: vacuum clamping system

  • Vacuum pressure: 3000 Pascal

  • Control system: NUM 1040

  • Operating system: Windows XP Professional

  • Processor: 32-bit Pentium

  • RAM: minimum 256 MB

  • Hard disk: minimum 2 GB

  • Screen: 17 inch

  • Interface: RS232

  • Air pressure: 6 to 8 bar

  • Air consumption: 250 NL/min

  • Dust extraction connection: 250 mm

  • Air speed extraction: 30 m/s

  • Machine dimensions: approx. 5300 x 2200 x 2500 mm

  • Required space: approx. 6300 x 4000 x 3000 mm

  • Safety equipment: CE-compliant protection system

  • Central lubrication: automatic

  • Drilling head: 12 + 6 spindles

  • Vertical spindles (Y direction): 5

  • Vertical spindles (X direction): 8

  • Horizontal spindles (X direction): 4

  • Horizontal spindles (Y direction): 2

  • Vertical spindle pitch: 32 mm

  • Horizontal spindle pitch: 64 mm

  • Drilling speed: 4000 rpm

  • Drilling unit power: 2.2 kW

  • Drilling tool holder: M10

  • Pneumatic stroke: 60 mm

Additional equipment

  • Chip conveyor (included)

  • Vacuum pump 250 m3/h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
