- Battenfeld HM 13000/9200/7700 Injection moulding machine

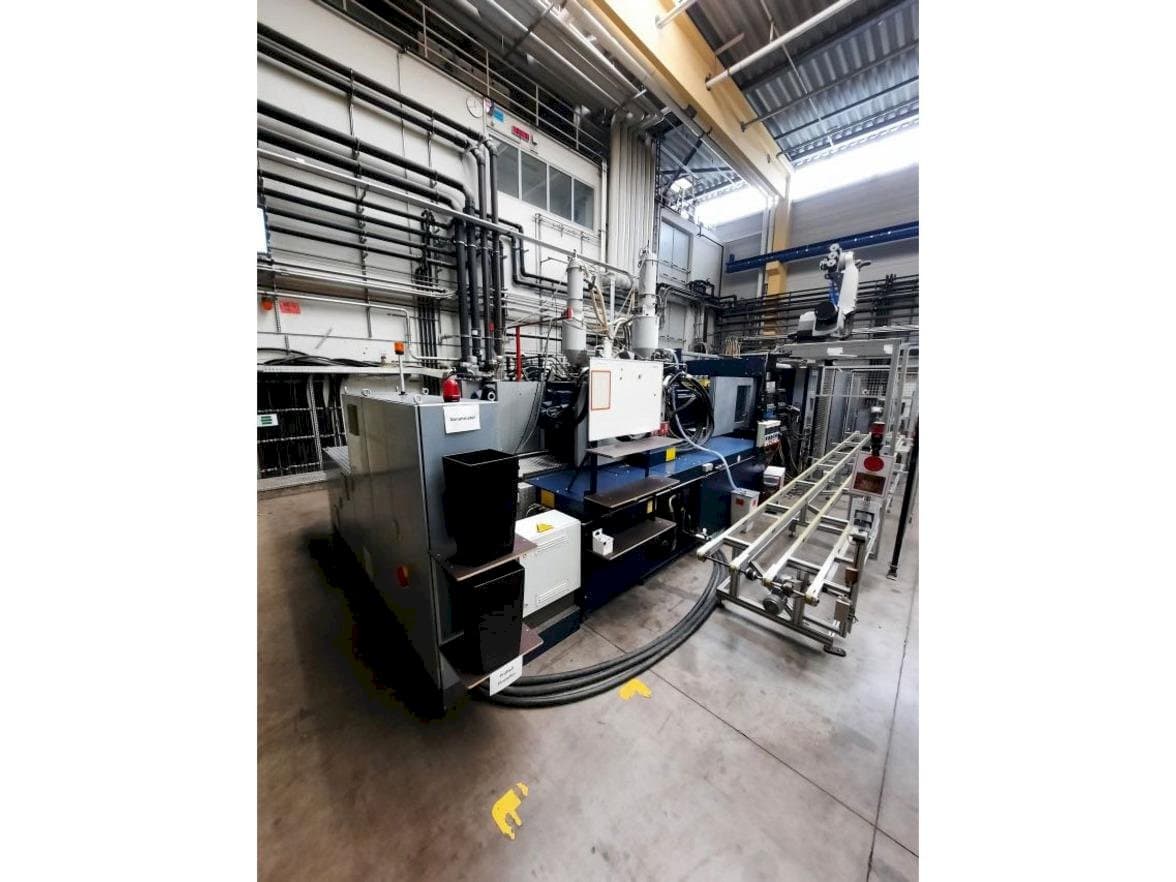

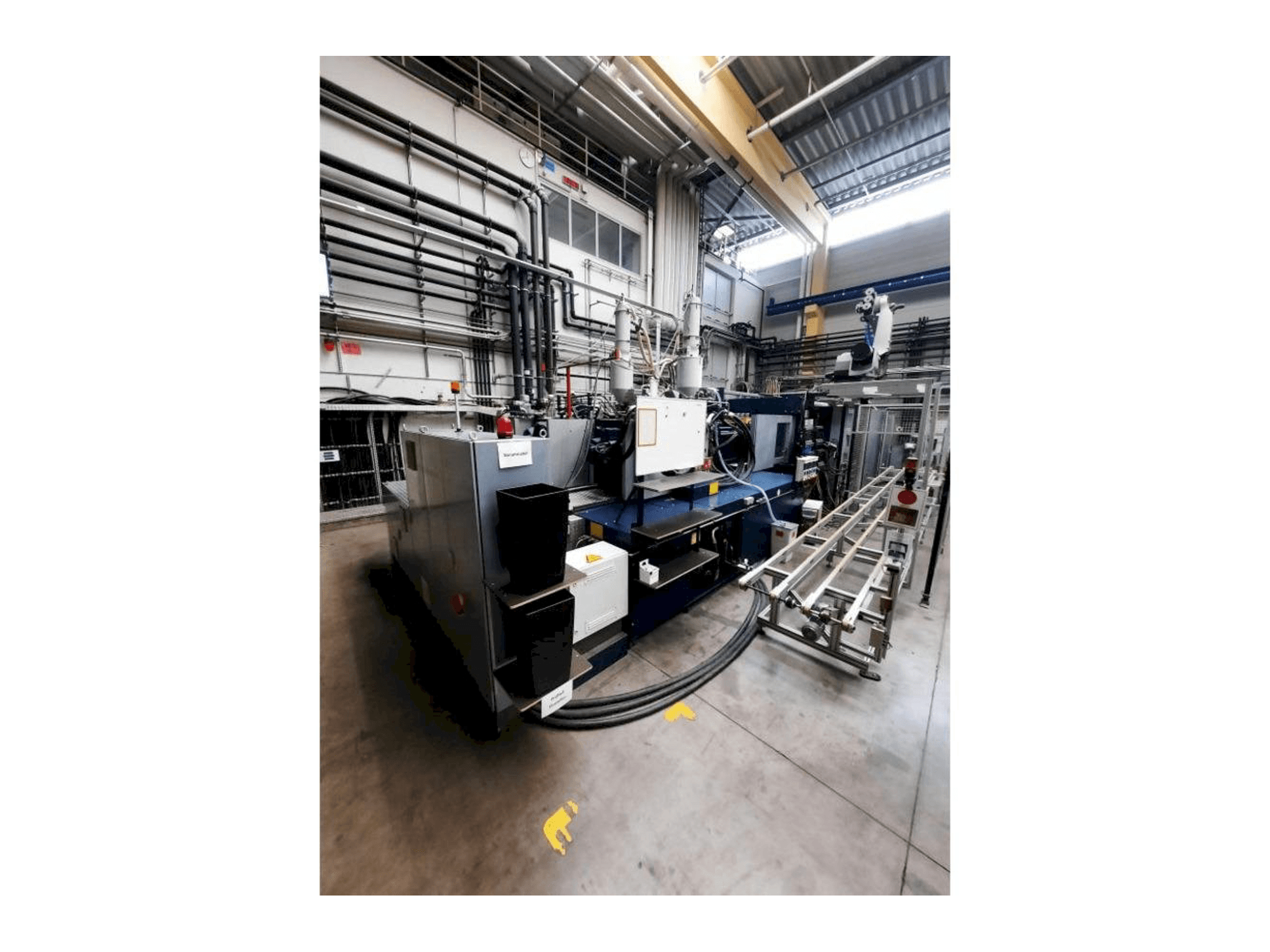

This Battenfeld HM 13000/9200/7700 Injection moulding machine was made in 2004 in Germany and has 67871 hours. The machine has a clamping force of 13000 kN and a screw diameter of 120 mm.
Overview
- brand: Battenfeld
- year: 2004
- MODEL: HM 13000/9200/7700
- production hours: 67871
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Immediately
Technical Information - Battenfeld HM 13000/9200/7700
General Data
- Measurements width: 7375 mm
- Measurements depth: 3010 mm
- Measurements height: 2535 mm
- Machine weight: 82500 kg
Injection Unit
- Screw diameter: 120 mm
Clamping unit
- Clamping force: 13000 kN
- Opening stroke: 2200 mm
- Max open daylight: 4000 mm
- Distance between bars: 1600 mm
- Mould height min: 1000 mm
- Mould height max: 1800 mm
- Size of mold platens: 1120x1120 mm
- Ejector stroke: 350 mm
Additional Information
- Technical Machine Benefits:
- - Unit a: maximum injection speed: 1142 ccm/s maximum pressure : 1633 bar
- - Unit b: maximum injection speed: 793 ccm/s maximum pressure: 1960 bar
- Qualitative Machine Benefits:
- - 2 injection units
- - Complete valve gate cylinder sealed -e motor pump 1 overhauled -preload valve pump 2 replaced -e motor pump 3 overhauled
- - Working filter 1+2 renewed
- - Hoses replaced
- - Needle pack reconditioned
- - Preload valve pump 4 replaced
- - All pumps calibrated by battenfeld technician 82413 hrs
- - Working filter 1+2 renewed
- - Hydraulic hoses replaced at 84428 hrs
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
