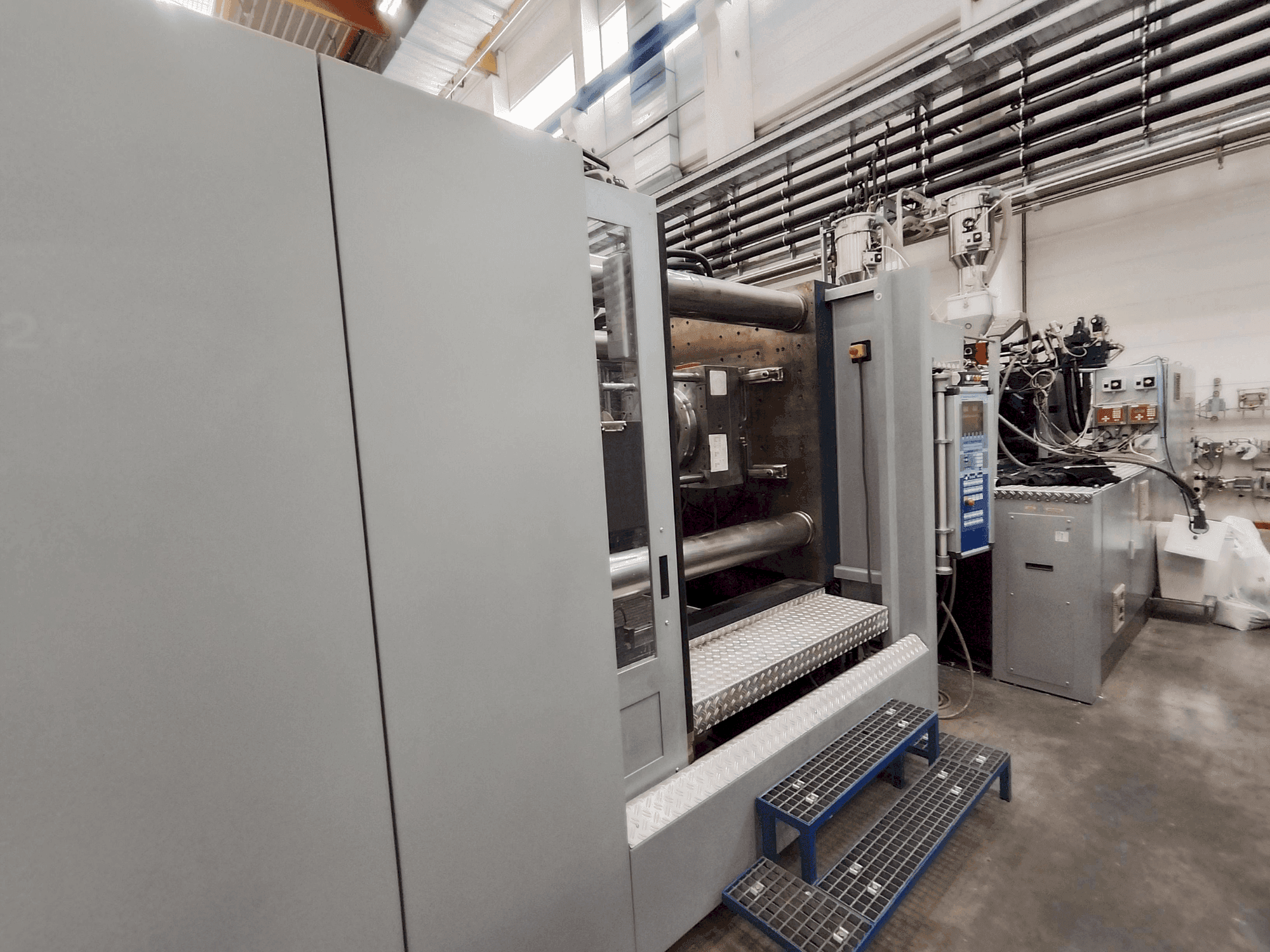

This Battenfeld HM 8000/4500 + 4500 BMB 4 was manufactured in 2006. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this Battenfeld HM 8000/4500 + 4500 BMB 4 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Battenfeld
- year: 2006
- MODEL: HM 8000/4500 + 4500 BMB 4
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Battenfeld HM 8000/4500 + 4500 BMB 4
Injection Unit
- Screw diameter: 100 mm
Clamping unit
- Clamping force: 800 t KN
- Max open daylight: 2225 mm
- Distance between bars: 1120 mm
- Mould height min: 500 mm
- Mould height max: 1175 mm
- Size of mold platens: 784 mm
- Ejector stroke: 250 mm
Additional Information
- Technical Machine Benefits:
- - Injection units: 2 // injection capacity 1: 3338 cm³ // injection capacity 2: 2412 cm³
- - Platen size vert: 1530 mm
- - Centering ring: 250-250 mm
- - Clamping screws: m24
- - Nozzle radius: r40 mm
- - Mold weight max: 8520 kg
- - Type ejector connector: bfa standard
- - Core puller: 3/1
- - Cooling circuit: 12/12
- - Needle catch: 12
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
