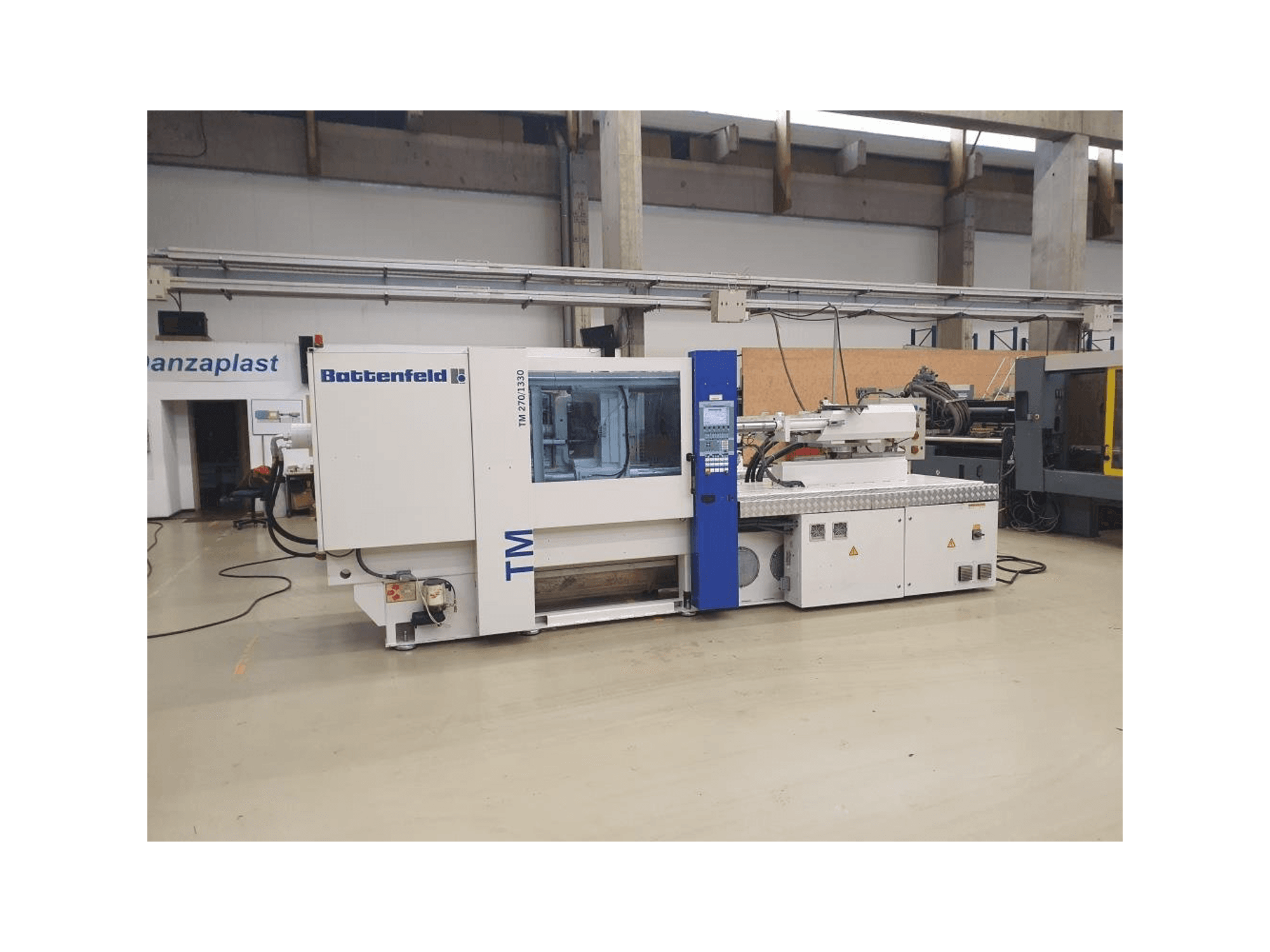

Front view of Battenfeld TM 2700 / 1330 B4  machine

Battenfeld TM 2700 / 1330 B4

Battenfeld - TM 2700 / 1330 B4

2006

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Battenfeld TM 2700 / 1330 B4 Injection moulding machine was made in 2006 in Austria and has 29624 production hours. The machine has a clamping force of 2700 kN. It includes a Robot Interface Euromap 67.

Overview

  • brand: Battenfeld
  • year: 2006
  • MODEL: TM 2700 / 1330 B4
  • production hours: 29624
  • application type: Injection Moulding
  • Location: Belgium
  • machine type: Injection Moulding Machines
  • availability: Sold
  • GINDUMAC ID: BE-INJ-BAT-2006-00001

Technical Information

General Data

  • Measurements width: 1700 MM
  • Measurements depth: 5800 MM
  • Measurements height: 2300 MM
  • Machine weight: 10800 kg

Injection Unit

  • Screw diameter: 65 mm
  • Shot weight: 831 g
  • Stroke volume: 913 CM³
  • Injection pressure: 1461 bar
  • Plasticizing rate max.: 46,2 g/s
  • Screw speed: 207 1/min
  • Heating capacity: 20,9 kW
  • Adjustable heating zones: 1+4
  • Nozzle pressure: 100 kN

Clamping unit

  • Clamping force: 2700 kN
  • Opening stroke: 600 mm
  • Max open daylight: 1250 mm
  • Distance between bars: 630 mm x 630 mm
  • Mould height min: 250 mm
  • Mould height max: 650 mm
  • Size of mold platens: 940 mm x 940 mm
  • Ejector stroke: 600 mm
  • Ejector force for / back: 59 kN

Media

  • Pump drive power: 37 Kw
  • Oil tank: 550 L

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tiebar pulling manual
      • - 2 x core hydraulic
      • - 2 x air valve
      • - 16 x hotrunner controllers
      • - Anti vibration pads
      • - Robot interface euromap 67

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
