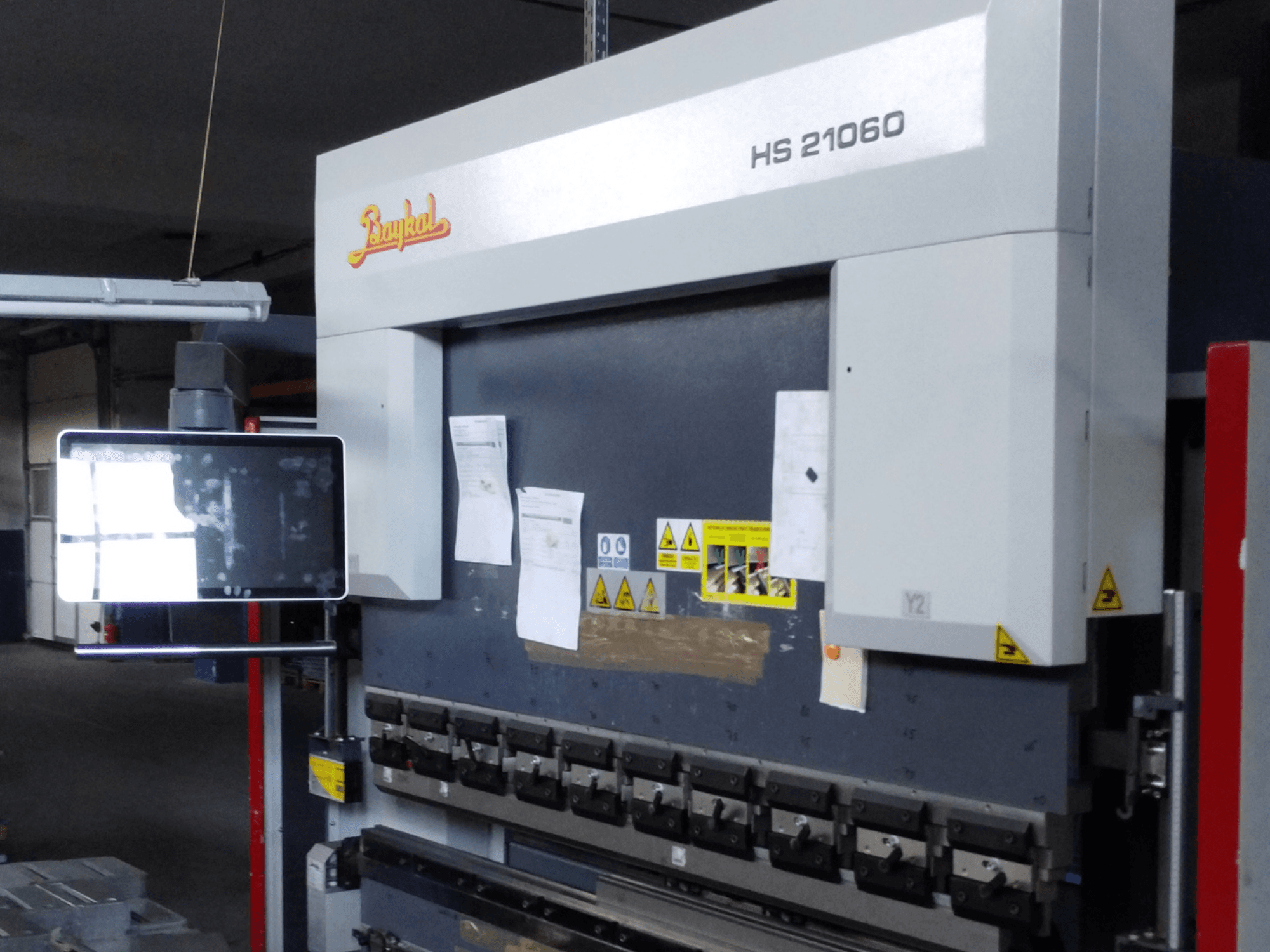

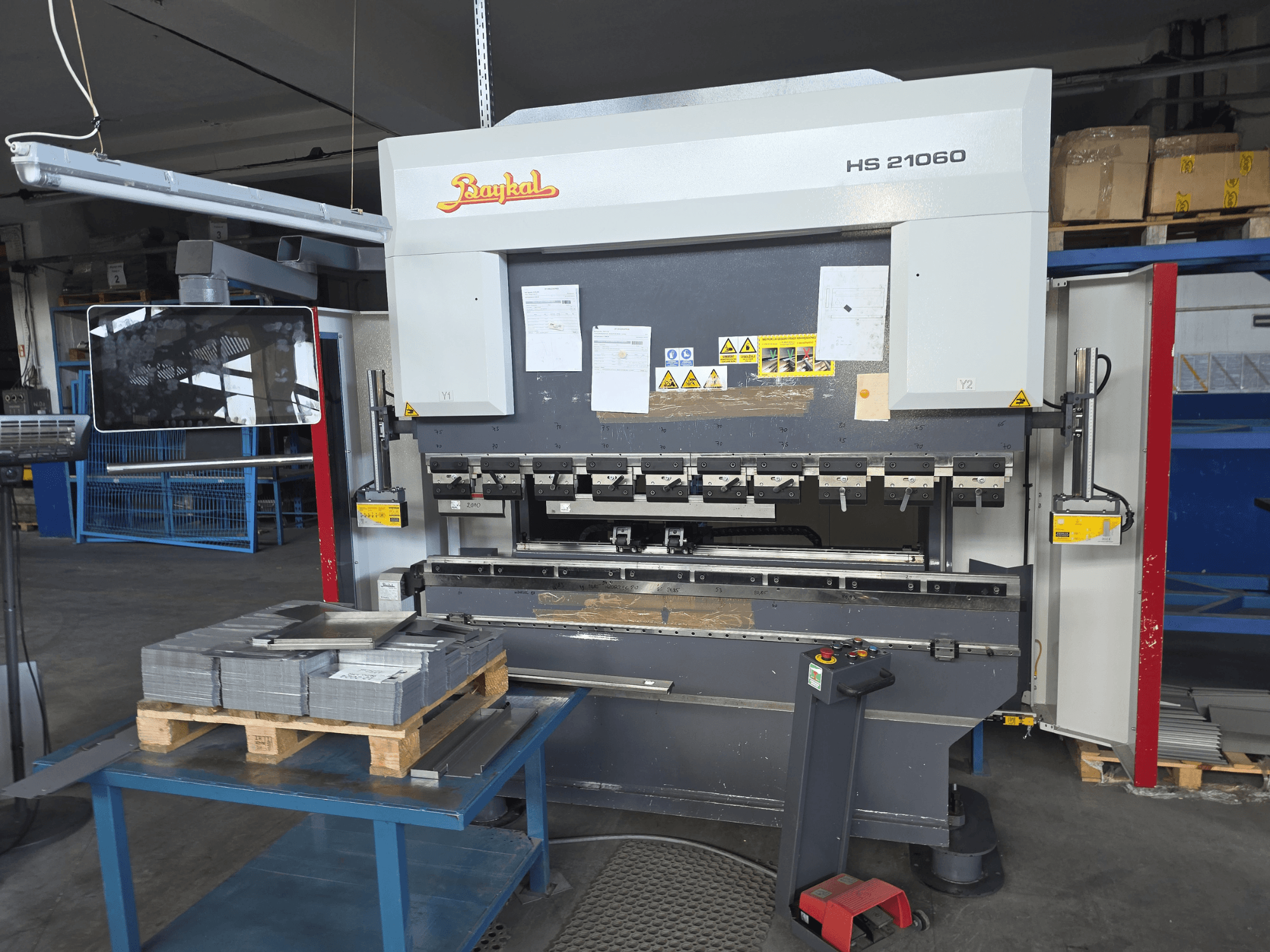

Baykal - APHS 21060 PL-BEN-BAY-2021-00003

• Performance and capacity:

  • Distance between columns: 1600 mm

  • Throat depth: 410 mm

  • Daylight opening: 475 mm

  • Stroke of ram: 210 mm

  • Table width: 60 mm

  • X-axis travel: 1000 mm

  • Backgauge axis: Y1, Y2, X, R, Z1, Z2 + crawling

• Hydraulics and drive:

  • Hydraulic pressure: 265 bar

  • Oil capacity: 140 liters

  • Main motor power: 10.3 kW

  • Installed power: 11 kW

  • Power supply: 400 V / 50 Hz / 3 Ph

• Other:

  • Maximum stopping time: 80 ms

Additional equipment

• Upper tool, 57 kg

• Lower tool, 87 kg
