- ➤ Used Baykal APHS 31120 - Press For Sale | gindumac.com

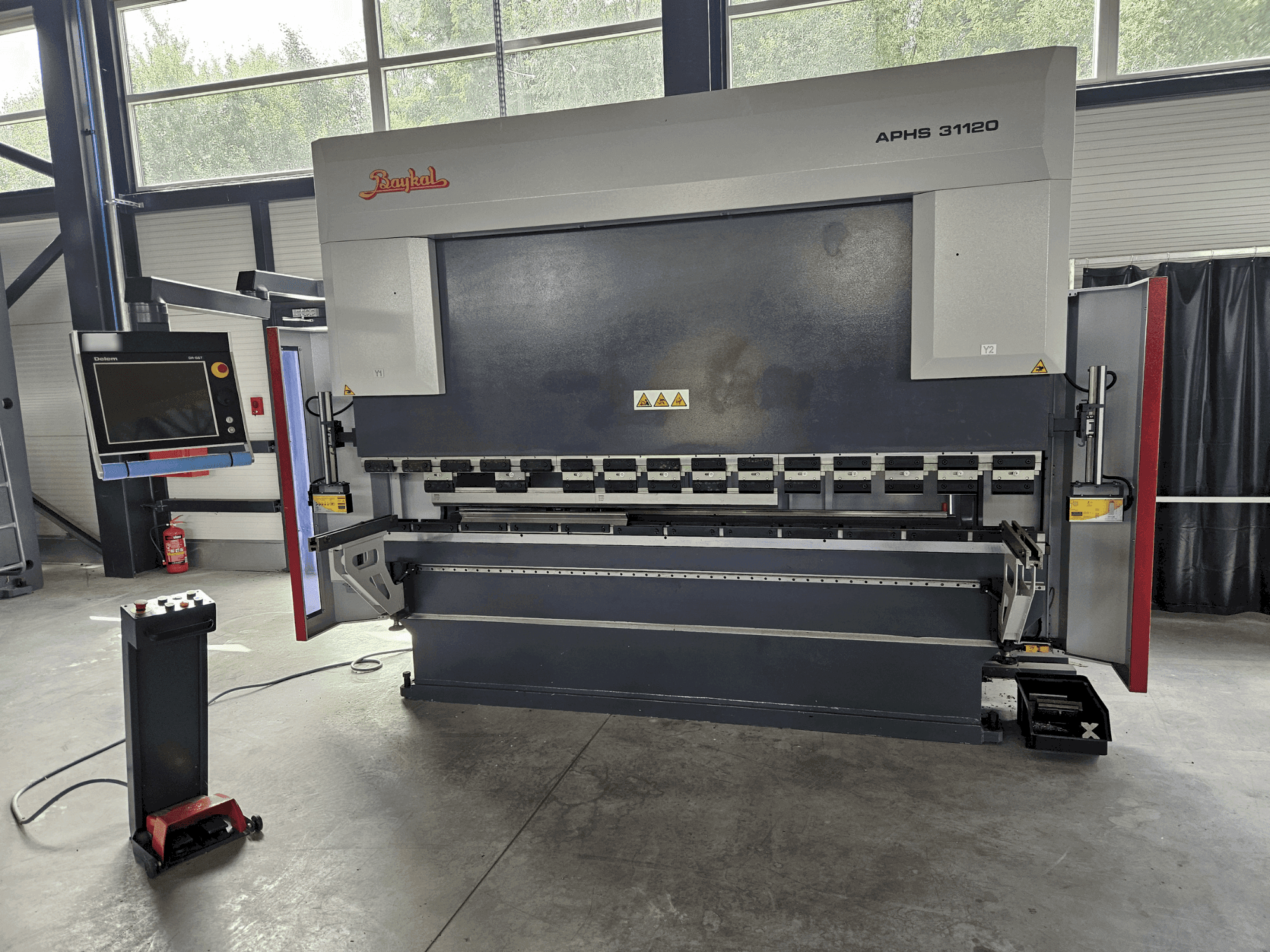

This 4-axis Baykal APHS 31120 press brake was manufactured in 2020. It features a 120-ton press force, a bending length of 3100 mm, and a Delem 66t CNC control unit for precise operations. The backgauge X range extends to 1000 mm, and it includes European clamping with a sectioned punch and die. Consider the opportunity to buy this Baykal APHS 31120 press brake. Contact us for more information about this machine.
Overview
- brand: Baykal
- year: 2020
- MODEL: APHS 31120
- application type: Bending
- Location: Poland
- machine type: Press Brake
- control unit brand: DELEM
Technical Information - Baykal APHS 31120
General Data
- Measurements width: 1850 mm
- Measurements depth: 3850 mm
- Measurements height: 2675 mm
- Machine weight: 8400 kg
Control Unit
- Brand: DELEM
- Model: DA-66T
Main drive
- Pressing force: 120 ton KN
- Bending length: 3100 mm
- Stroke: 260 mm
- Number of axis: 4
Clamping unit
- Max open daylight: 530 mm
Media
- Oil tank: 140 liters
General Data
- Measurements width: 1850 mm
- Measurements depth: 3850 mm
- Measurements height: 2675 mm
- Machine weight: 8400 kg
Control Unit
- Brand: DELEM
- Model: DA-66T
Main drive
- Pressing force: 120 ton KN
- Bending length: 3100 mm
- Stroke: 260 mm
- Number of axis: 4
Clamping unit
- Max open daylight: 530 mm
Media
- Oil tank: 140 liters
Additional Information
Additional equipment
- AC brushless servo driven backgauge with ballscrews
- Proportional valve hydraulics: Rexroth or Hoerbiger
- Precision linear scale measurement: Heidenhain or Givi Misure

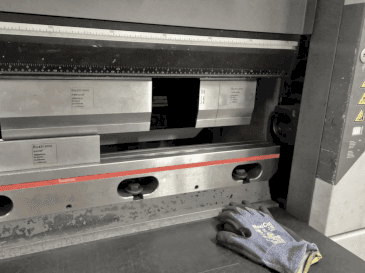

- European clamping system with 85° sectioned punch and 4-V die
- Double footswitch console
- Electrically interlocked side guards
Machine Benefits
Technical Machine Benefits
- System pressure: 280 bar
- 4-axis press brake (y1, y2, x, r)
- Distance between frames: 2550 mm
- Throat gap: 410 mm
- Max. Stroke adjustment: 260 mm
- Backgauge x range: 1000 mm (x and x-r types)
- Backgauge fingers: 2 pcs
- Cnc crowning wedges on bottom table
- Tooling is included in the offer
- Excellent condition, almost like new
Extra Information
Movement Approach Speed: 160 mm/s Working Speed: 10 mm/s Return Speed: 130 mm/s Table Width: 60 mm Voltage: 400 V / 50 Hz / 3 Ph Delem 66t color graphical Windows CNC control unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to Baykal APHS 31120
Xpert 400/4100
Bystronic - Press Brake
MASTERFAB-2600-80
Other - Press Brake

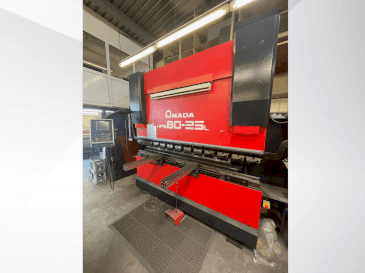

HFE 80-25 L
AMADA - Press Brake
APHS 31440
Baykal - Press Brake

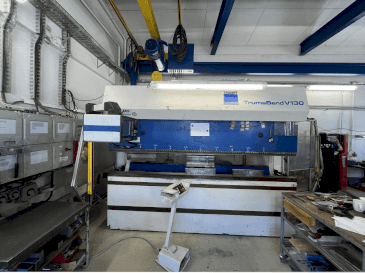

TrumaBend V130
TRUMPF - Press Brake
TrumaBend V85
TRUMPF - Press Brake
Xpert 40/1030
Bystronic - Press Brake

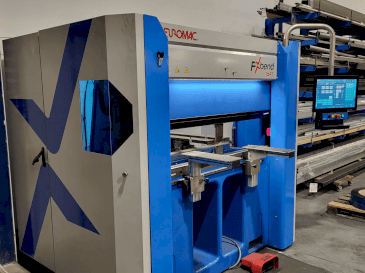

FXbend 1547
Euromac - Press Brake
APHS 41600
Baykal - Press Brake

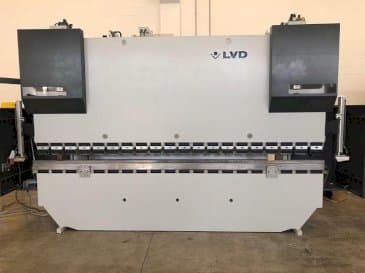

PPEB 170/40
LVD - Press Brake

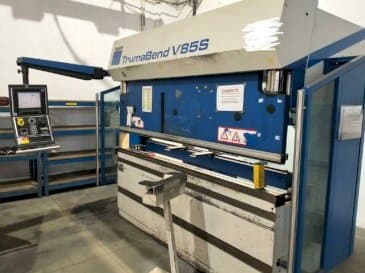

TrumaBend V85S
