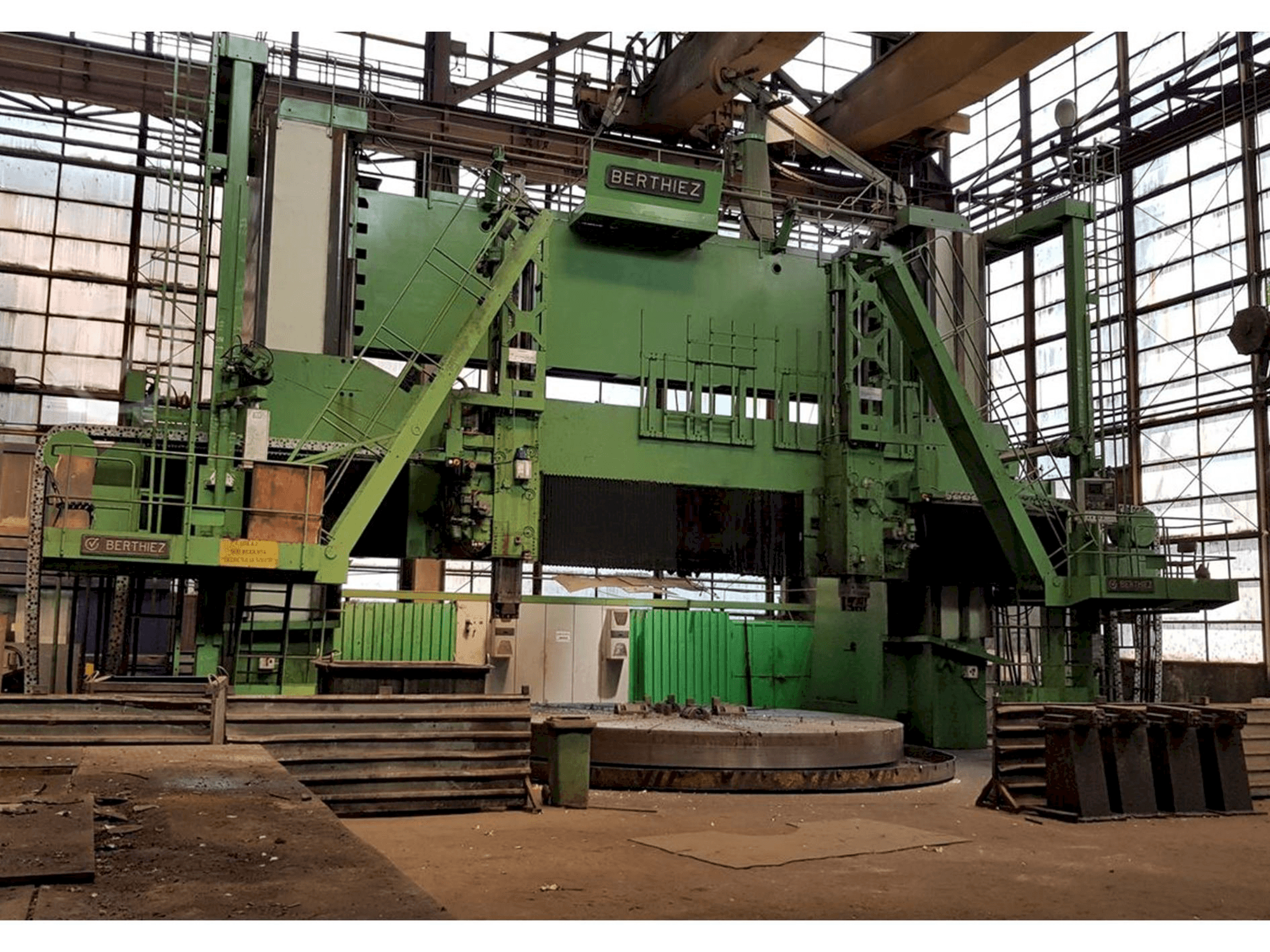

Front view of Berthiez TDM 630-315 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Berthiez TDM 630-315

Berthiez - TDM 630-315RO-TUR-BER-1978-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
BERTHIEZ TDM 630-315 Lathe machine

This BERTHIEZ TDM 630-315 Lathe machine was built in Romania in the year 1978. This machine is equipped with a Siemens Sinumerik 840D control unit. It can work with a spindle speed up to 1000 rpm. The machine was retrofitted in 2010 and upgraded with Siemens CNC with C axis and milling possibility.

Overview

brand: Berthiez
year: 1978
MODEL: TDM 630-315
application type: Turning
Location: Romania
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Berthiez TDM 630-315

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 1000 1/MIN
Spindle motor power: 28 KW
Main motor power: 71 KW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning dia. 9700 mm
- - Max. Turning height 4900 mm
- - Face plate dia. 6300 mm
- - Face plate speed range 0,4 - 50 rpm
- - C axis and milling
- - Ram size 360 x 360 mm
- - Max. Weight of workpiece 160 to.

Extra information

- The machine was retrofitted in 2010 and upgraded with Siemens CNC with C axis and milling possibility.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
