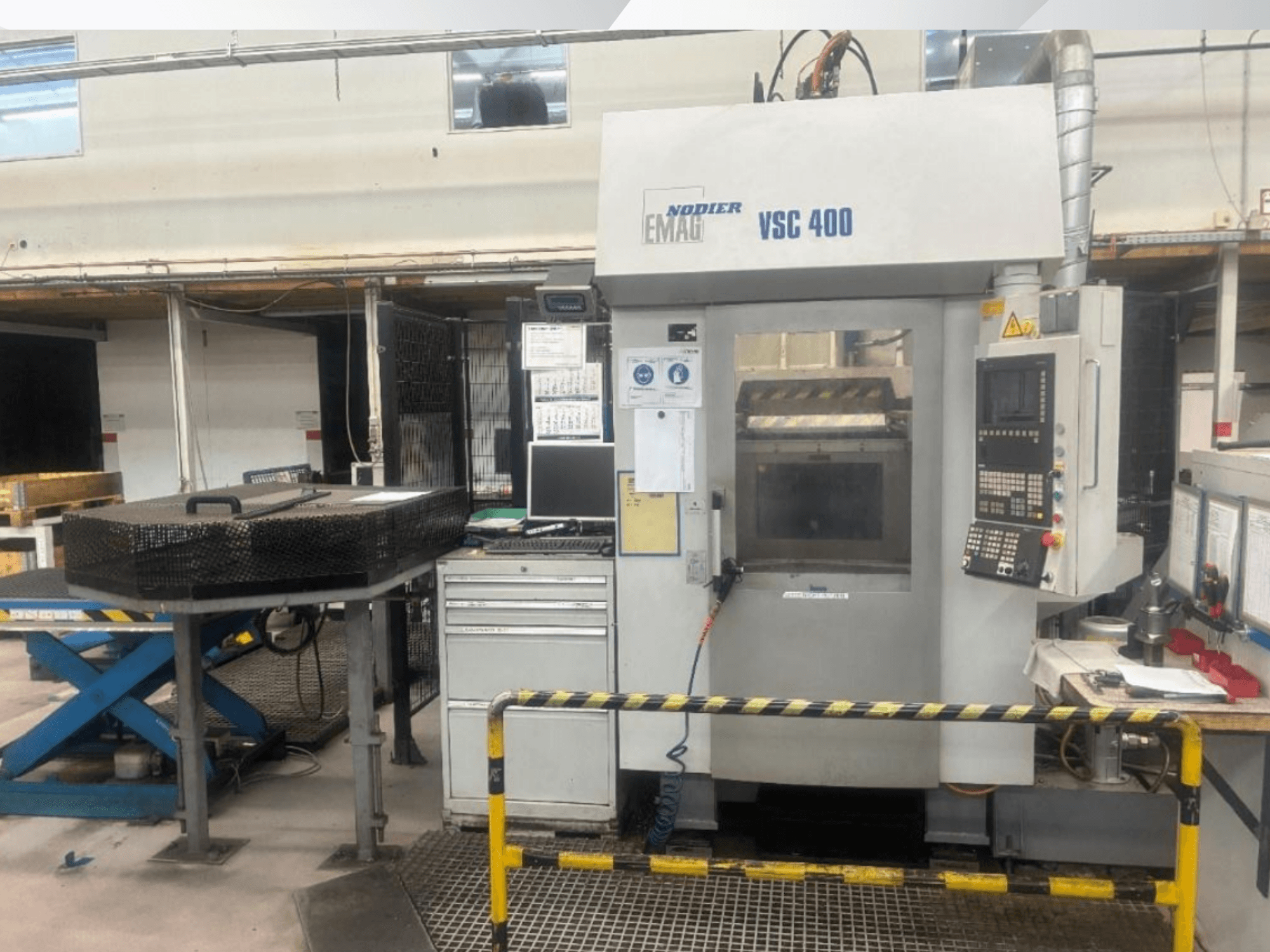

EMAG VSC 400 vertical turning machine front view, featuring control panel, safety barriers, and surrounding equipment in a well-lit workshop.
EMAG VSC 400 vertical turning machine front view, featuring control panel, safety barriers, and surrounding equipment in a well-lit workshop.

EMAG - VSC 400DE-TUR-EMA-2007-00001

48,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Vertical turning machine manufactured in 2007. This EMAG VSC 400 features a turning diameter of 400 mm and a swing diameter of 420 mm. It offers an X-travel of 850 mm and Z-travel of 315 mm, with a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: EMAG
  • year: 2007
  • MODEL: VSC 400
  • application type: Turning
  • Location: Germany
  • machine type: Vertical Turning Machine

Technical Information - EMAG VSC 400

Dimensions

  • Machine Height: 3000 mm
  • Machine Length: 9500 mm
  • Machine Weight: 9000 kg
  • Machine Width: 4500 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 850 mm
  • Z-axis Travel: 315 mm

Technical Specification

  • Driven Tools: No
  • Spindle Power: 58 kW
  • Spindle Speed: 4000 RPM

Additional Information

- Turning Diameter: 400 mm

- Swing Diameter: 420 mm

- Spindle Head: DIN 55026 - Size 11

- Spindle Bearing Diameter: 140 mm

- Rapid Traverse X + Z Axes: 45 / 30 m/min

- Feed Force Z/X: 11 kN

- Total Power Requirement: 58 kW

- Installed Power (Nameplate): 54 kW

- Frequency: 50 Hz

- Voltage (Power): 400 V

- Control Voltage: 230 V

- Nominal Current: 104 A

- Cos Phi: 0.83

- Fuse Protection: 125 A

- Features: Hard turning, Dry machining, Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
