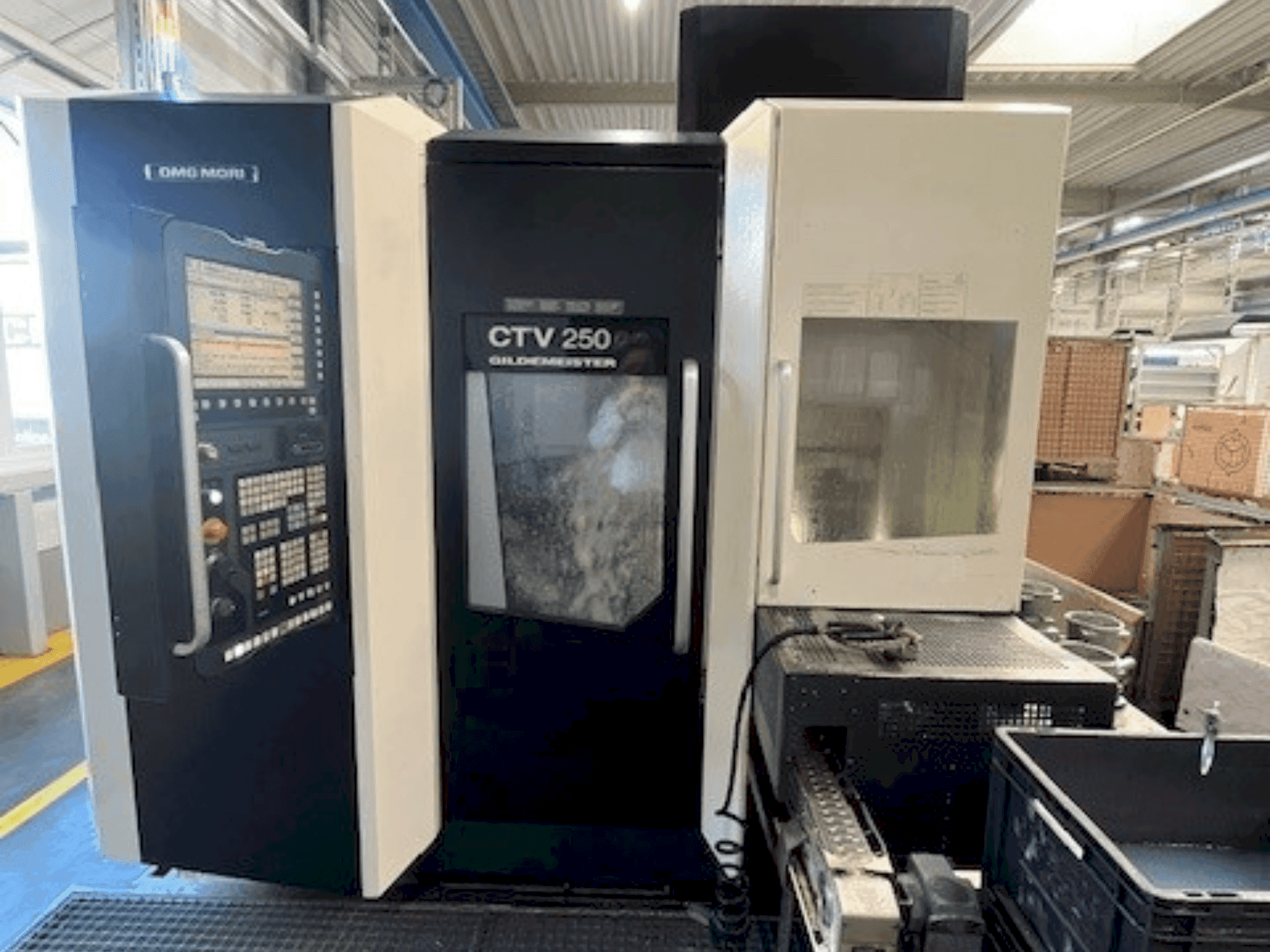

DMG MORI - Gildemeister CTV 250 2ndDE-TUR-DMG-2016-00003

Additional equipment

• shopturn option

Machine Benefits

Technical Machine Benefits

• Availability from 01/07/2025

• Weight: 6000kg

• 40 kVA

• 58 A In max

• 63 A

• 400 V

• 50 Hz

• Control system: Siemens Sinumerik 840D Slimline

• Main drive: AC main drive 25 / 32 kW

• Duty cycle: 100% / 40% ED

• Spindle speed: 5000 rpm

• Torque: 280 / 360 Nm

• Hollow clamping cylinder

• 12-position turret with tool holder

• Turret diameter: 340 mm

• Hinged belt chip conveyor

• 4-color status signal light

• Air blow through main spindle

• C-axis with driven tool system for turret UDI 40

• Drive for all tool stations

• Y-axis travel +90 / −65 mm

• Linear guideway system

• Ball screw spindle

• AC servo motor with integrated absolute encoder

• Glass scale on guideways

• Rapid traverse speed: 30 m/min

• Coolant system 8 / 20 bar

• Coolant tank capacity: 600 liters

• Coolant pump flow rate: 8 bar / 20 l/min

• High-pressure pump flow rate: 20 bar / 40 l/min

• Coolant supply via turret disk to all turret stations

• Band filter system filtration grade: 40 µm

• Coolant level monitoring

• Integrated working area extraction max. 400 m³/h

• Workpiece probe Renishaw LP2DD

• Probe installed at loading and unloading station

• Stylus with pneumatically actuated flap and electrical control

• Measuring accuracy: 10 µm

• Function plate for additional tools

• Machine cabinet temperature control max. 40°C

• Electrical cabinet cooling unit up to 40°C

• Hydraulic oil cooler

• Remote diagnosis support via internet

• Working area flushing with 3 flushing screw connections

• Two separately switchable valves with 8 bar pressure

• Workpiece discharge conveyor for part transport system SRA 160

• Workpiece diameter: 100 mm

• Continuous workpiece transport system SRA 160 in drag chain design

• Storage capacity: 30 workpieces diameter 30–70 mm max 7 kg

• Storage capacity: 18 workpieces diameter 30–100 mm max 15 kg

• Maximum workpiece height: 160 mm

• Maximum total workpiece weight: 320 kg including pallets

• Loading height approx. 800 mm

• Chain conveyor belt with transport prisms

• Drag chain movement controlled by NC axis

• Set of drag frames

• Workpiece diameter minimum 30 mm maximum 160 mm

• Light barrier for workpiece transport system pick-up station

• Hold-down device for loading pallets SRA 160

• Robot interface Profinet

• Electrical interface for 6-axis robot via Profinet

• Power chuck centering and face clamping chuck

• Intermediate storage tray supported on function plate

• Air blow cleaning for inner workpiece area

• Measuring probe with air blow with two nozzles front and rear

• Clamping pressure adjustment with motor-controlled valves

• Clamping pressure programmable via NC program

• Extension of chip discharge chute on chip conveyor by 300 mm

• Aluminium machining package

• Modified slurry pump on chip conveyor

• Forced indexing of band filter

• Larger chip container

• Extension of plug-in screens from chip conveyor

• 3D data model of machine working area in STEP and IGES format

• Delivery of 3D model on CD

• PLC / SPS source code including hardware configuration of Siemens control in English

• Drawing for oil pan for standard base machine

• Spindle hours 18,071

Extra Information

Machine still under power
