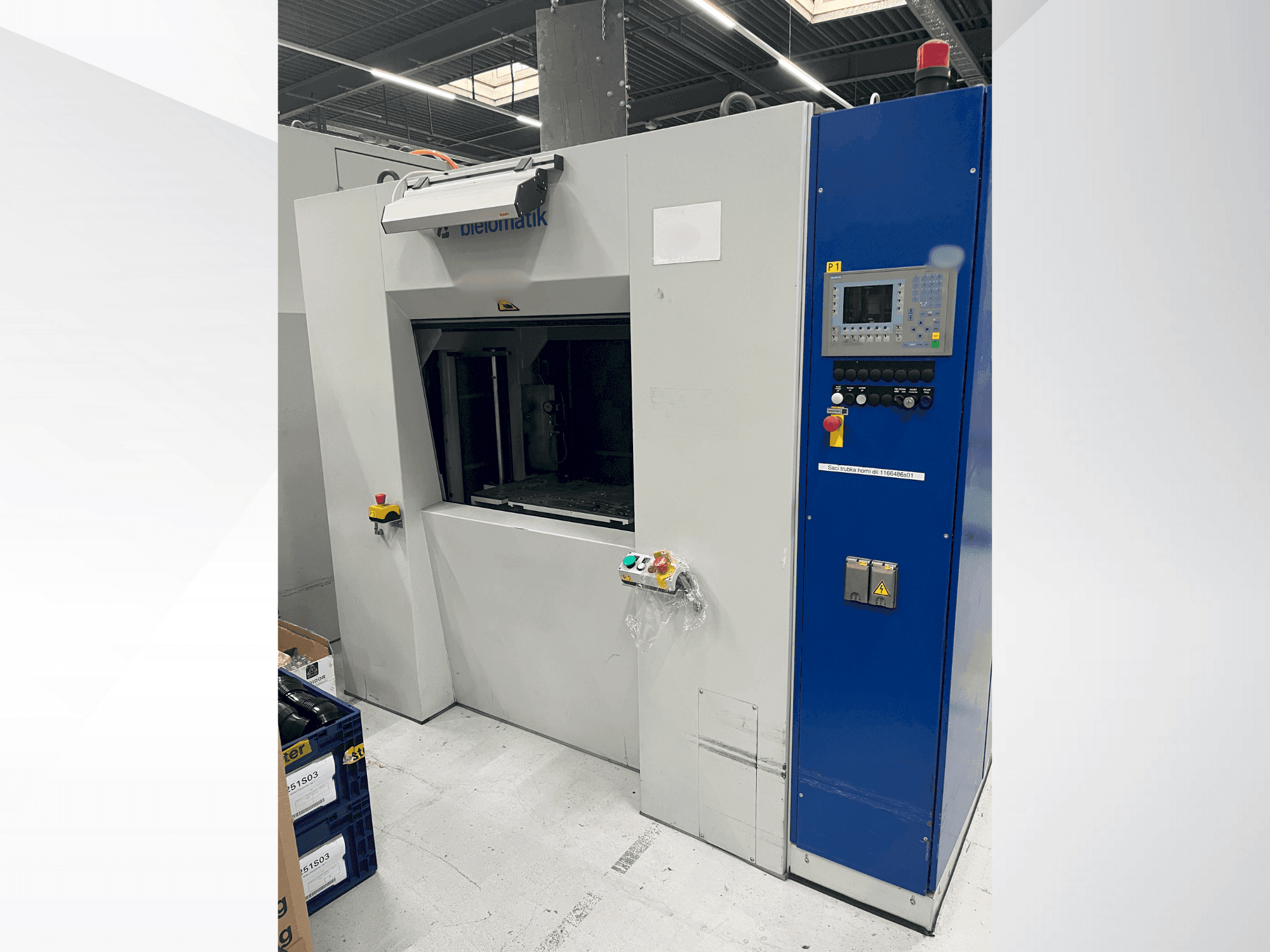

This Bielomatik K3212 was manufactured in 2014. A robust sheet metal machinery, it offers reliable performance for your sheet metal needs. Ideal for those looking to enhance their sheet metal capabilities with a proven machine. Contact us for more information.
Overview
- brand: bielomatik
- year: 2014
- MODEL: K3212
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Sheet Metal Machine
- availability: Immediately
Technical Information - bielomatik K3212
General Data
- Measurements width: 1800 MM
- Measurements depth: 2600 MM
- Measurements height: 2325 MM
- Machine weight: 4000 KG
Additional Information
- Technical Machine Benefits:
- - Rated voltage: 3 phases / 380 v
- - Frequency: 50 hz
- - Full-load current: 25 a
- - Fuse protection power supply: 32 a
- - Short circuit breaking capacity: 10 ka
- - Power equipment: 17 kva
- - Control voltages: ac 230 v / dc 24 v
- - Floor space required: approx. 5600 x 4800 mm
- - Lift table (vertical stroke): max. 500 mm
- - Opening width: max. 705 mm
- Qualitative Machine Benefits:
- - Clamping area of the lift table: max. 920 mm x 530 mm
- - Clamping area of the vibration unit: max. 900 mm x 540 mm
- - Amplitude (setpoint): 0. 3–1. 2 mm with a resolution of ± 0. 01 mm
- - Tolerance, adjustable in steps: ± 0. 1 mm to ± 0. 4 mm
- - Frequency range: approx. 170 hz – 240 hz
- - Welding force: max. 11400 n
- - Drive forces: up to max. 2 x 10700 n
- - Amplitude must be set approximately 0. 2 mm smaller than the minimum clearance of the welding parts to prevent damage to the vibration unit.
- - Cycle times depend on several factors, including the quality and uniformity of the welding parts, machine maintenance, and the availability of welding parts.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
