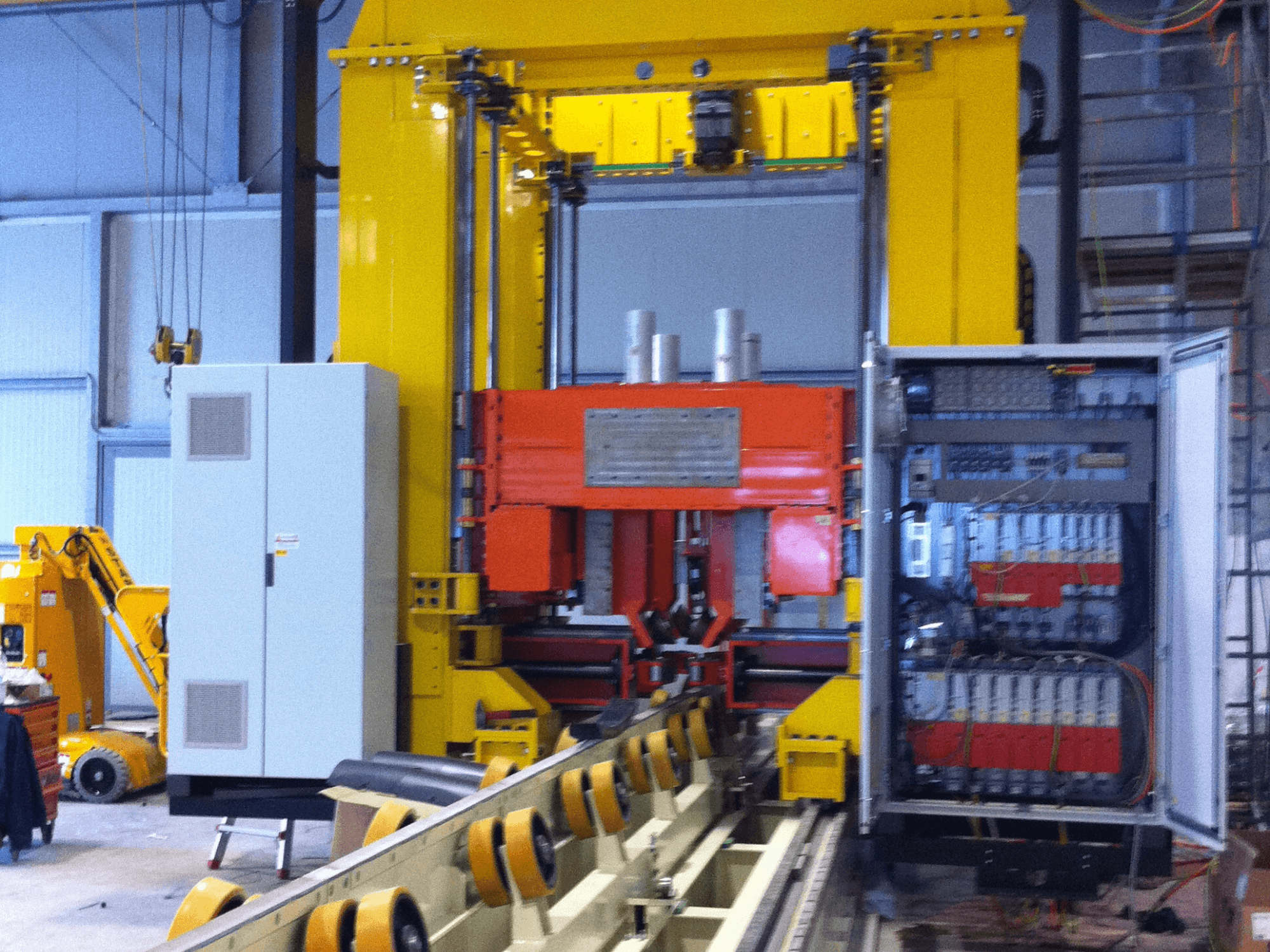

Laser welding machine manufactured in 2014. This RONDA IMPIANTO CHIUSURA E SALDATURA LASER is designed for tube processing, currently configured for TIG welding and tack welding operations. It features a tube diameter range of 219 – 1,500 mm and a tube thickness of 3 – 12 mm. The machine operates with 8 pushers and is controlled from an external workstation. If you are looking to get high-quality welding capabilities, consider the RONDA IMPIANTO CHIUSURA E SALDATURA LASER machine we have for sale. Contact us for further details.
Overview
- brand: RONDA
- year: 2014
- MODEL: IMPIANTO CHIUSURA E SALDATURA LASER
- application type: Welding
- Location: Italy
- machine type: Laser Welding Machine
Technical Information - RONDA IMPIANTO CHIUSURA E SALDATURA LASER
Technical Specification
- Laser Power: 260 kW
Additional Information
Current application: TIG welding / tack welding
Original application: Laser system (currently disabled)
Tube diameter capacity: 219 – 1,500 mm
Tube thickness capacity: 3 – 12 mm
Tube length capacity: 3,000 – 13,000 mm
Working system: 8 pushers (4 lateral + 4 upper)
Torch: TIG torch on front head
TIG wire diameter: 1.2 mm
Shielding gas: Argon
Machine control: External workstation with cycle start
Laser status: Laser element disabled in the current configuration
Additional equipment
Former laser equipment available in stock: laser generator and extractor (can be included in the sale)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
