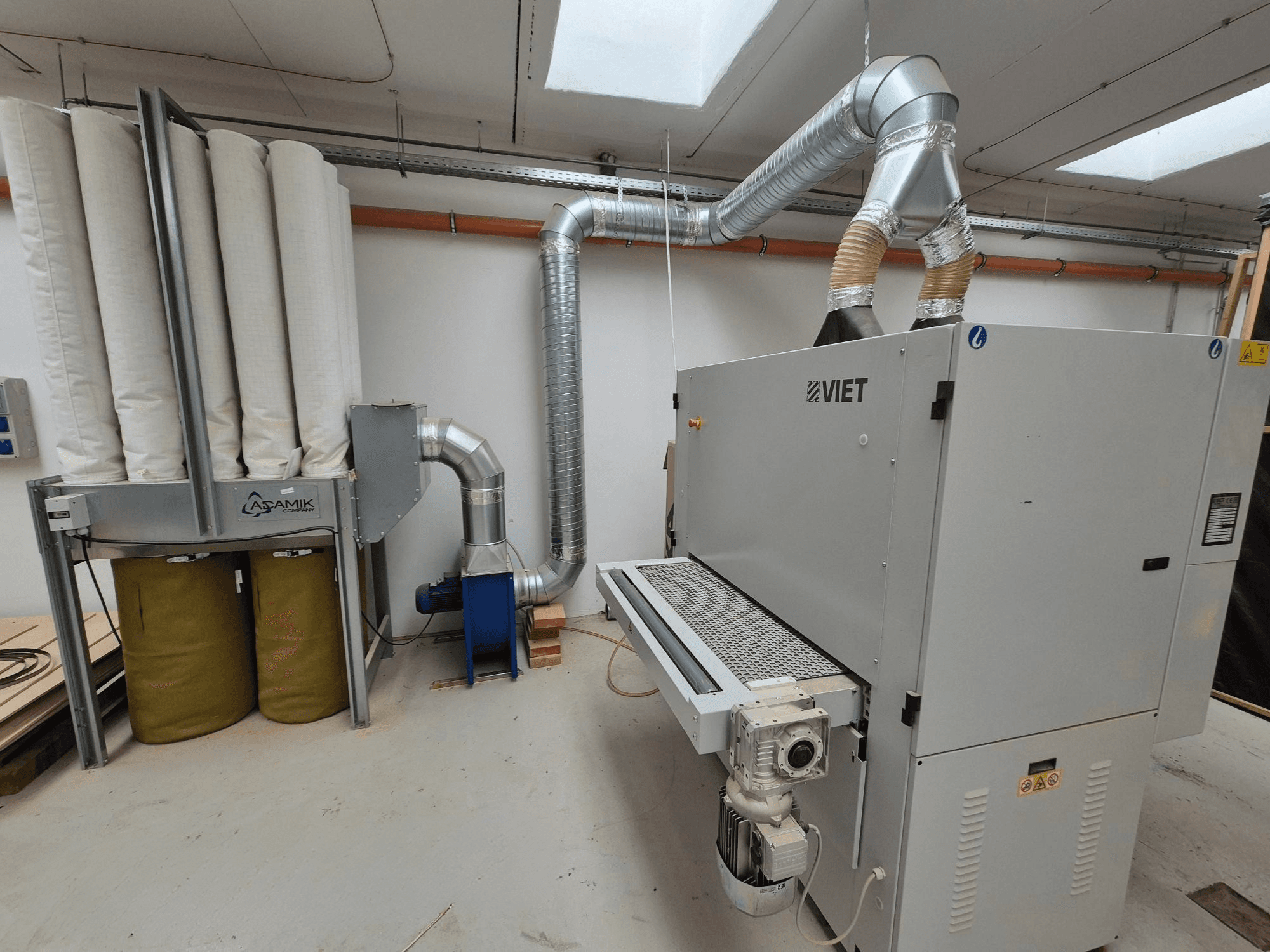

Viet dust extraction system featuring cylindrical filters and a silver exhaust, viewed from the front in a workshop setting.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BIESSE VIET S211 R/KRT

Photo Gallery

BIESSE - VIET S211 R/KRTHU-SAN-BIE-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used BIESSE VIET S211 R/KRT For Sale | gindumac.com

This Biesse VIET S211 R/KRT belt sander was manufactured in 2020. It features a working width of 1,100 mm and can handle material thickness from 3 mm to 160 mm. Equipped with a calibrating roller and a combined roller + pad, it offers adjustable feed speeds from 3 to 16 m/min. Ideal for precise sanding tasks, consider the opportunity to buy this Biesse VIET S211 R/KRT belt sander. Contact us for more information about this machine.

Overview

brand: BIESSE
year: 2020
MODEL: VIET S211 R/KRT
application type: Sanding
Location: Hungary
machine type: Belt Sander

Technical Information - BIESSE VIET S211 R/KRT

Dimensions

Machine Height: 2050 mm
Machine Length: 3685 mm
Machine Weight: 2200 kg

Technical Specification

Working Width: 1100 mm

Additional Information

Working thickness: Min. 3 mm / Max. 160 mm

Sanding units (R/KRT configuration)

1st unit: Calibrating roller (R)
2nd unit: Combined roller + pad (KRT)
Roller diameters: 240 mm / 320 mm
Pad shoe: Electronic segmented pad

Belt dimensions

Sanding belt width: 1,100 mm
Sanding belt length: approx. 1,900 mm

Feed system

Feed speed: 3–16 m/min
Feed motor: Inverter controlled
Conveyor belt motor: approx. 3 kW

Motors

Main sanding motor (roller unit): 11 kW
Main sanding motor (pad/brush unit): 4 kW

Compressed air

Required pressure: 6 bar
Air consumption: approx. 10 Nl/min

Dust extraction

Extraction outlets: Ø 120 mm
Number of outlets: 4
Recommended air speed: 20 m/s

Noise level

Sound pressure level: approx. 70–76 dB(A)

Electrical data

Voltage: 400 V
Frequency: 50 Hz
Phases: 3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
