BLM ADIGE LC5

Photo Gallery

BLM - ADIGE LC5PL-LAS-BLM-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

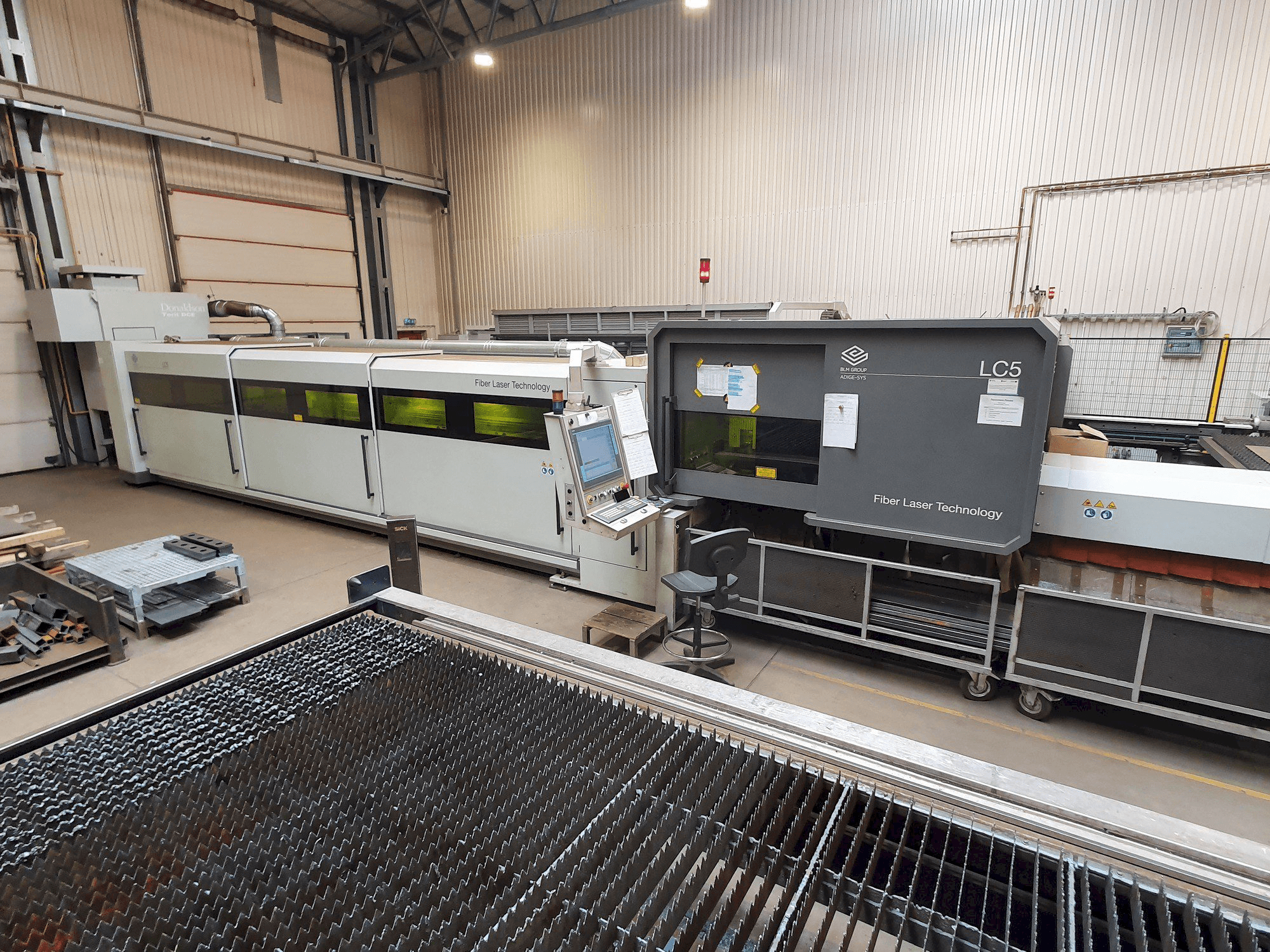

BLM ADIGE LC5 Combi Fiber Laser cutting machine

This BLM ADIGE LC5 Combi Fiber Laser cutting machine for flats and profiles/ tubes was manufactured in 2016 in Italy. This machine has been working for 4238 hours of which 2547 are laser hours. The machine has a laser power of 3 kW and a FIBER IPG YLS-3000-CUTCO2 laser type. Includes software Lantek and an additional postprocessor for Bysoft. The machine is in very good condition and the laser source is under warranty.

Overview

brand: BLM
year: 2016
MODEL: ADIGE LC5
production hours: 4238
application type: Cutting
Location: Poland
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - BLM ADIGE LC5

General Data

Machine weight: 9000 kg

Control Unit

Brand: SIEMENS

Main drive

Laserpower: 3 kW
Laser type: FIBER IPG YLS-3000-CUT
Maximum sheet thickness: 12 mm

Table

Outer length: 3000 mm
Outer width: 1500 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 42 kVA

Additional Information

Additional equipment

software Lantek included
additional postprocessor for Bysoft included

Machine Benefits

Qualitative Machine Benefits

Working hours laser: 2547 h
Machine in very good working condition, ready for tests.
Full documentation available
Laser source is under warranty

Technical Machine Benefits

Cutting tubes: maximum dia. 100 mm
Automatic tubes feeder
Max length of the tubes 6 m
Removable table for sheets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
