LVD - Electra-FL 3015 HU-CUT-LVD-2015-00001

Name: LVD Electra-FL 3015
Brand: LVD
SKU: HU-CUT-LVD-2015-00001
Price: 94000 EUR
Availability: InStock

94,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used LVD Electra-FL 3015 For Sale | gindumac.com

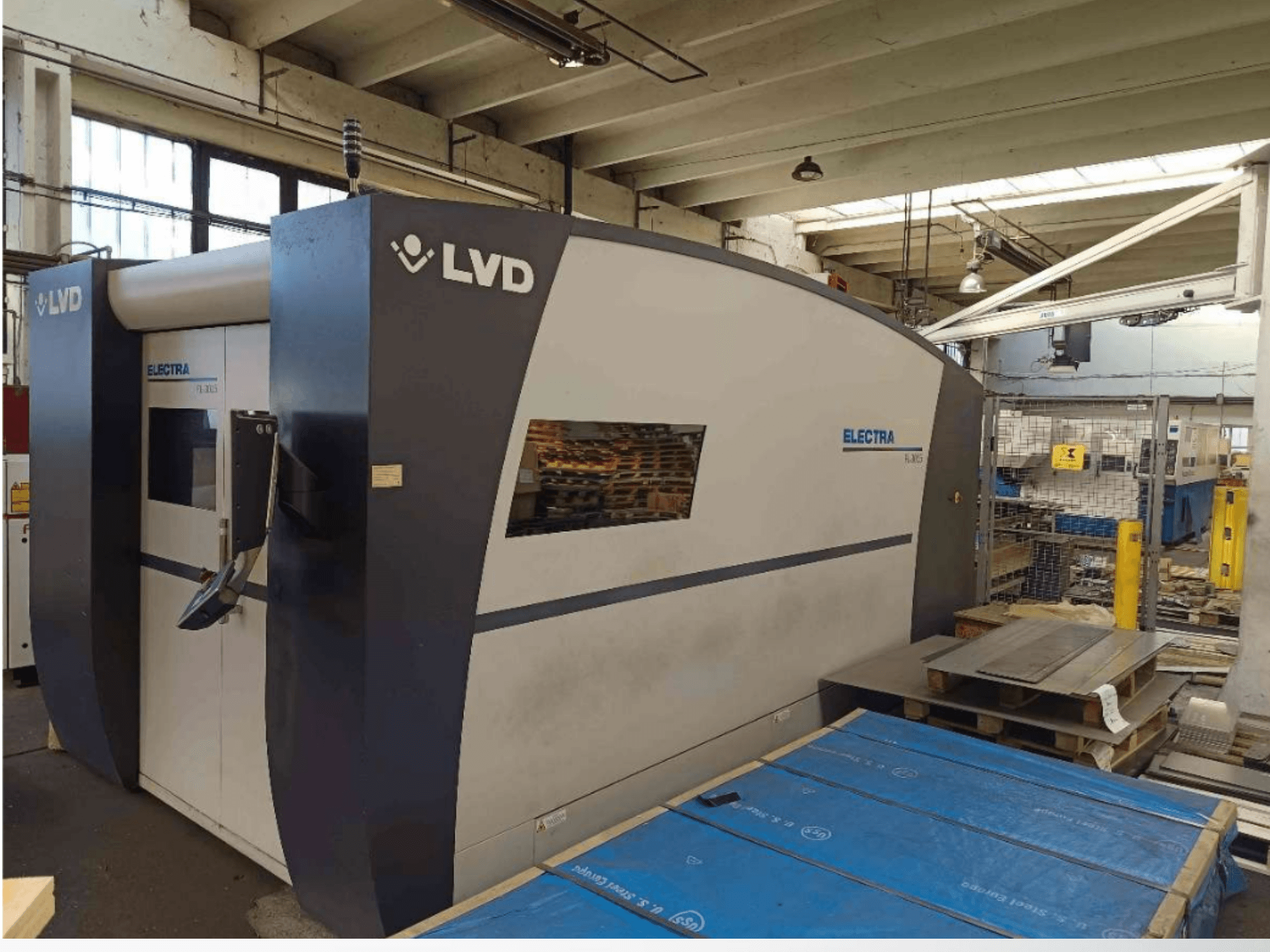

This 3-axis LVD Electra-FL 3015 was manufactured in 2015 and features a 4kW fiber laser by Rofin/Coherent. It includes automatic shuttle tables, a cutting head with lens systems, and automatic functions for nozzle cleaning, height calibration, and gas selection. The machine supports a maximum sheet size of 3050 x 1525 mm and offers high-speed positioning. If you are looking to get high-quality cutting capabilities, consider the LVD Electra-FL 3015 machine we have for sale. Contact us for more information.

Overview

brand: LVD
year: 2015
MODEL: Electra-FL 3015
production hours: 15700
application type: Cutting
Location: Hungary
machine type: Fiber Laser Cutting Machine

Technical Information - LVD Electra-FL 3015

Dimensions

Machine Depth: 4895 mm
Machine Height: 2250 mm
Machine Length: 11000 mm
Machine Weight: 15000 kg

Movement

X-axis Travel: 3080 mm
Y-axis Travel: 1555 mm
Z-axis Travel: 100 mm

Additional Information

Production Hours:
Machine: 15700 hours
Lasersource Laser On Time: 9980 hours
Type: Sinumerik 840Dsl / B&R APC 910
Operating System: Windows® 7 Embedded
Memory Capacity: 4GB RAM / 60GB SSD
Screen: 19” LCD Touch Screen
Network Card: 1Gbit/sec RJ45 Connection
USB Interface: 2 x USB 3.0 on Front Panel
Max. Positioning Speed X-Y: 170 m/min
Max. Positioning Speed Z: 30 m/min
Smallest Programmable Increment: 0.01 mm
Positioning Accuracy: 0.05 mm
Repeatability Accuracy: 0.025 mm
Maximum Sheet Size: 3050 x 1525 mm
Maximum Sheet Weight: 700 kg
Automatic Shuttle Tables
Cutting Head with 5” or 7.5” Lens System
Automatic Nozzle Cleaning and Height Calibration
NC-Focus, Automatic Focal Point Adjustment
Cutting Head with Crash-Protection System
Capacitive Height Sensing
Automatic Cutting-Gas Selection: Oxygen, Nitrogen, Air
Automatic Gas Pressure Control with Servo Valve
Automatic Sheet-Referencing (Laser Eye, Capacitive System)
High Pressure Nitrogen Cutting
TPC Total Power Control, Adapting the Laser Power Relative to the Speed
Chiller & Extraction Filter Included
Light Guards Protecting the Area Around the Shuttle Tables
19” Touch Screen with New User-Friendly Touch®-L Interface
Automatic Start-Up / Shut Down
Tele-Service Available
Built According to the European Safety Regulations Provided with CE-Mark
Automation Ready

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
