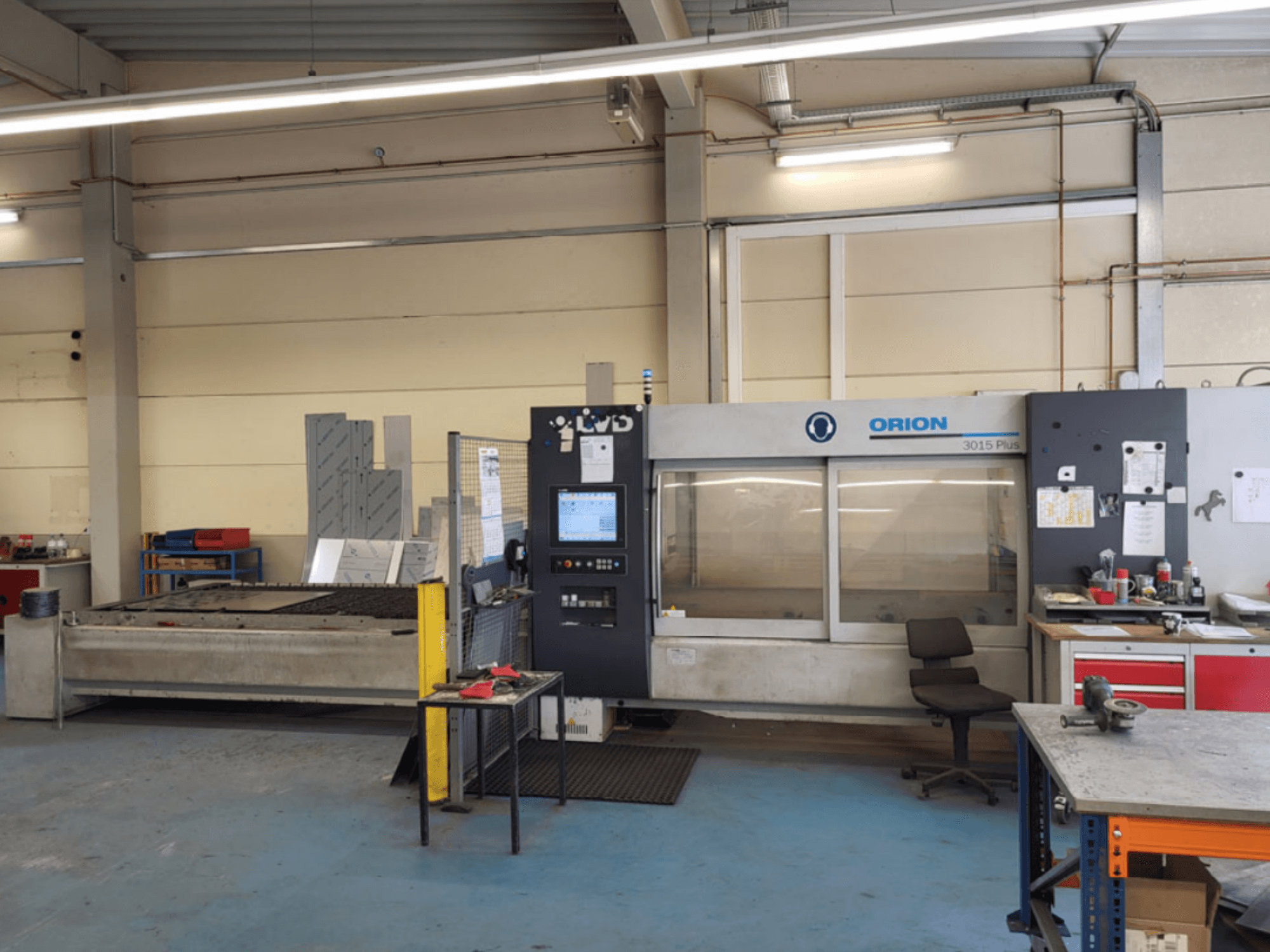

This 3s LVD Orion 3015 Plus was manufactured in 2013. It features a powerful 2500 W Fanuc HF-excited CO₂ laser, capable of cutting various materials with a maximum sheet size of 3000 × 1500 mm and a weight of 570 kg. The machine offers impressive positioning speeds of 100 m/min on the X/Y axes. Consider the opportunity to buy this LVD Orion 3015 Plus fiber laser cutting machine. Contact us for further details.
Overview
- brand: LVD
- year: 2013
- MODEL: Orion 3015 Plus
- production hours: 23323
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- Available from: 14/06/2026
Technical Information - LVD Orion 3015 Plus
Dimensions
- Machine Height: 2200 mm
- Machine Length: 9350 mm
- Machine Weight: 13000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3080 mm
- Y-axis Travel: 1555 mm
- Z-axis Travel: 240 mm
Technical Specification
- Laser Power: 2500 kW
Additional Information
Max sheet size: 3000 × 1500 mm
Max sheet weight: 570 kg
Max positioning speed:
X/Y axes: 100 m/min
Z-axis: 15 m/min
Repeatability: ±0.025 mm
Positioning accuracy: ±0.05 mm/m
Laser:
Type: Fanuc HF-excited CO₂
Power: 2500 W (±2%)
Power range: 100–2500 W
Output stability: ±1%
Wavelength: 10.6 µm
Pulse frequency: 5 Hz–33 kHz
Laser gas consumption: 10 l/h
Cooling: Closed-loop water system
Material cutting capacity (2500 W):
Steel: 16 mm
Stainless steel (N₂): 10 mm
Aluminum: 6 mm
Additional equipment
Automatic loading/unloading system:
Max sheet size: 3050 × 1525 × 12 mm
Max stack weight: 2500 kg
Max stack height: 100 mm
Footprint (including auto loader): 8900 × 6600 × 3700 mm
Compact tower:
Max sheet size: 3050 × 1525 × 16 mm (or 2550 × 1525 × 20 mm)
Min sheet size: 1000 × 1000 mm
Max pallet weight: 3000 kg
Max pallet height: 240 mm (including pallet)
Footprint: 8850 × 7200 mm
Tower height options:
4 pallets: 4100 mm
6 pallets: 4940 mm
10 pallets: 6620 mm
Note: “Min sheet size: 1000 × 1000 m” in the source appears to be a typo; listed here as mm.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
