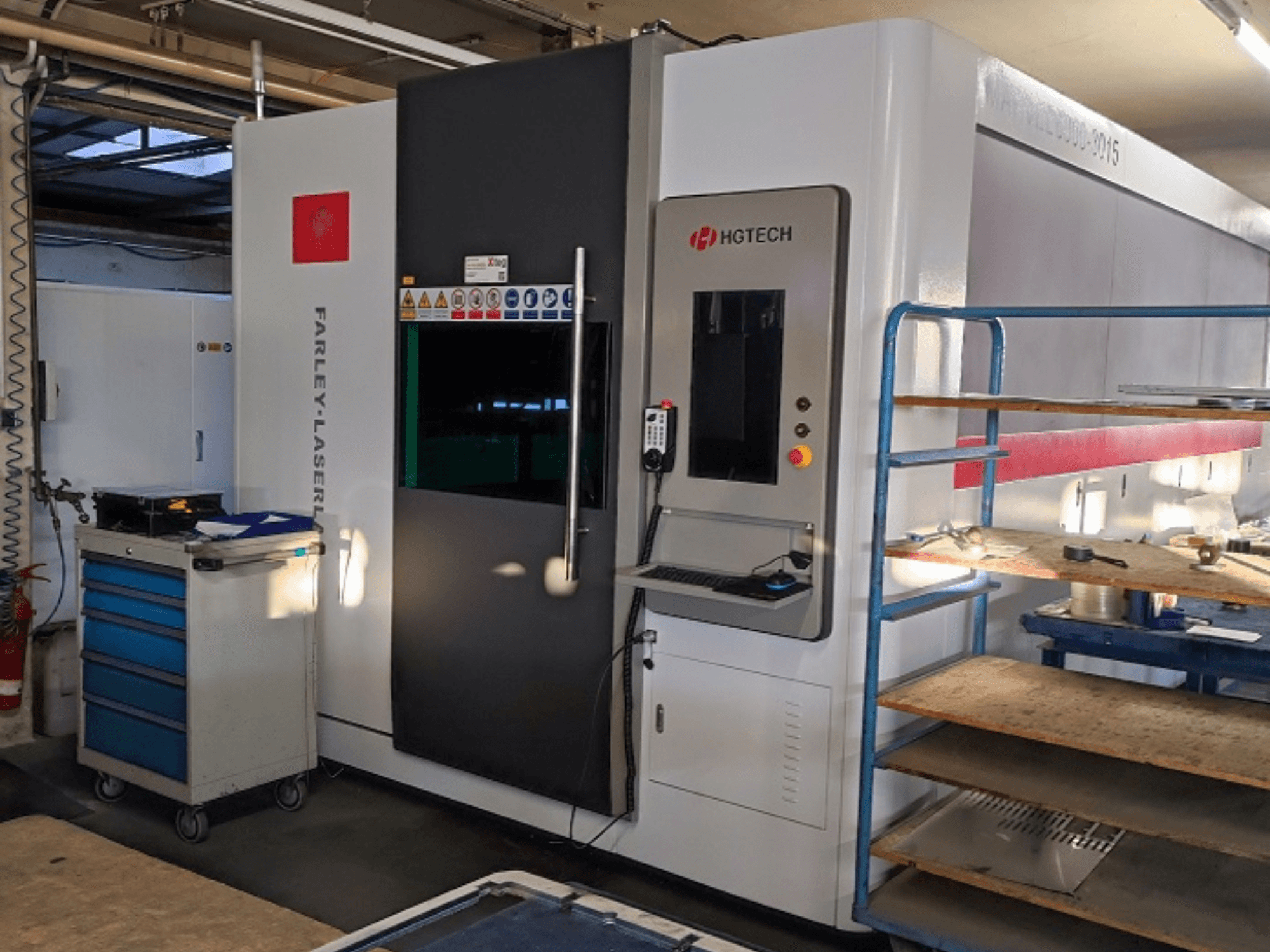

This 3-axis HGTECH Marvel 6000-3015 fiber laser cutting machine was manufactured in 2022. It features a working area of 3000 x 1500 mm and a powerful 6000 W laser source for efficient cutting. The machine is equipped with a Siemens SINUMERIK 840D SL CNC control and an automatic pallet changer for enhanced productivity. If you are looking to get high-quality cutting capabilities, consider the HGTECH Marvel 6000-3015 machine we have for sale. Contact us for further details.
Overview
- brand: HGTECH
- year: 2022
- MODEL: Marvel 6000-3015
- production hours: 1197
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - HGTECH Marvel 6000-3015
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D SL
Movement
- Number of Axes: 3
- X-axis Travel: 3100 mm
- Y-axis Travel: 1525 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Working area: 3000 x 1500 mm
Drive system: gantry drive with linear direct drives
Transmission: rack and pinion
Control panel: touch color display
Motors and drives: Siemens motors and drive modules
Cutting head: Precitec ProCutter (compact/lightweight, autofocus focusing lens, distance sensor)
Laser source: external solid-state fiber laser Raycus
Laser output: single fiber (one LLK output)
Positioning: laser diode
Sheet detection: outer edge detection
Nozzle cleaning: automatic
Workspace lighting: integrated
Status indication: machine status light
Waste system: roll-out drawers, right side
Electrical cabinet: with internal lighting
Electrical connection: 380 V, 3‑phase, 50 Hz, 100 A
Additional equipment
Cooling system: chiller unit
Pallet system: automatic pallet changer (longitudinal)
Extraction system: multi-chamber extraction
Note: Laser power appears twice with different values (4000 W and 6000 W). Please confirm the correct rating.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
