NUKON - Fiber Laser Extreme 30250 DE-CUT-NUK-2021-00001

Name: NUKON Fiber Laser Extreme 30250
Brand: NUKON
SKU: DE-CUT-NUK-2021-00001
Price: 480000 EUR
Availability: InStock

480,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used NUKON Fiber Laser Extreme 30250 | Laser Cutting

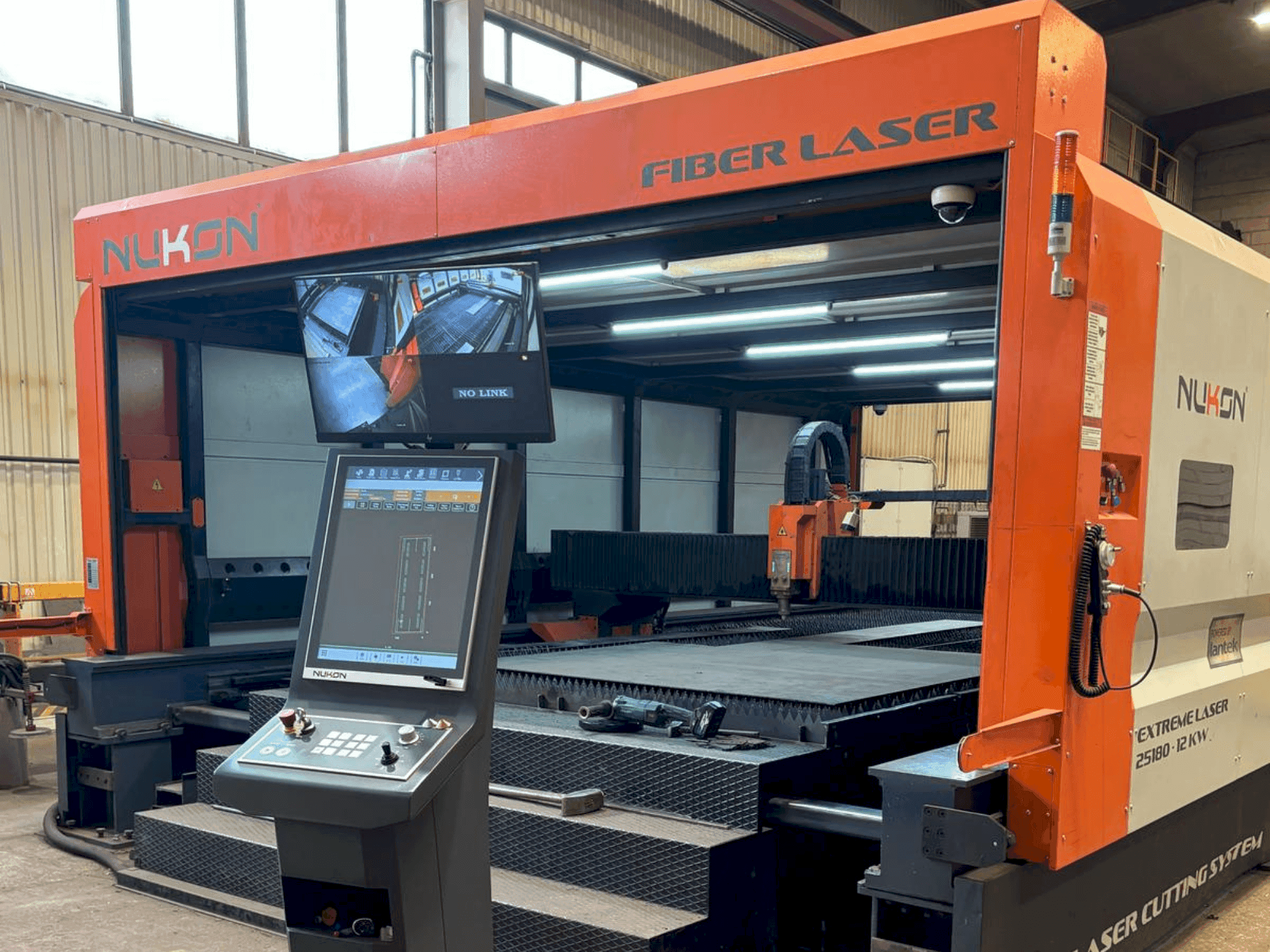

This 5-axis NUKON Fiber Laser Extreme 30250 was manufactured in 2021. It features a 12 kW fiber laser, Beckhoff CNC control system, and a maximum sheet size of 2,500 x 12,000 mm. The machine supports speeds up to 50 m/min and includes a servo drive system. Consider the opportunity to buy this NUKON Fiber Laser Extreme 30250 fiber laser cutting machine. Contact us for more information about this machine.

Overview

brand: NUKON
year: 2021
MODEL: Fiber Laser Extreme 30250
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
control unit brand: BECKHOFF

Technical Information - NUKON Fiber Laser Extreme 30250

Control Unit

Control Brand: BECKHOFF
Control Model: n/a

Dimensions

Machine Weight: 35900 kg

Movement

Number of Axes: 5

Additional Information

Machine Benefits

Technical Machine Benefits

Noise emission: 60 db
Control system: beckhoff cnc
Display: 19" tft standard screen
Control console: all functions can be controlled from the panel
Interface: ethernet
Drive type: servo
Repeatability: ± 0. 35 mm (over 500 mm)
Rotary axis (rotational axis): 160 rpm
Acceleration (x, y, z): 1. 5 g
Positioning accuracy: ± 0. 35 mm (over 500 mm)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
