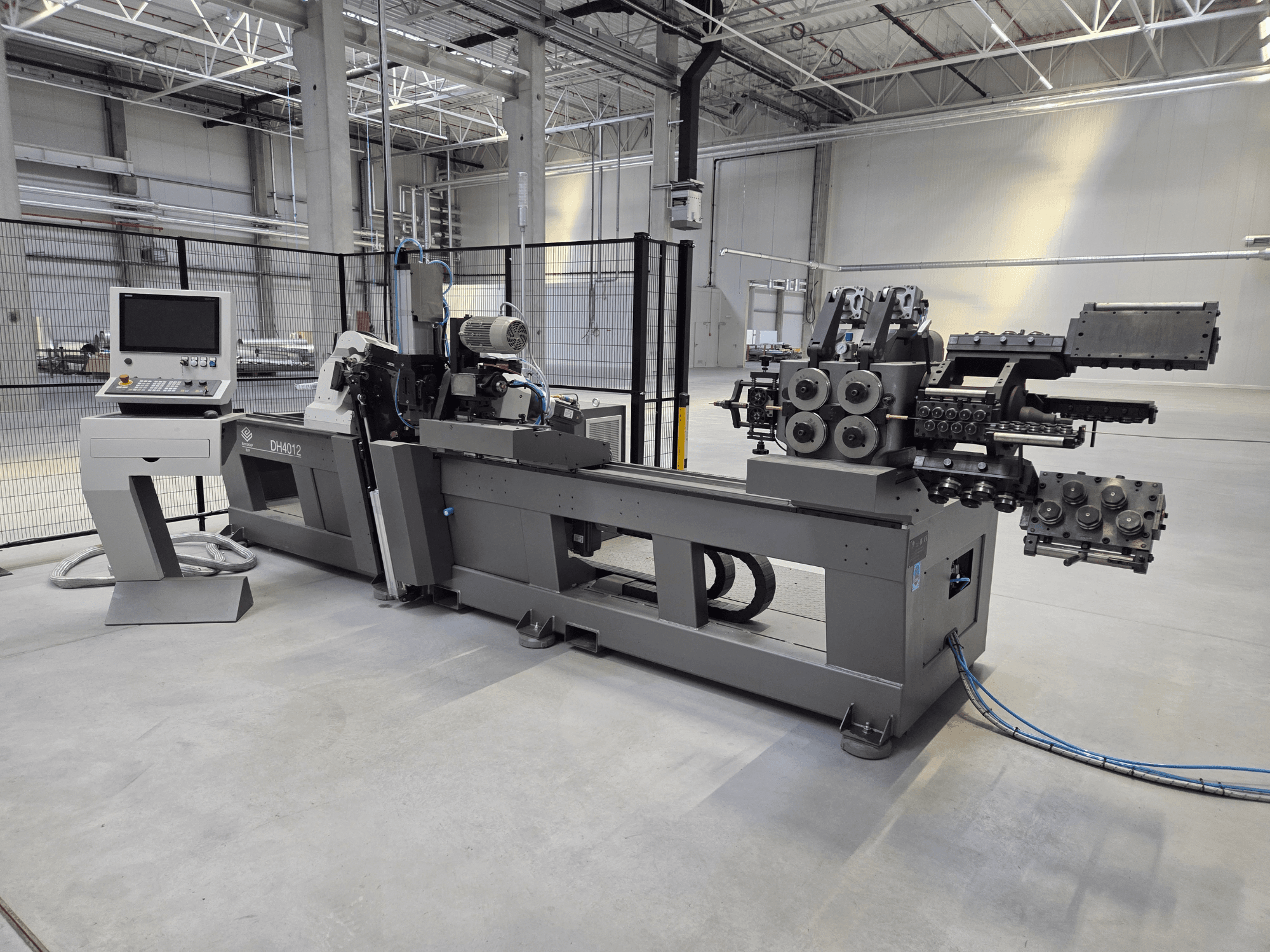

BLM - DH4010COCPL-BEN-BLM-2022-00001

• Machine type: Fully electric CNC wire bending machine with automatic wire feeder

• Number of axes: 9

• Configuration: Dual-head design with two wire bending heads

• Maximum wire diameter:

  • Up to 12 mm (1/2") for wire with tensile strength of 600 MPa (87,000 psi)

  • Up to 10 mm (3/8") for wire with tensile strength of 1,000 MPa (145,000 psi)

• Maximum distance between bending heads: 3,070 mm (121")

The machine is equipped with VGP3D 3D graphical programming software featuring:

• Realistic 3D simulation for part feasibility verification

• Automatic collision detection

• Cost estimation

• Automatic machine cycle generation

• Automatic optimization of the bending sequence

Standard and Included Equipment

• Centrally positioned 3D manipulator

• Head-mounted grippers for workpiece holding and ejection

• Variable-radius bending

• 6-position bending turret

• Automatic wire feeding unit

• End-processing carriage with linear orthogonal wire cutting unit

• Wire cutting capacity: up to 12 mm (1/2") for wire with a tensile strength of 600 MPa (87,000 psi)

• Wire chamfering unit

• CE compliant

DH4005-03

• Tube straightener and RV straightening unit

DHSD4-02

• Straightening rollers (9+9) with V-groove for wire diameters from 2 to 4 mm

DHSD6-02

• Straightening rollers (9+9) with V-groove for wire diameters from 4 to 6 mm
