- Used Vertical machining centre Bridgeport VMC 500 XP - 2001 - for sale | gindumac.com

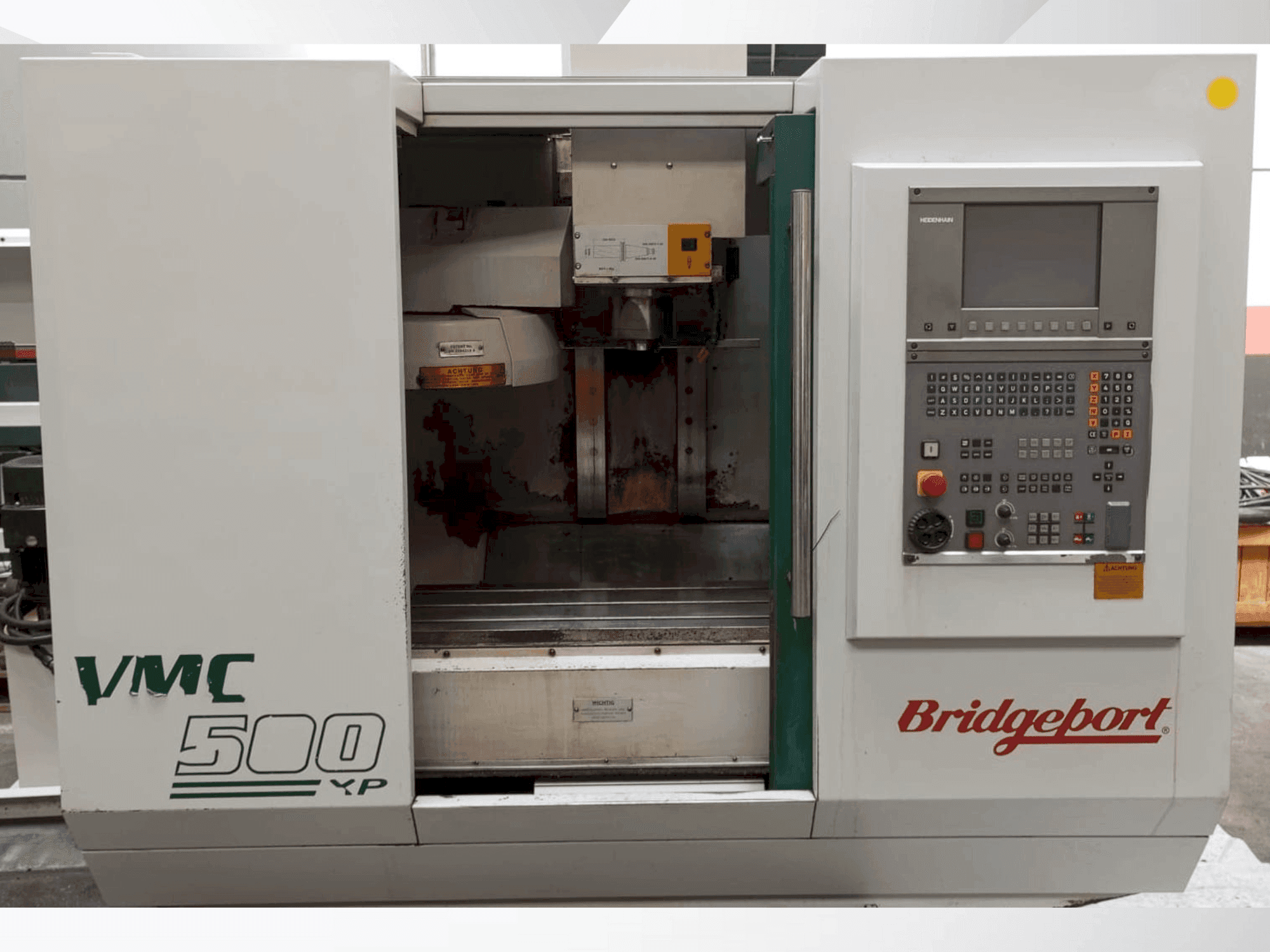

This 3-axis vertical machining centre was manufactured in 2001. The Bridgeport VMC 500 XP, controlled by the HEIDENHAIN TNC 410M, offers capacities well-suited for precise and efficient machining with spindle speeds ranging from 40 to 7000 rpm. Its dimensions include a 500 mm travel on X-axis with rapid traverse of 32 m/min, a 340 mm travel on Y-axis, and a 520 mm travel on the Z-axis. The tool changer can hold 18 tools, facilitating minimal downtime and maximum productivity. Contact us for further details.
Overview
- brand: Bridgeport
- year: 2001
- MODEL: VMC 500 XP
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - Bridgeport VMC 500 XP
General Data
- Machine weight: 2500 kg
Control Unit
- Brand: Heidenhain
- Model: TNC 410 M
Main drive
- Number of spindles: 1
- Spindle speed range: 7000 1/MIN
- Spindle motor power: 10 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 32 M/MIN
- Y-AXIS Movement: 340 mm
- Y-AXIS Rapid traverse: 20 M/MIN
- Z-AXIS Movement: 520 mm
- Z-AXIS Rapid traverse: 20 M/MIN
Table
- Outer length: 840 MM
- Outer width: 360 MM
Tools
- Number of index: 18
- Type of tool holder: SK40
Additional Equipment
- - Tool changer for 18 tools
- - Rigid tapping (synchronized tapping)
- - Automatic tool changer
- - High dynamic digital drives // High-load profiled feeders in the X/Y axis, precision flat feeders in the Z axis
- - Electronic handwheel, switchable for X, Y, Z axis
- - Working area fully protected and electrically secured
- - Working area low voltage light
- - Coolant system with high delivery rate
- - Two-color painting: light gray/moss green RAL 7035/6005
- - Pre- and fine-filter system, 25 μ
Additional Information
- Technical Machine Benefits:
- - Acceleration: 4. 6 m/s²
- - Comfortable equipment
- - Central control panel for machine and cnc control
- Qualitative Machine Benefits:
- - Working area low voltage light
- - Coolant system with high delivery rate
- - Machine is not under power Working area fully protected and electrically secured
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
