Bridgeport - VMC 500 XPIT-MIL-BRI-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Bridgeport VMC 500 XP Machining Center

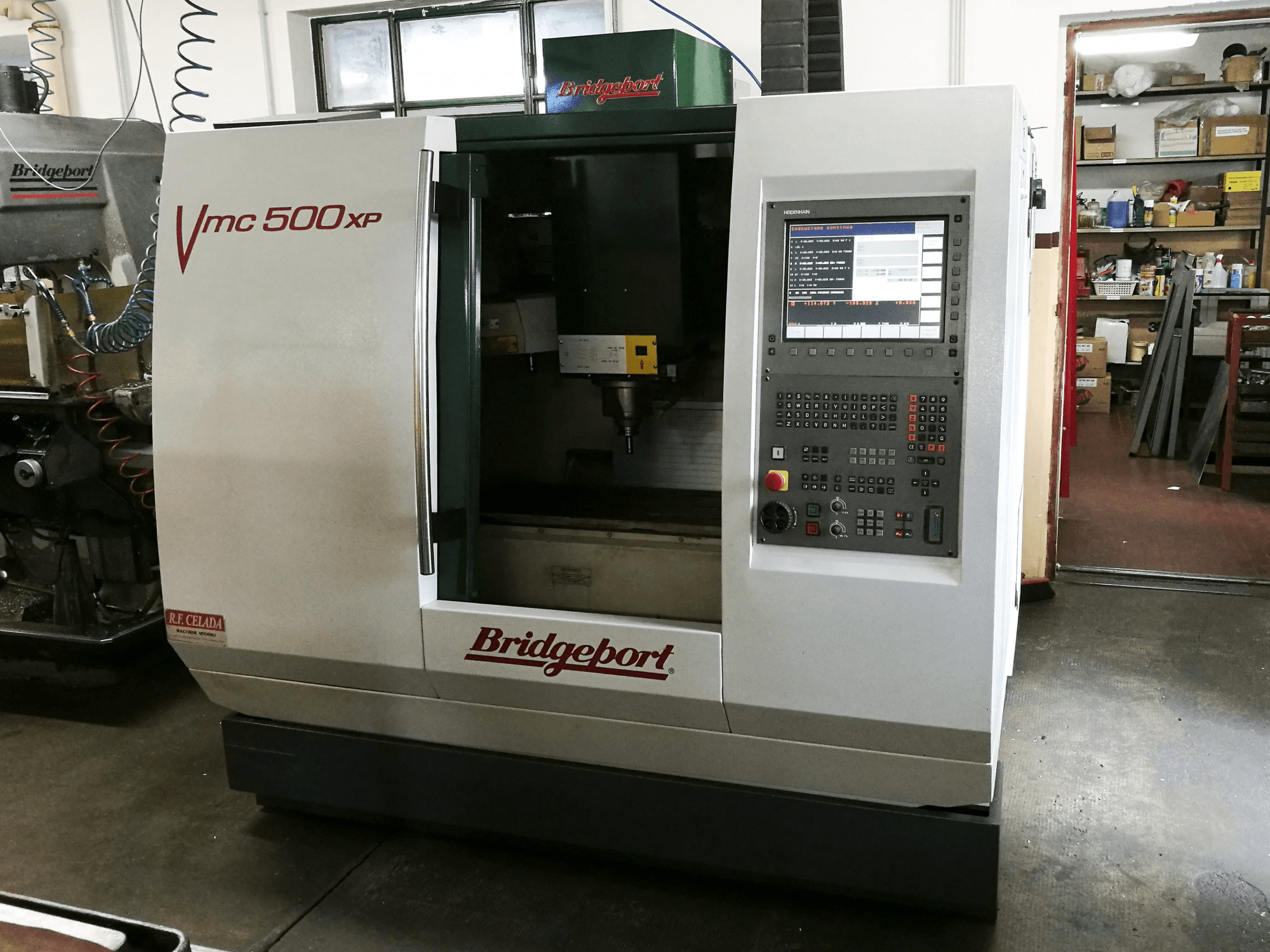

This Bridgeport VMC 500 XP Machining Center was manufactured in 2003 and has been working for approximately 29120 production hours since then. The machine is equipped with the HEIDENHAIN iTNC 530 control unit and fits well in any kind of environment thanks to its compact design. This equipment’s guides stand in an excellent condition, and the machine itself has received a new coat of paint. Furthermore, it features a 14x automatic tool changer and includes 21x tool holders as additional equipment.
Overview
- brand: Bridgeport
- year: 2003
- MODEL: VMC 500 XP
- production hours: 29120
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC 500 XP
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 2100 mm
- Machine Height: 2290 mm
- Machine Weight: 2500 kg
- Table Length: 840 mm
- Table Width: 360 mm
Movement
- X-axis Travel: 500 mm
- Y-axis Travel: 340 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 14
- Spindle Power: 10 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Additional equipment
- 21x Tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
