Bridgeport - VMC 560/22IT-MIL-BRI-1995-00001

Name: Bridgeport VMC 560/22
Brand: Bridgeport
SKU: IT-MIL-BRI-1995-00001
Price: 9000 EUR
Availability: InStock

9,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Bridgeport VMC 560/22 For Sale | gindumac.com

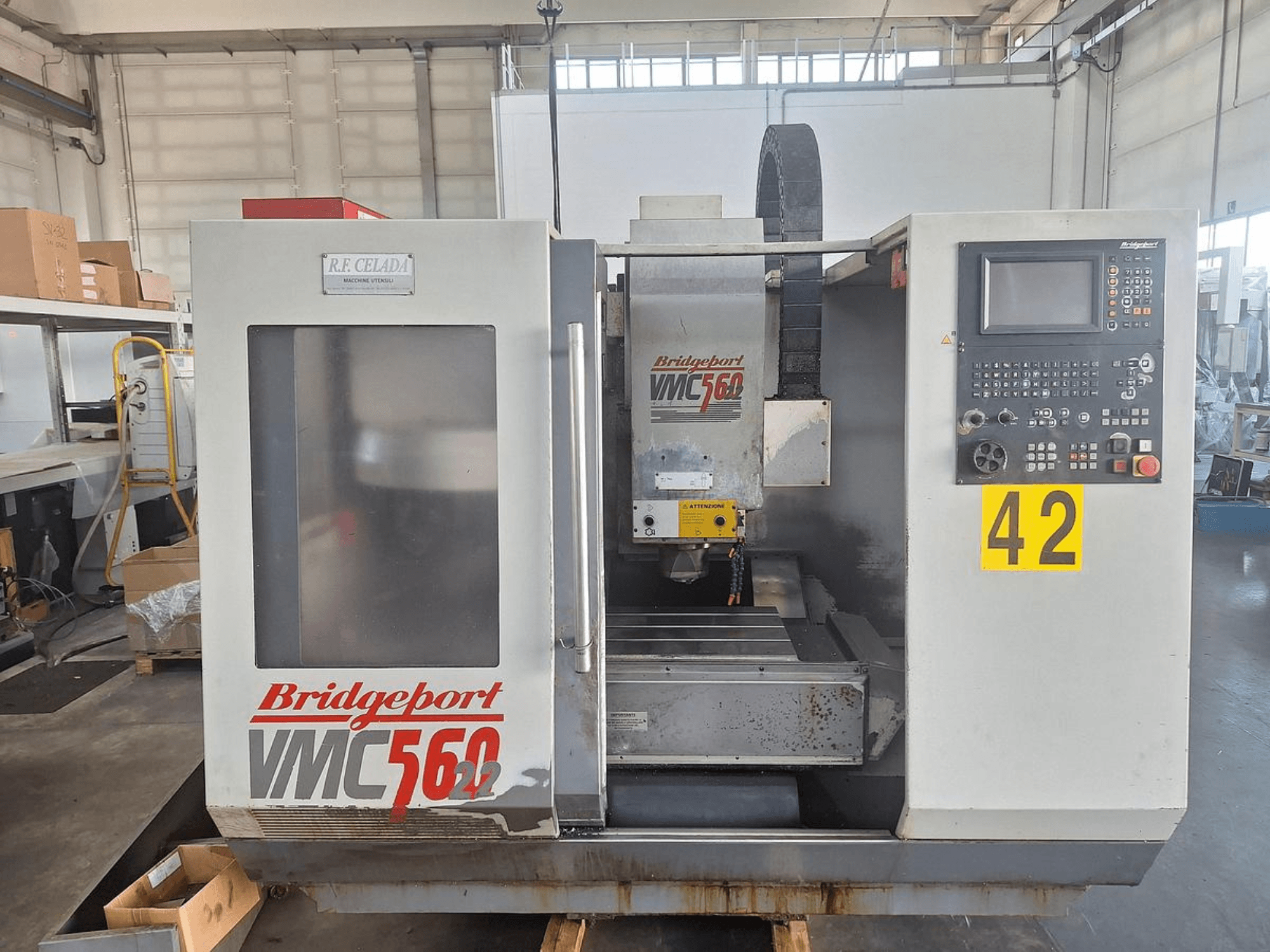

This 3-axis Bridgeport VMC 560/22 was manufactured in 1995. It features an X-axis travel of 560 mm, Y-axis travel of 380 mm, and Z-axis travel of 520 mm. The machine is equipped with a spindle speed of 6,000 rpm and a tool magazine with 22 positions. If you are looking to get high-quality machining capabilities, consider the Bridgeport VMC 560/22 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Bridgeport
year: 1995
MODEL: VMC 560/22
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 560/22

Control Unit

Control Brand: HEIDENHAIN

Movement

Number of Axes: 3
X-axis Travel: 560 mm
Y-axis Travel: 380 mm
Z-axis Travel: 520 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM

Additional Information

Tool taper: BT40

Rapid Traverse: X/Y: 20 m/min; Z: 16 m/min

Outer length: Approx. 840 mm
Outer width: 360 mm
Table load: 500 kg
Number of tool slots: 22
Tool taper: BT40
Max tool length: 250 mm
Maximum tool diameter (adjacent pocket empty): 130 mm
Maximum tool weight: 6 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
