- Bridgeport VMC1000-22 Vertical Machining center

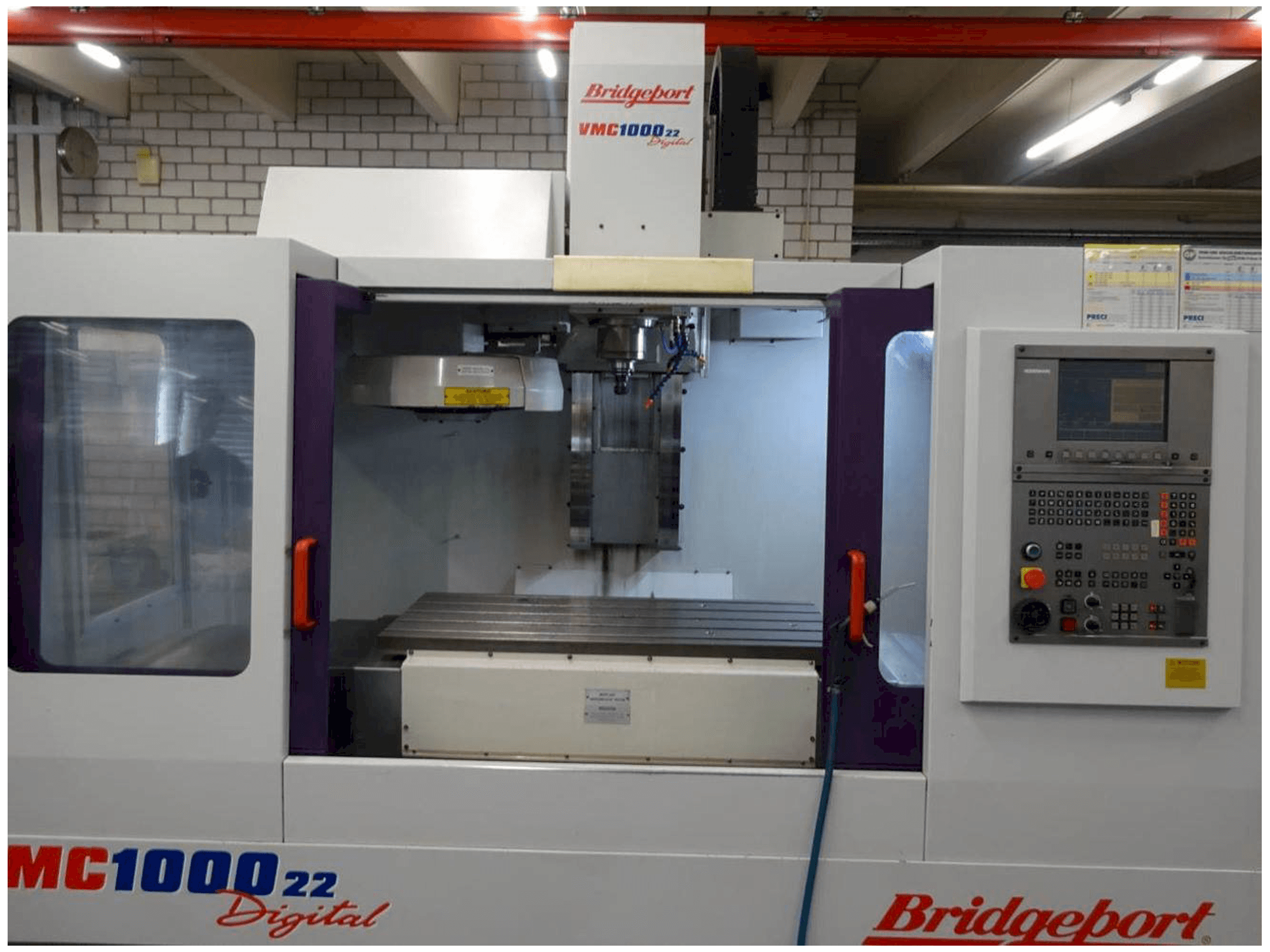

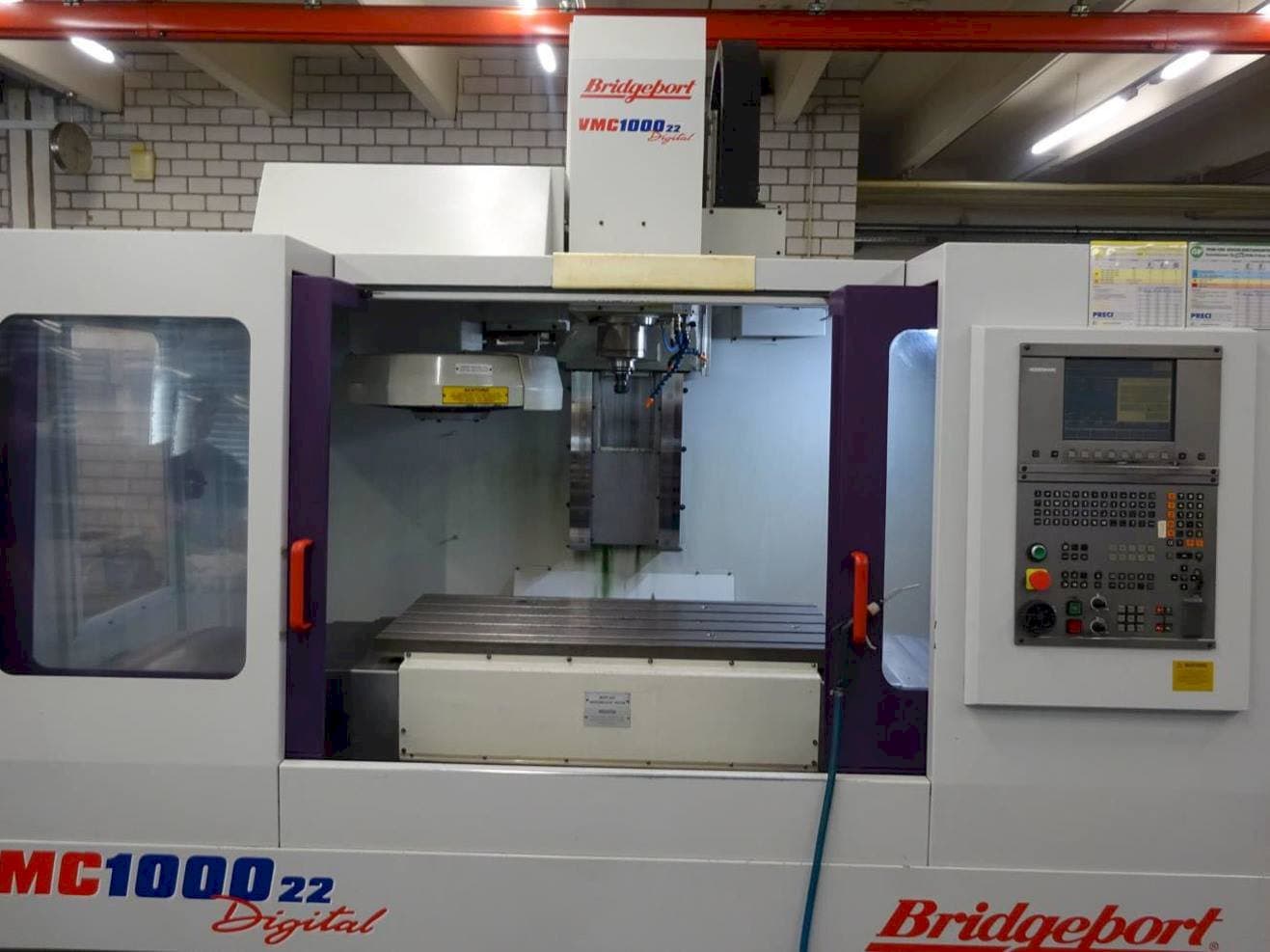

This Bridgeport VMC1000-22 Vertical Machining Center was manufactured in the year 2000 and has 12200 production hours. It is equipped with a HEIDENHAIN TNC 426P control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Bridgeport
- year: 2000
- MODEL: VMC1000-22
- production hours: 12200
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Bridgeport VMC1000-22
General Data
- Machine weight: 3900 kg
Control Unit
- Model: TNC 426P
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 11 kw
- Tool taper: BT 40
- Number of axis: 5
Movement
- X-AXIS Movement: 1020 mm
- X-AXIS Feed Force: 40m/min
- Y-AXIS Movement: 510 mm
- Y-AXIS Feed Force: 40m/min
- Z-AXIS Movement: 600 mm
- Z-AXIS Feed Force: 30m/min
Table
- Outer length: 1150 mm
- Outer width: 49 mm
- Distance between: 100 mm
- Table load: 900 kg
Tools
- Slots in storage: 22
- Max weight: 6 kg
- Max tool diameter: 75 mm
- Max tool length: 250 mm
- Type of tool holder: CONE BT 40 / SK40
Additional Equipment
- - measuring probe included
Additional Information
- Technical Machine Benefits:
- - The extension of the axes is placed on or removed from the table by the operator as required
- - Lehmann axis included (extension to 4 and 5 axis)
- - V
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
