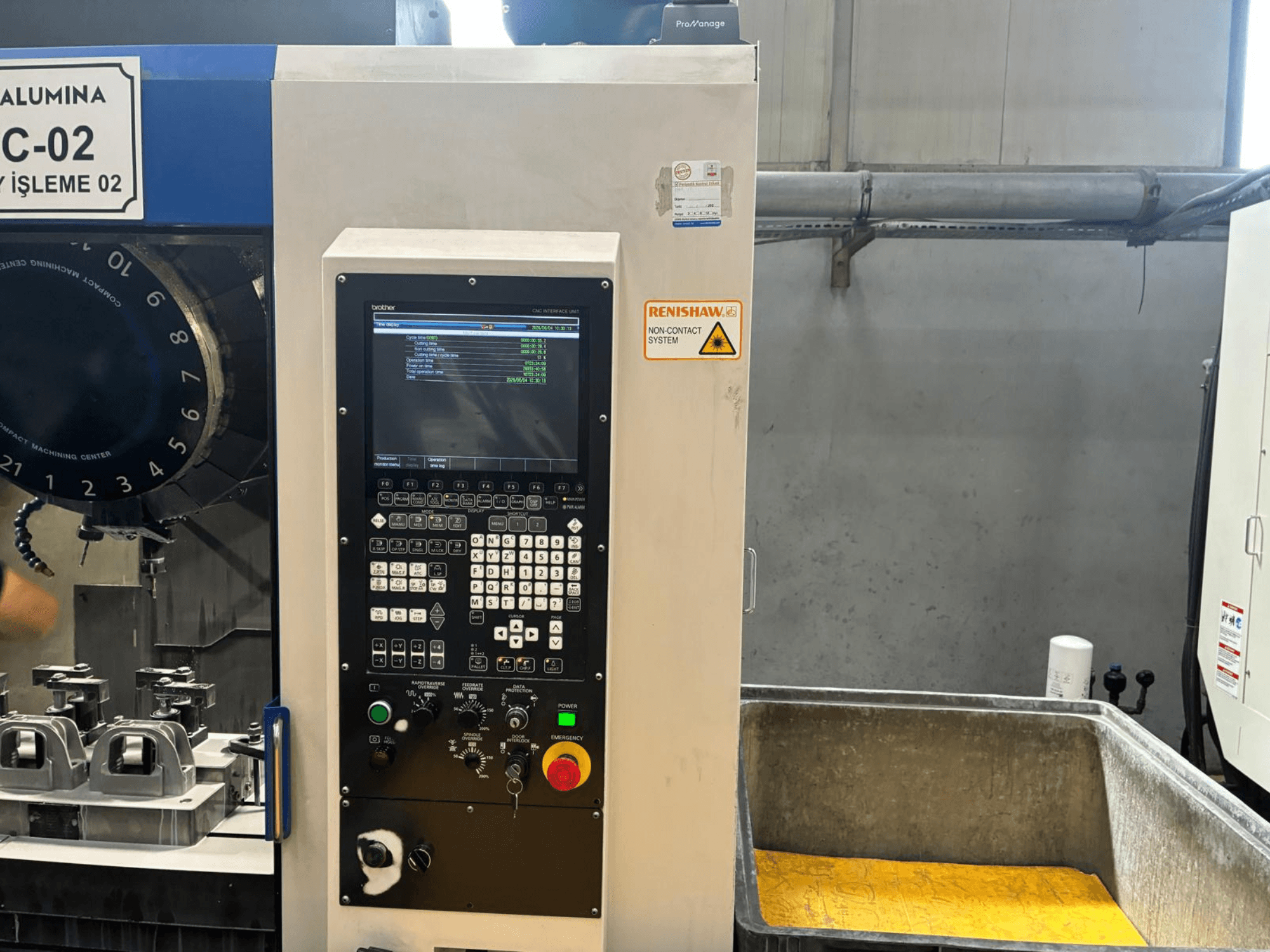

Brother S1000X1 vertical machining center, front view, showing control panel, tool holders, and a coolant collection tank.
Brother S1000X1 vertical machining center, front view, showing control panel, tool holders, and a coolant collection tank.

Brother - S1000X1 TR-MIL-BRO-2018-00001

67,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Brother S1000X1 was manufactured in 2018. It features impressive travels of 1,000 mm in the X-axis, 500 mm in the Y-axis, and 300 mm in the Z-axis. The machine includes a robust table size of 1,100 x 500 mm and a maximum table load capacity of 300 kg. If you are looking to get high-quality machining capabilities, consider the Brother S1000X1 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Brother
  • year: 2018
  • MODEL: S1000X1
  • application type: Milling
  • Location: Turkey
  • machine type: Vertical Machining Centre

Technical Information - Brother S1000X1

Dimensions

  • Machine Weight: 3300 kg
  • Table Load: 300 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1000 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Max. Tool Weight: 3 kg
  • Spindle Power: 10.1 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: BT 30
  • Tool Stations: 14

Additional Information

  • Control: Brother CNC C00, 12.1" color LCD

  • Table: 1,100 x 500 mm; height from floor 810 mm

  • Spindle: distance nose-to-table 180–480 mm; tool holder MAS BT30; pull stud MAS P30T-1

  • Feed rates: Rapid (X/Y/Z) 50 / 50 / 56 m/min; cutting 1–30 m/min; acceleration (X/Y/Z) 2 / 1.3 / 2.2 G

  • ATC: 14 tools (optional 21); max tool Ø110 mm; max length 250 mm; tool-to-tool 0.8 s; chip-to-chip 1.4 s

  • Accuracy: Positioning 0.006 / 300 mm; repeatability ±0.004 mm

  • Electrical/Air: AC 380 V, 3-phase; air 0.4–0.6 MPa

  • Standard features: Through-spindle coolant; rigid tapping; helical interpolation; conical interpolation; tool life management; automatic tool wear compensation; High Precision Mode BI (30-block look-ahead); High Precision Mode AIII; automatic power-off; program memory 100 MB

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
