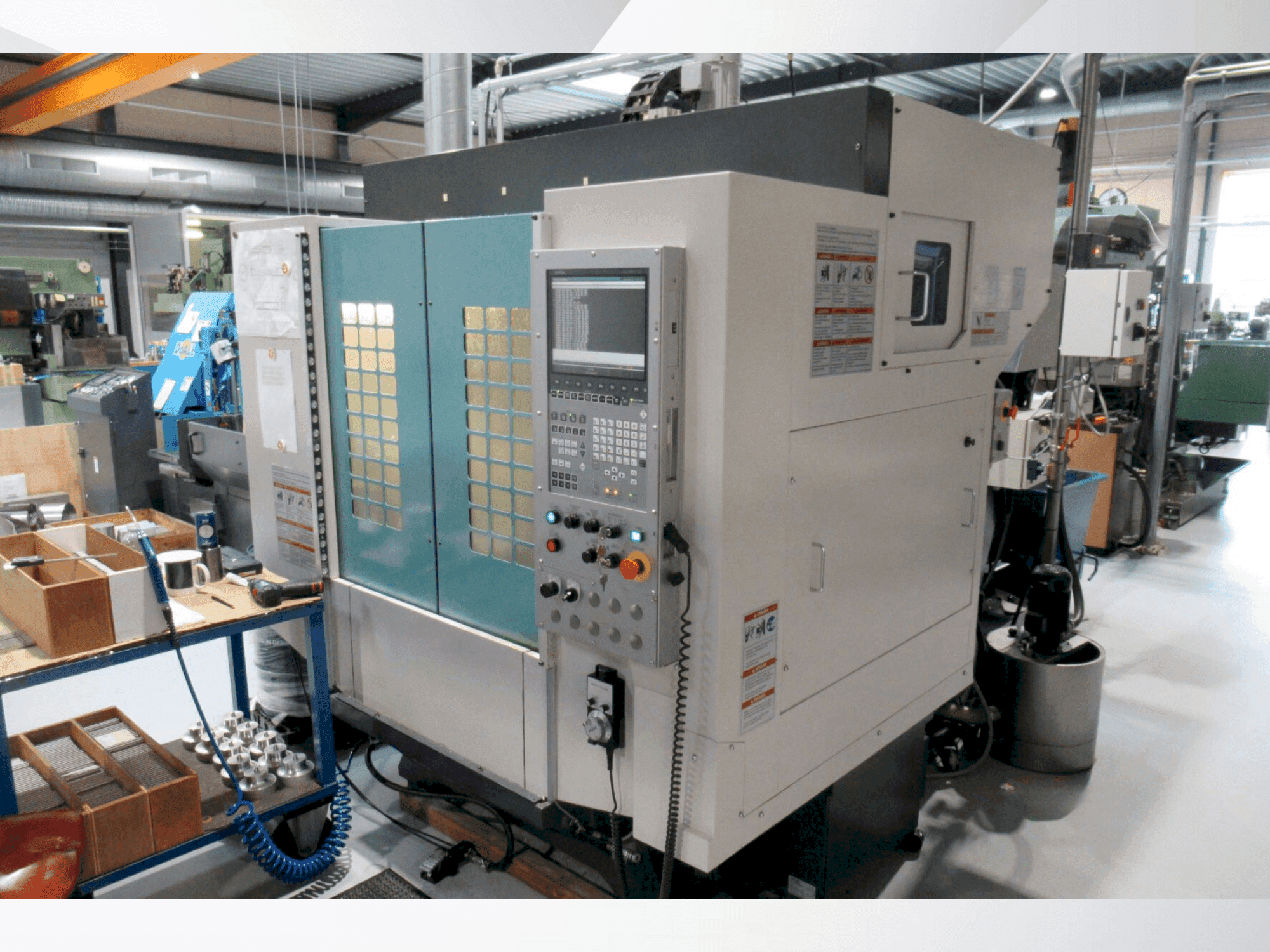

Front view of Brother TC-22B-O  machine

Brother - TC-22B-ODK-MIL-BRO-2007-00001

29,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis Brother TC-22B-O vertical machining center was manufactured in 2007. It features a high-speed spindle capable of 16,000 rpm and a robust 70 bar through-spindle coolant system. The machine includes an automatic tool changer with 27+1 tool capacity, enhancing productivity and efficiency. The Brother CNC-B00 control unit ensures precise 5-axis control, table is 1 axis. For more information about this vertical machining center, please reach out to us.

Overview

  • brand: Brother
  • year: 2007
  • MODEL: TC-22B-O
  • application type: Milling
  • Location: Denmark
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: Brother

Technical Information - Brother TC-22B-O

General Data

  • Measurements width: 3102 mm
  • Measurements depth: 1496 mm
  • Measurements height: 2538 mm
  • Machine weight: 2780 kg

Control Unit

  • Brand: Brother
  • Model: CNC-B00

Main drive

  • Spindle speed range: 16 - 16000 rpm 1/MIN
  • Spindle motor power: 6.0/11 KW (continuous/10 min)
  • Tool taper: ISO 30
  • Number of axis: 5

Movement

  • X-AXIS Movement: 700 MM
  • Y-AXIS Movement: 450 MM
  • Z-AXIS Movement: 410 MM

Table

  • Outer length: 650 mm
  • Outer width: 850 mm
  • Table load: 200 kg

    Additional Equipment

    • - Internal Cooling: Yes (70 bar Through-Spindle Coolant)
    • - Cooling Pressure: 70 bar
    • - Air Supply: 0.4-0.6 MPa, 180 l/min
    • - Coolant Tank Capacity: 250 L

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Controlled axes: 5 axes x/y/z – a/b
        • - Simultaneous controlled axes: x/y/z + a or b
        • - High spindle speed, rapid travel speed, high precision, fast tool change time, high-pressure coolant system
      • Qualitative Machine Benefits:
        • - Precision ball screws, automatic central lubrication, self-diagnosis functions

      Extra information

      • - Control Cabinet: Sealed and dustproof Power Source (NC/Servo Power): AC 200/220V, +10% -15%, 50 Hz +/- 1 Hz, 8.5 KVA Environmental Conditions: Room temperature 0-45°C, Relative humidity 10-90%, Vibration 0.5 G or less

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
