BUFFALO - Micromill Challenger MM-1000DE-MIL-BUF-2015-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used BUFFALO Micromill Challenger MM-1000 | Machining

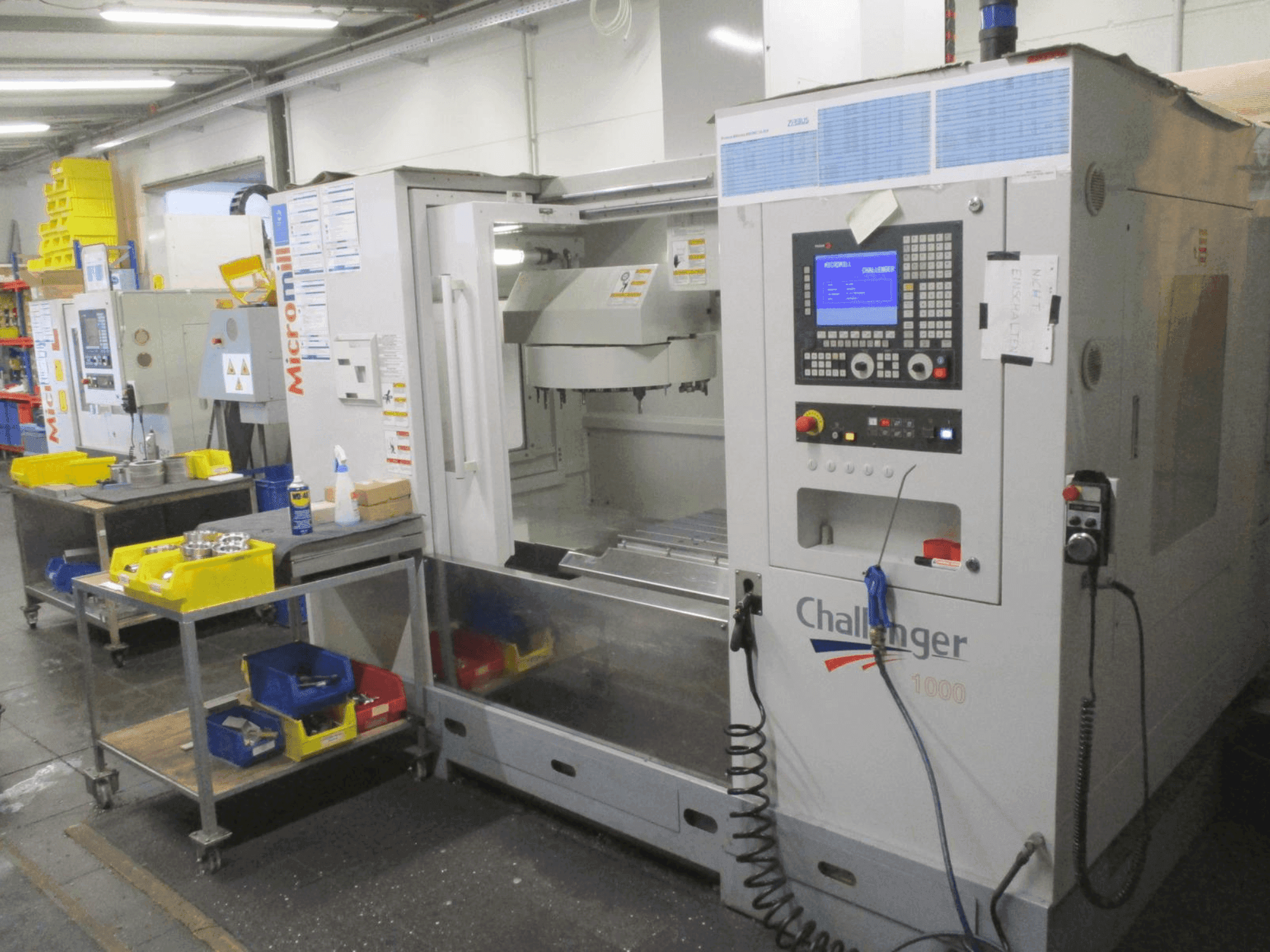

This 4-axis BUFFALO Micromill Challenger MM-1000 was manufactured in 2015. Ideal for precision machining, this vertical machining centre ensures reliable performance. Consider the opportunity to buy this BUFFALO Micromill Challenger MM-1000 vertical machining centre. Contact us for more information.
Overview
- brand: BUFFALO
- year: 2015
- MODEL: Micromill Challenger MM-1000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - BUFFALO Micromill Challenger MM-1000
Dimensions
- Table Load: 800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1000 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Machine Benefits
Technical Machine Benefits
- Repeatability: +/-0. 01 mm
- Positioning accuracy: 0. 01 / 300 mm
- Cutting feed (x/y/z): 10 / 10 / 10 m/min
- Dimensions: 1200 x 520 mm
- Height: 870 mm
- T-slot: 16 x 100 x 5 mm
- Spindle drive: belt
- Spindle center to z-axis cover: 595 mm
- Distance from spindle nose to rotary table clamping surface: 100-650 mm
Extra Information
Axis Drive X-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Y-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Z-Axis Ball Screw: Ø40 x P12 x C3; Drive: Direct Guide X-Guide: Linear guide / 35 mm (ball); Distance: 360 mm Y-Guide: Linear guide / 35 mm (ball); Distance: 700 mm Z-Guide: Linear guide / 35 mm (ball); Distance: 400 mm Tools ATC (Automatic Tool Changer)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
