SPINNER - VC450DE-MIL-SPI-2014-00002

Name: SPINNER VC450
Brand: SPINNER
SKU: DE-MIL-SPI-2014-00002
Price: 40000 EUR
Availability: InStock

40,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER VC450 For Sale | gindumac.com

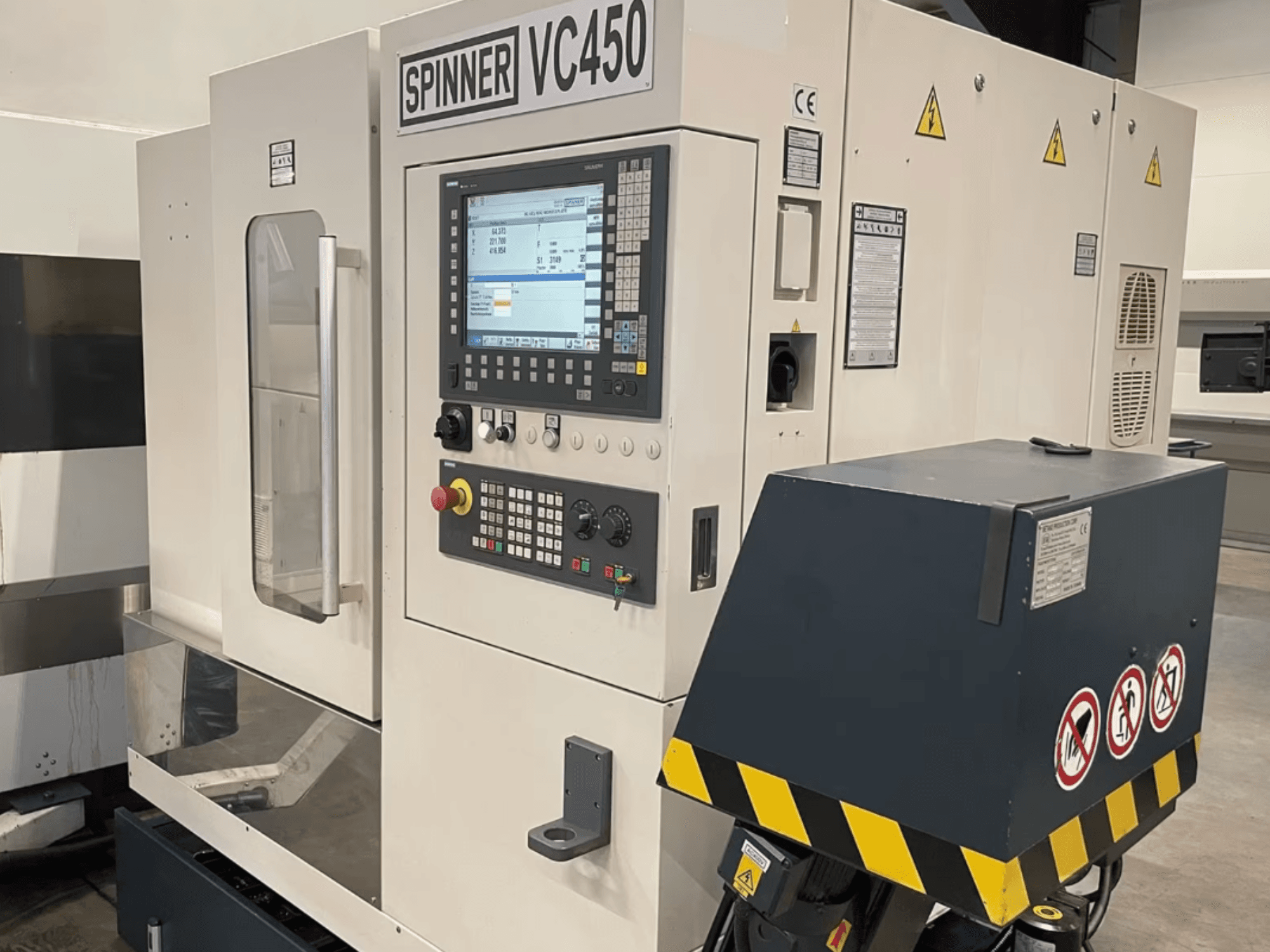

This 3-axis SPINNER VC450 was manufactured in 2014. It features an X-axis travel of 450 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The machine includes a robust table size of 770 x 410 mm and a maximum table load of 200 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER VC450 vertical machining center we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2014
MODEL: VC450
production hours: 30
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER VC450

Control Unit

Control Brand: SIEMENS
Control Model: 840D SL

Dimensions

Machine Height: 2515 mm
Machine Length: 2390 mm
Machine Weight: 3500 kg
Machine Width: 1700 mm
Table Length: 770 mm
Table Load: 200 kg
Table Width: 410 mm

Movement

Number of Axes: 3
X-axis Travel: 450 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 15000 RPM
Taper Size: SK 40
Through-spindle Coolant: Yes
Tool Stations: 24

Additional Information

Control Unit Brand: Siemens
Control Unit Model: Siemens 840D SL
Spindle Power: 16 kW
Maximum Torque: 60 Nm
Rapid Traverse: 36 m/min
Tool Magazine Capacity: 24 Positions
Maximum Tool Diameter: 80 mm
Maximum Tool Length: 200 mm
High-Pressure Through-Spindle Coolant (CTS)
External Coolant Tank
Fully Enclosed Working Area
T-Slot Worktable
3-Color Signal Tower
Machine Status: Tested and Fully Functional
Main Spindle Replaced by SPINNER in February 2026
Operating Hours Since Spindle Replacement: approx. 30 h

Additional Equipment

Chip Conveyor
Machine Vises (optional)
SK40 Tool Holders (optional)
Additional Tooling and Accessories (optional)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
