SPINNER - U5-2520SE-MIL-SPI-2017-00001

Name: SPINNER U5-2520
Brand: SPINNER
SKU: SE-MIL-SPI-2017-00001
Price: 106000 EUR
Availability: InStock

106,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER U5-2520 For Sale | gindumac.com

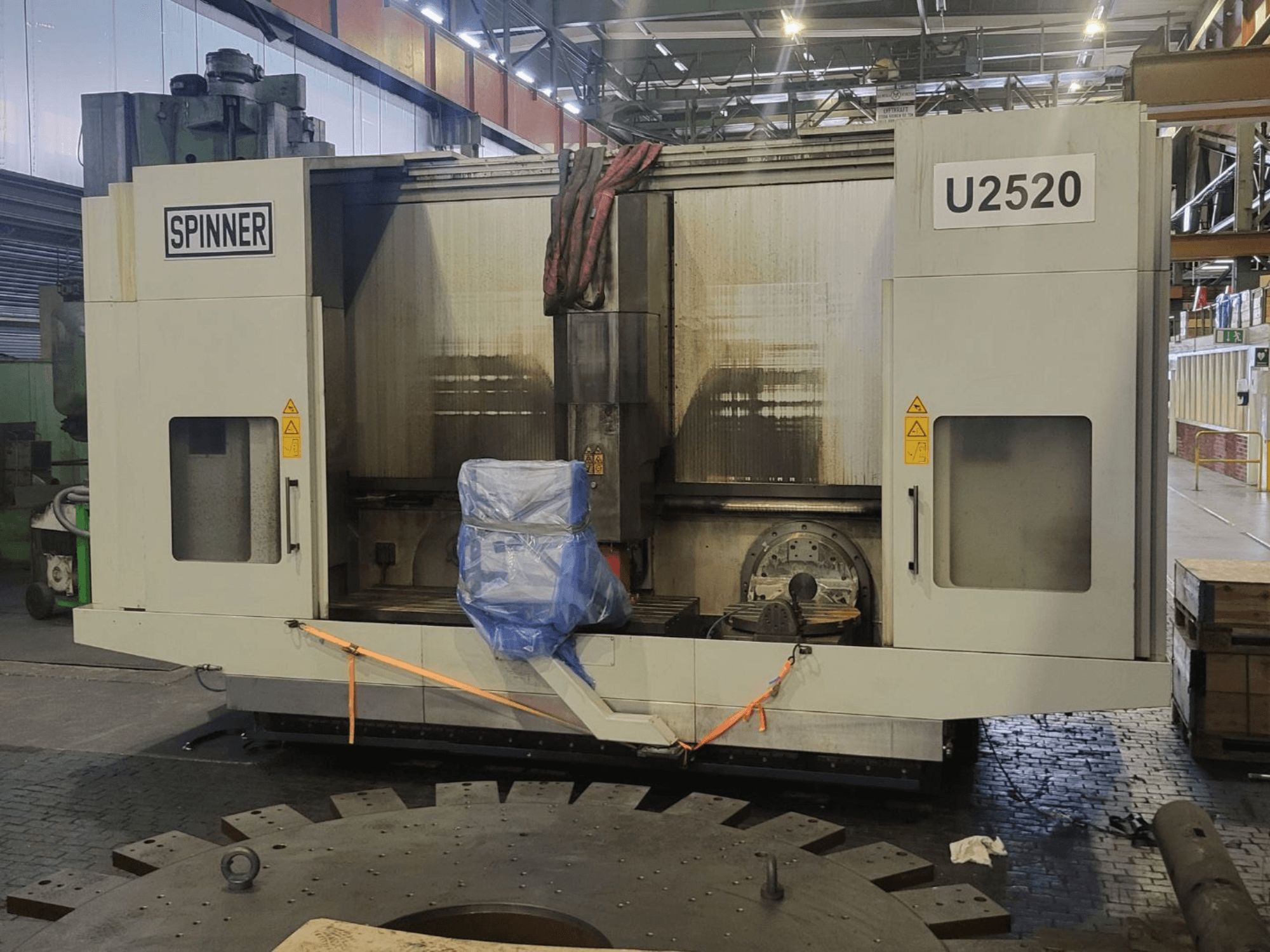

This 5-axis SPINNER U5-2520 was manufactured in 2017. It features an impressive X-axis travel of 2,660 mm, Y-axis travel of 520 mm, and Z-axis travel of 460 mm. The machine is equipped with a maximum spindle speed of 18,000 rpm and a tool magazine capacity of 104 tools. If you are looking to get high-quality milling capabilities, consider the SPINNER U5-2520 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2017
MODEL: U5-2520
application type: Milling
Location: Sweden
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SPINNER U5-2520

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC640

Movement

Number of Axes: 5
X-axis Travel: 2660 mm
Y-axis Travel: 520 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Speed: 18000 RPM
Taper Size: HSK 63
Tool Stations: 104

Additional Information

B-axis swivel range: +110° / –90°
Automatic tool changer: 2 magazines × 52 stations (total 104 tools)

Additional equipment

High-pressure through-spindle coolant system
Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
