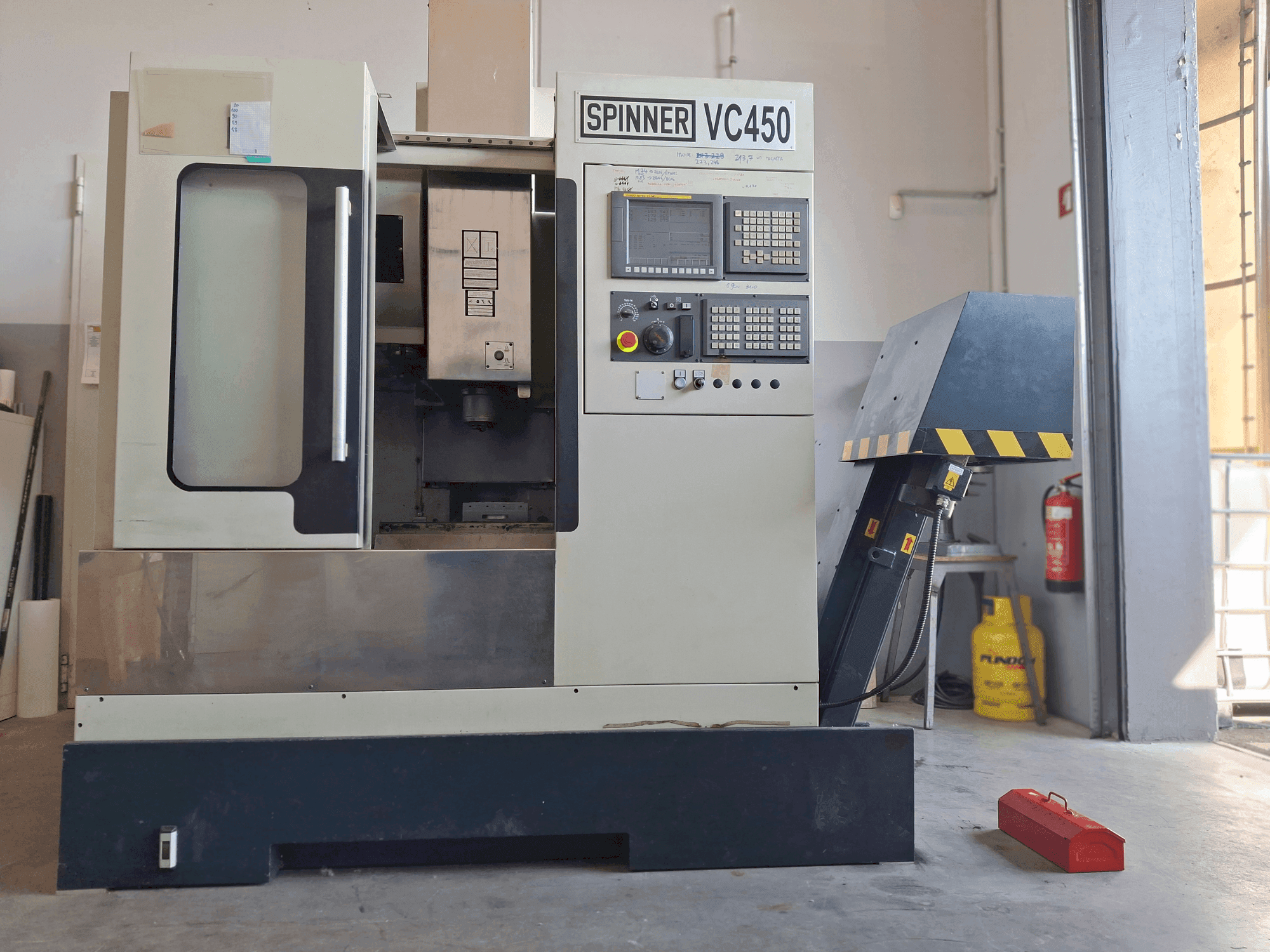

This 3-axis SPINNER VC 450 was manufactured in 2011. It features a Fanuc 0i-MD control unit, X/Y/Z travels of 450/400/400 mm, and a rapid traverse rate of 36 m/min. The spindle operates at up to 15,000 rpm with a power of 7.5 kW. It includes a 24-tool changer, linear guideways, and a chip conveyor. If you are looking to get high-quality milling capabilities consider the SPINNER VC 450 machine we have for sale. Contact us for more information.
Overview
- brand: SPINNER
- year: 2011
- MODEL: VC 450
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - SPINNER VC 450
Control Unit
- Control Brand: FANUC
- Control Model: oi-md
Dimensions
- Table Length: 770 mm
- Table Load: 200 kg
- Table Width: 410 mm
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Number of Tools: 24
- Spindle Power: 7.5 kW
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Air-blow system for spindle taper
- Included: Approx. 40 SK40 tool holders
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
