Hurco - VM20iDE-MIL-HUR-2014-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hurco VM20i For Sale | gindumac.com

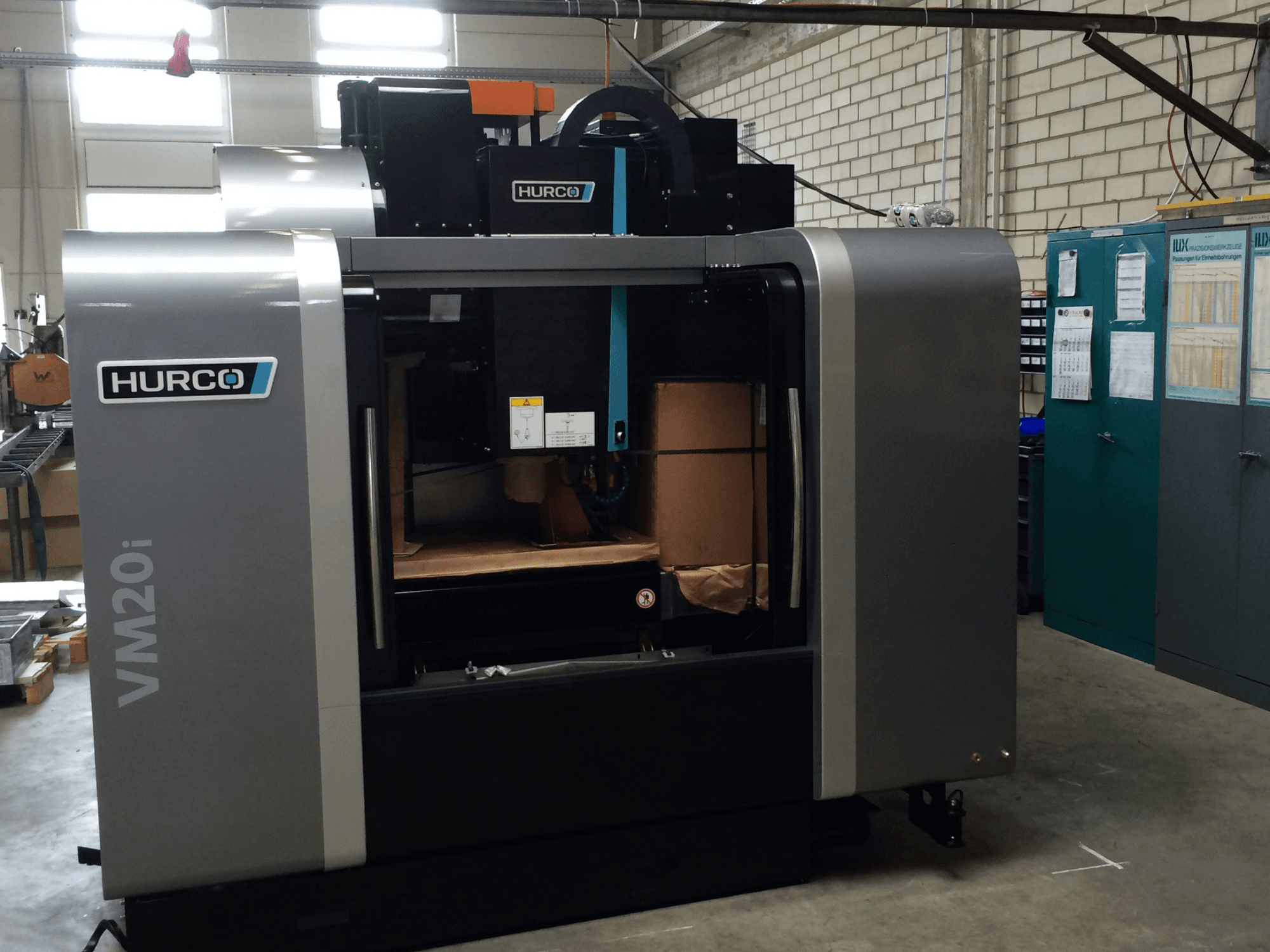

This 3-axis Hurco VM20i was manufactured in 2014. It features an X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 400 mm. The machine includes a table size of 1,170 x 507 mm and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Hurco VM20i vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Hurco
- year: 2014
- MODEL: VM20i
- production hours: 10000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Hurco VM20i
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: No
- Tool Stations: 24
Additional Information
Control: WINMAX
Clamping System: SK40 DIN69871 AD/B
Tool Holder: SK40
Table Size: 1,170 x 507 mm
Spindle Hours: Approx. 10,000 h
Condition: Used
CE Marking: Yes
Frequency: 50 Hz
Voltage: 400 V
Power Supply: 3 Phase
Largest Motor: 13 kVA
Full Load: 20 kVA
Interrupt Capacity: 10,000 A
Short Circuit Current: 22 kA RMS Symmetrical
Maximum Ambient Temperature: 35 °C
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
