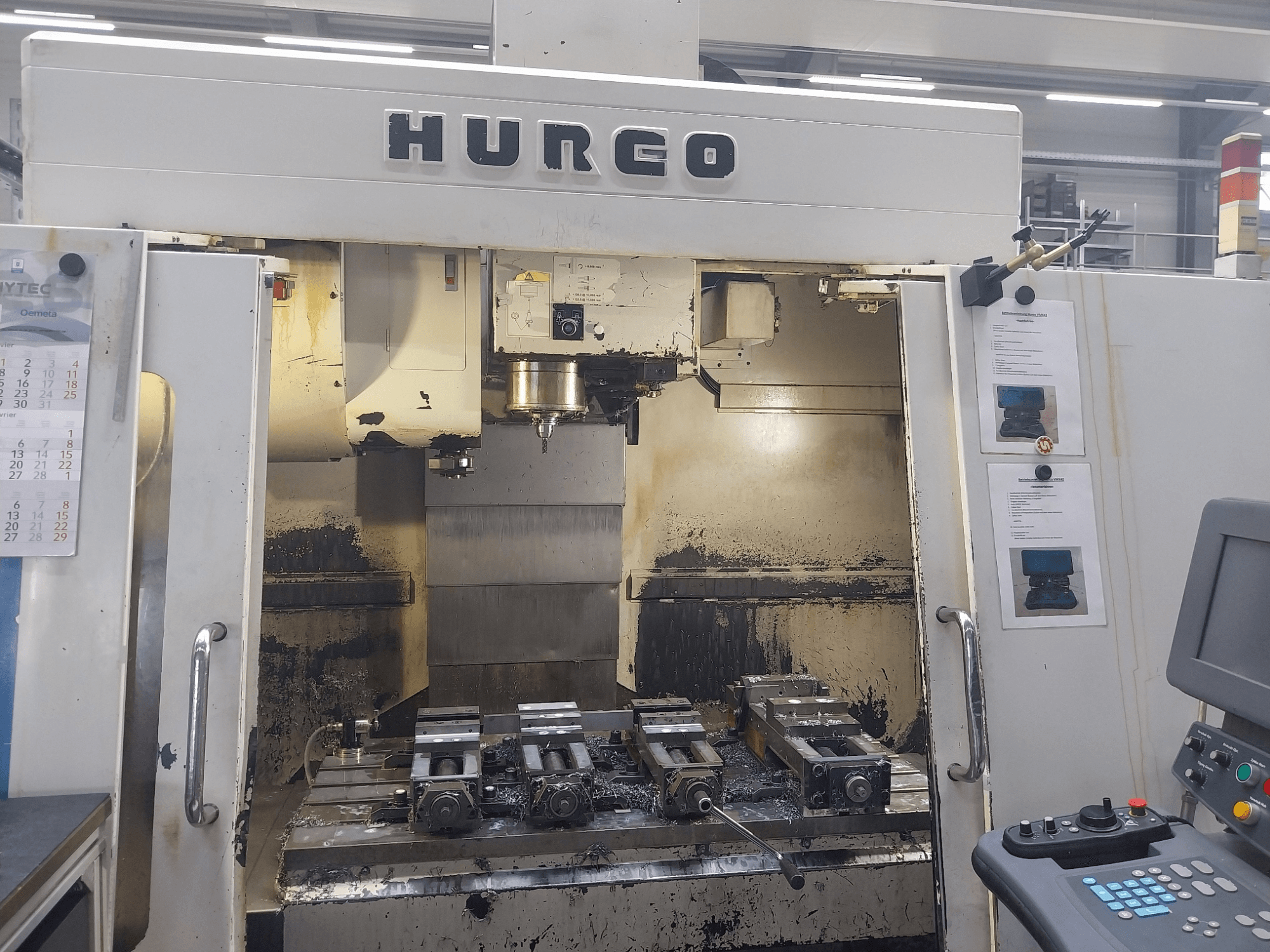

Hurco VMX 42 vertical machining center front view, showing worktable with fixtures and control panel, slightly worn condition.
Hurco VMX 42 vertical machining center front view, showing worktable with fixtures and control panel, slightly worn condition.

Hurco - VMX 42DE-MIL-HUR-2007-00006

22,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Hurco VMX 42 was manufactured in 2007. It features an X-axis travel of 1,060 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1,270 × 610 mm and a maximum table load of 1,100 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Hurco
  • year: 2007
  • MODEL: VMX 42
  • production hours: 117713
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - Hurco VMX 42

Dimensions

  • Machine Height: 2770 mm
  • Machine Length: 4535 mm
  • Machine Weight: 6650 kg
  • Table Width: 3750 mm

Movement

  • X-axis Travel: 1060 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Additional Information

  • Spindle Nose to Table: 150 – 760 mm

  • Feed Rate Programmable: 3 – 7600 mm/min

  • Feed Rate via Console: 3 – 11400 mm/min

  • Rapid Traverse X/Y/Z: 35 / 35 / 30 m/min

  • Guideways: Linear guideways (X, Y, Z)

  • Positioning Accuracy: ±0.01 mm

  • Repeatability: ±0.005 mm

  • Table Size: 1270 × 610 mm

  • T-slots: 5 (DIN 650) T-slot

  • Width: 18 mm

  • Distance Between T-slots: 100 mm

  • Maximum Table Load: 1100 kg

  • Automatic Tool Changer Type: Drum magazine

  • Number of Tool Positions: 24

  • Maximum Tool Diameter: 80 mm

  • Maximum Tool Weight: 7 kg

  • Maximum Tool Length: 300 mm

  • Tool Holder: SK 40 (DIN 69871)

  • Pull Stud: ISO 7388/II Type B

  • Coolant Tank Capacity: 340 liters

  • Machine-Specific Data

  • Spindle Drive Power (Continuous): 18.0 kW

  • Maximum Torque: 720 Nm

  • Torque at 1 min ED: 237 Nm

  • Spindle Speed Range: 10 – 12000 rpm

  • Mount Position (Assembly)

  • Measuring System: Photoelectric

  • Standard: Rotary motor encoder

  • Central Lubrication System: 1 pump (X, Y, Z)

  • Electrical Connection: 38 kVA / 55 A

  • Voltage: 400 V

  • Compressed Air Connection: 6 bar / 0.3 m³/min


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
