Bystronic Bystar 3015
Bystronic - Bystar 3015
2002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic Bystar 3015 Laser Cutting Machine

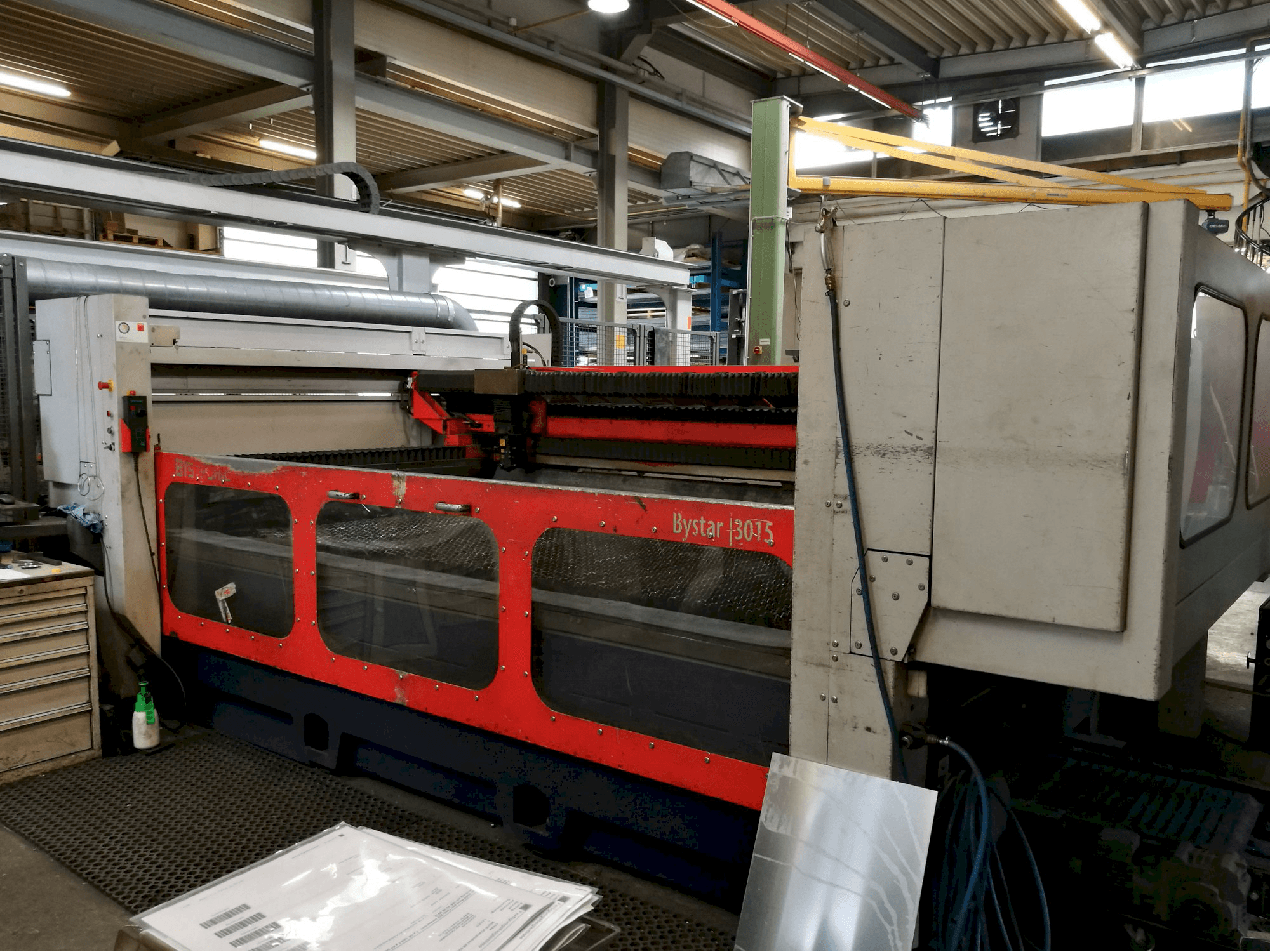

This Bystronic Bystar 3015 Laser Cutting Machine was manufactured in 2002 in Switzerland and comes up with a production history of 33067 working hours. Equipped with a Bystronic CNC Control unit, this versatile machine has mainly worked with steel, stainless steel and aluminum during the past. A Bystronic BysTrans Modular Automation System, along with 2 laser cutting heads and a Scheuch Filter System are included as additional equipment. This machine currently forms a production unit and can be purchased together with this machine: http://bit.ly/2RVCvYW
Overview
- brand: Bystronic
- year: 2002
- MODEL: Bystar 3015
- production hours: 33067
- application type: Laser Cutting
- Location: Austria
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Bystronic
- GINDUMAC ID: AT-LAS-BYS-2002-00001
Technical Information
General Data
- Measurements width: 9998 mm
- Measurements depth: 8806 mm
- Measurements height: 3500 mm
- Machine weight: 8000 kg
Control Unit
- Brand: Bystronic
- Model: CNC
- CNC main language: German
- CNC language customizable: Yes
Main drive
- Laserpower: 4 kW
- Laser type: Co2
- Laser brand: Bystronic
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 170 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 170 mm
- Workpiece weight: 890 kg
Max Material thickness
- Steel: 15 mm
- Stainless steel: 10 mm
- Aluminum: 10 mm
Media
- Main electronic connection: 400 V
- Power consumption: 63 kVA
Additional Equipment
- - 2 Laser Cutting Heads
- - Bystronic BysTrans Modular Automation System
- - 1 Scheuch Filter System (6000 m3/h)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
