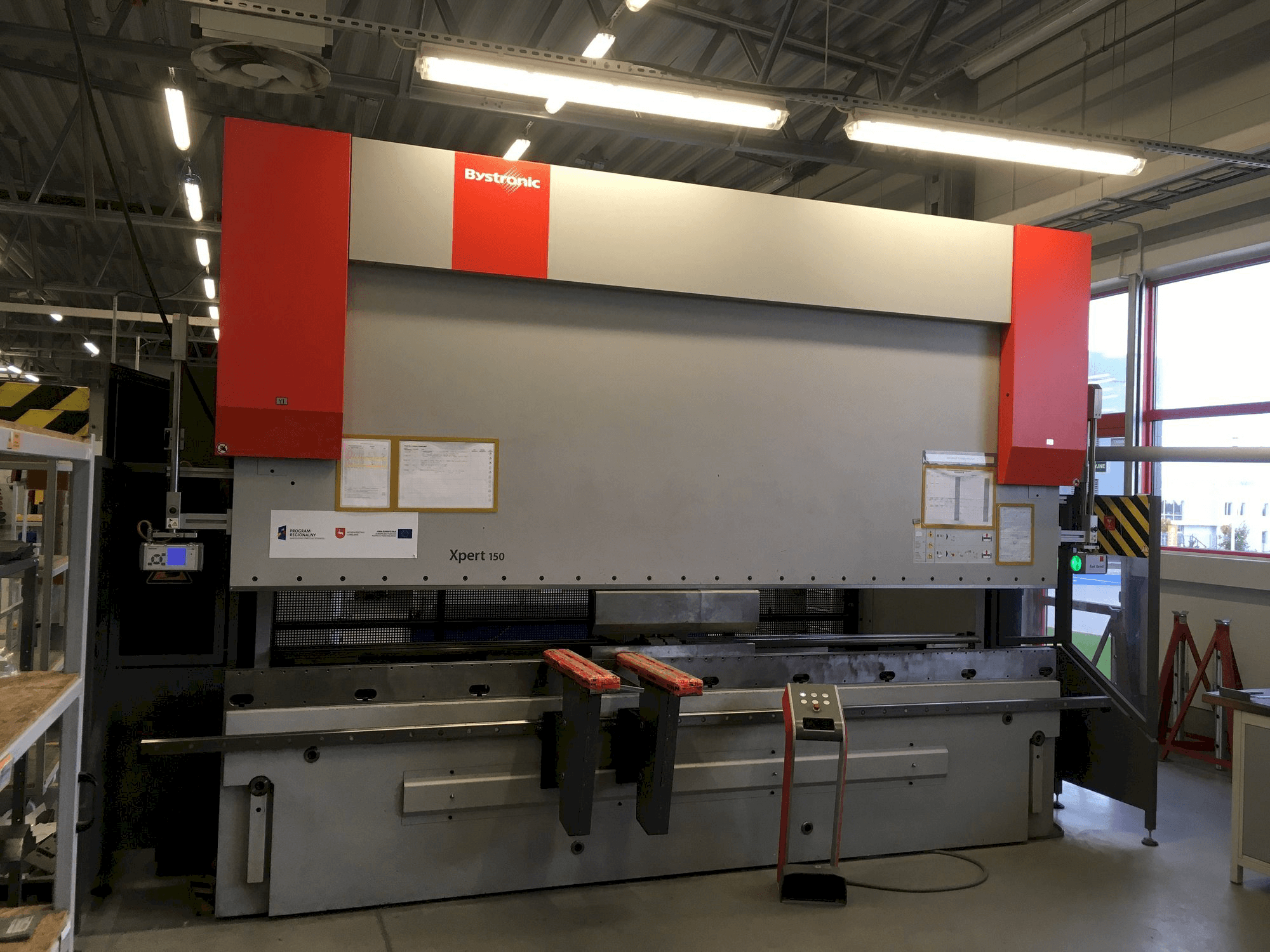

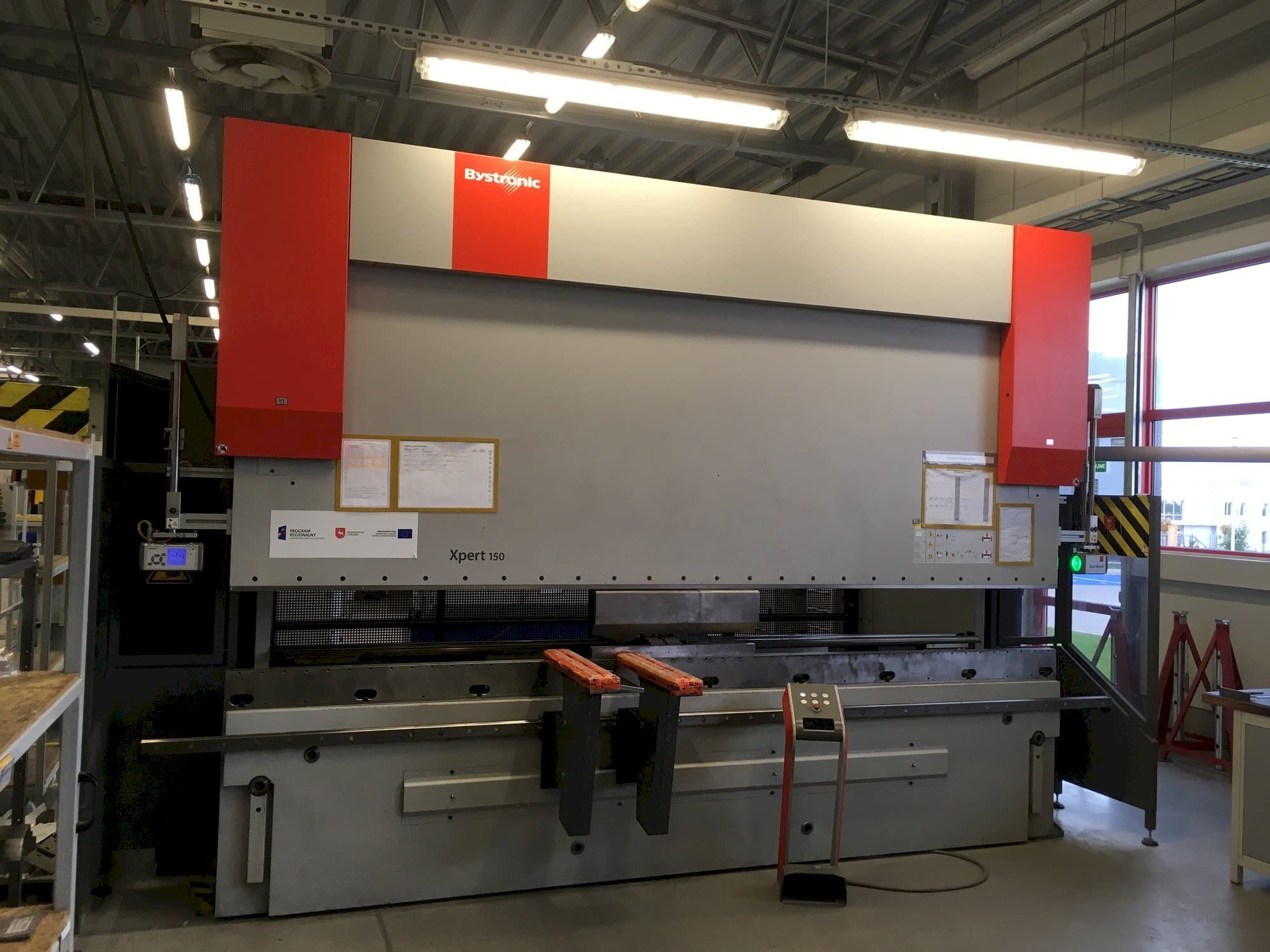

Front view of Bystronic Xpert 150/4100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Xpert 150/4100

Photo Gallery

Bystronic - Xpert 150/4100PL-BEN-BYS-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic Xpert 150/4100 Bending machine

This Bystronic Xpert 150/4100 Bending machine was made in 2014 in Germany. It has a production record of 8130 hours since then. It is equipped with a control unit of the same brand. This machine operates with a pressing force of 1500 kN, and a bending length of 4100 mm. It presents good conditions. One set of standard tools (punch and dies) comes with this machine.

Overview

brand: Bystronic
year: 2014
MODEL: Xpert 150/4100
production hours: 8130
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: BYSTRONIC

Technical Information - Bystronic Xpert 150/4100

Control Unit

Control Brand: BYSTRONIC
Control Model: Xpert 150/4100

Dimensions

Machine Depth: 2050 mm
Machine Height: 2780 mm
Machine Weight: 14500 kg

Movement

Number of Axes: 4

Technical Specification

Bending Length: 4100 mm
Pressing Force: 1500 Kn

Additional Information

Additional equipment

Dies: V16 / 30 ° L = 1000mm 1pc folding, V16 / 30 ° L = 515mm 1 item, V8S / 30 ° L = 1000mm 1pc folding, V8S / 30 ° L-515 2 pcs.,
Dies: V32 / 30 ° L = 1000mm 1pc folding, V32 / 30 ° L = 515mm 1 pc, V50 / 60 ° L = 1000mm 1 pc foldable, V900 / 10 L = 1000 H = 85mm 1pc folding, V900 / 10 L = 515 H = 85mm 1pc
Punches: P4 R / 85 ° L = 1000 H = 250 1 piece R = 1.5 folded, P4 R / 85 ° L = 515 H = 250 1 item R = 1.5, P4 R / 85 ° L = 100 H = 250 2 pcs. R = 1.5 weaned Left + Right
Punches: P7 R / 30 ° L = 1000 H = 250 1 piece R = 3 folded, P7 R / 30 ° L = 515 H = 250 1 item R = 3, P7 R / 30 ° L = 100 H = 250 1 item R = 3 offset Left + Right
Punches: P12 R L = 1000 H = 110 pcs R = 8 + fixing, P900 / 10 R / 30 ° L = 1000 H = 175 1 piece R = 1
Punches: P900 / 10 R / 30 ° L = 515 H = 175 4 pcs R = 1
Punches: S1 / 73 L = 1000 increase for the matrix
Punches: S1-73 L = 515 increases for matrix

Machine Benefits

Qualitative Machine Benefits

Perfect technical condition
The machine was used for small production only

Technical Machine Benefits

4 axis press brake with cnc for axis: y1, y2, x, r and manual movements for z1 and z2 axis
Bystronic’s manual clamping system for punch and dies with hand tightening screws
Equipped with a compensation system
2 front supports for parts,
System fastbend bystronic
Additional console with foot switch for a second operator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
