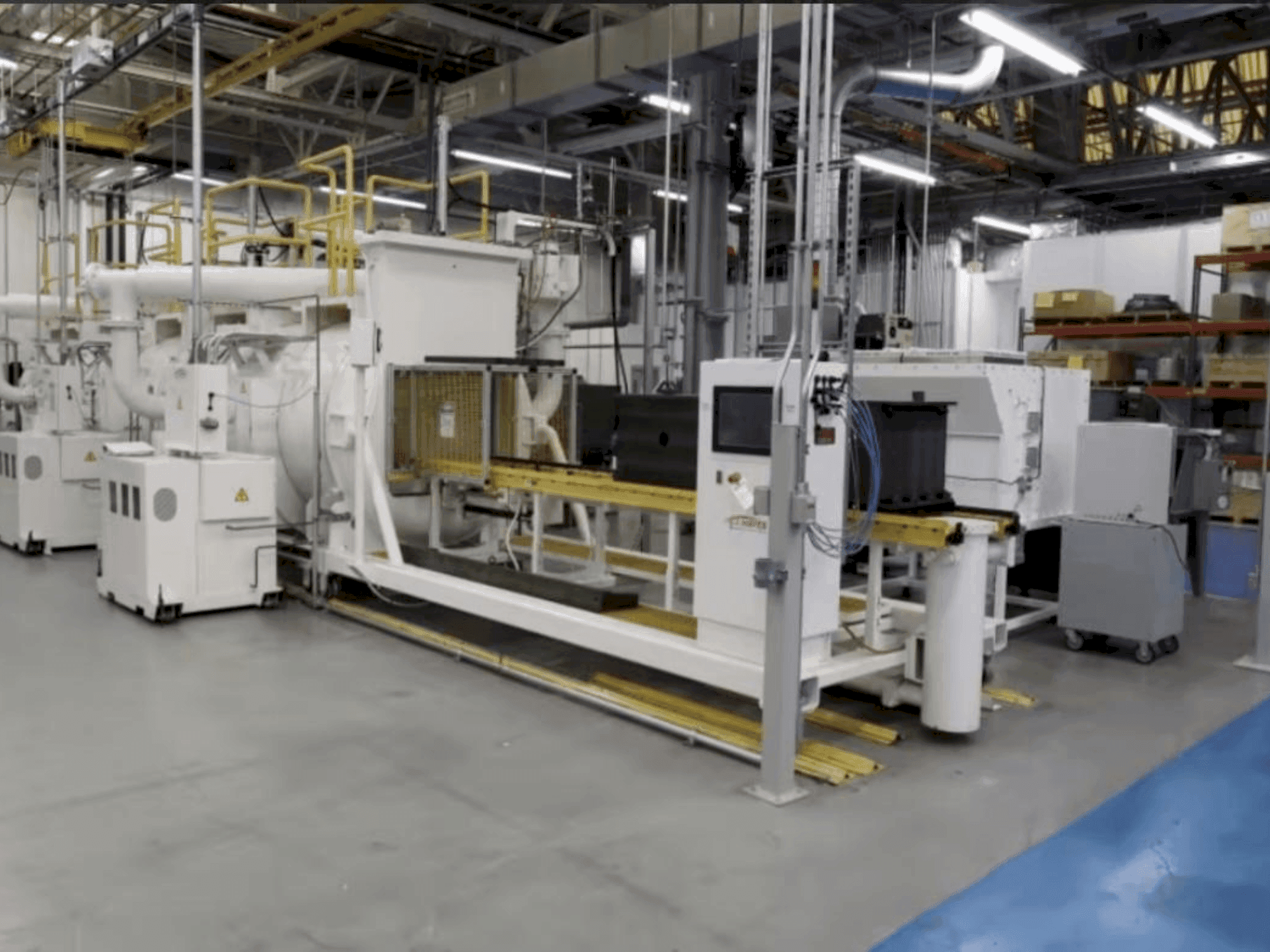

Front view of C.I. HAYES CV-202436-PH machine
Front view of C.I. HAYES CV-202436-PH machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

C.I. HAYES - CV-202436-PHMD-OTH-CIH-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This machine tool was manufactured in 2015. The C.I. Hayes CV-202436-PH features a semi-continuous vacuum/inert furnace with operating temperatures up to 1450-C. It includes a preheat chamber, process chamber, and a quench chamber with sub-atmospheric convective cooling. Additional features are a Tuthill KT300 vacuum pump, graphite-lined modules, and an HMI operator interface with AB PLC for enhanced control. For more information about this machine tool, please reach out to us.

Overview

  • brand: C.I. HAYES
  • year: 2015
  • MODEL: CV-202436-PH
  • application type: Other Machine Tools
  • Location: Moldova
  • machine type: Machine Tool

Additional Information

Additional equipment

  • 2016 Tuthill KT300 Vacuum Pump Combo: Yes
  • PH module: Graphite lined, rated to 1120°C
  • HH module: Graphite lined, rated to 1450°C
  • 5 work carrier grids: Yes
  • Uniformity: +/- 25F in red heat (1400F to 2650F range)
  • Automatic vacuum control: 0.5 torr to 3 torr range
  • Kinney vacuum pump combination: Yes
  • Heat exchanger with pumping system for furnace water loop side: Yes, fully wired and piped

Machine Benefits

Qualitative Machine Benefits

  • Advanced programmable control via ab plc and hmi operator interface

Technical Machine Benefits

  • High operating temperatures for preheat and process chambers
  • Precise temperature uniformity and vacuum control
  • Combined vacuum pump and cooling systems for efficient operation
  • Preheat chamber temperature: 1100°c
  • Process chamber temperature: 1450°c
  • Quench chamber: nitrogen, just below atmosphere (~900 mbar)
  • Cooling module: vacuum and sub-atmospheric convective cooling

Extra Information

Machine still under power
