ISEL - / ATN Vergusssystem 3DE-MIL-ISE-2016-00002

Name: ISEL / ATN Vergusssystem 3
Brand: ISEL
SKU: DE-MIL-ISE-2016-00002
Price: 34000 EUR
Availability: InStock

34,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ISEL / ATN Vergusssystem 3 For Sale | gindumac.com

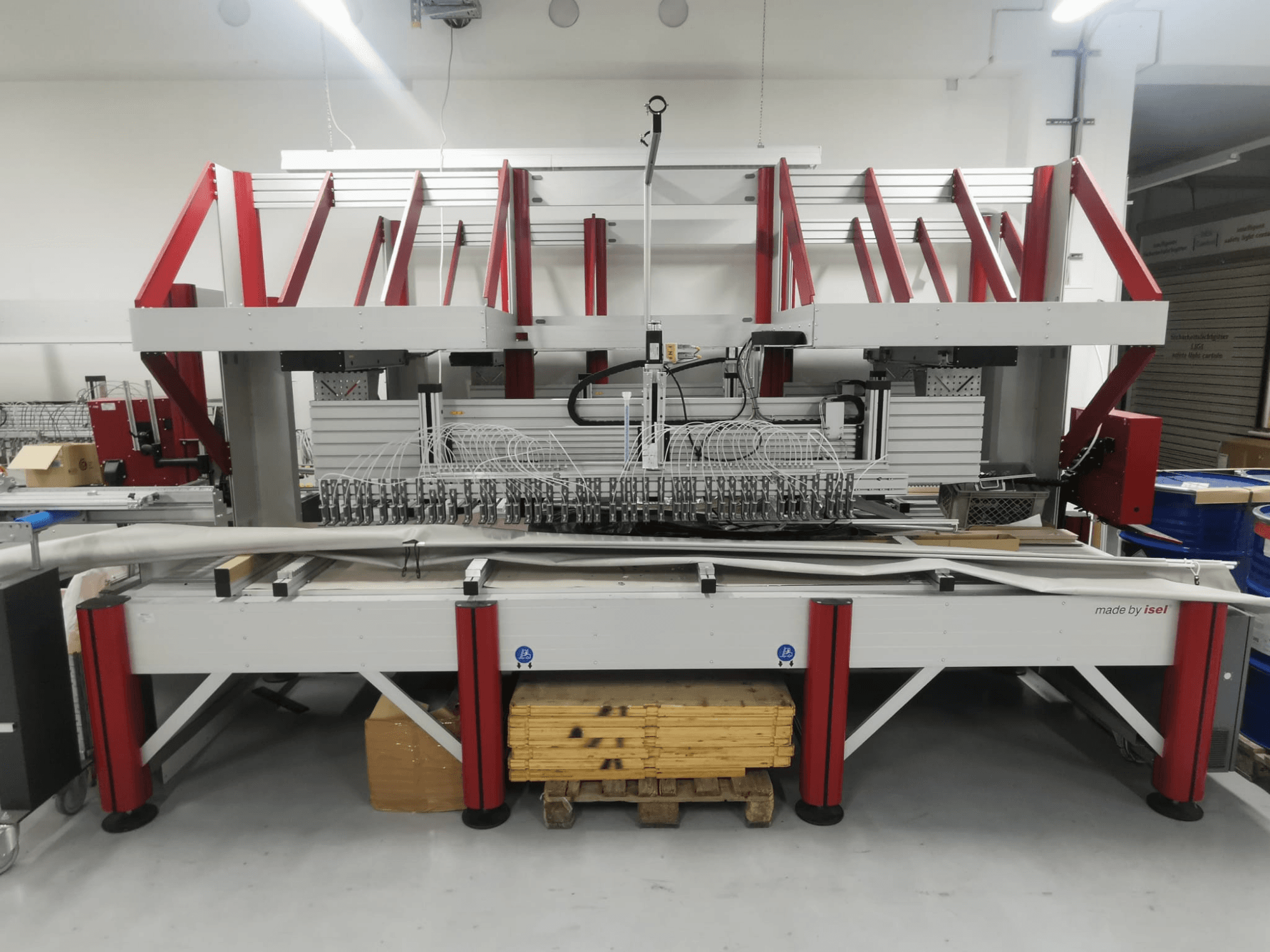

Gantry milling machine manufactured in 2016. This ISEL ATN Vergusssystem 3 features a robust assembly with X, Y, and Z-axis components, along with a PC control system equipped with a monitor, keyboard, and mouse. The machine offers travel ranges of approximately 220 mm in X, 500 mm in Y, and 150 mm in Z. If you are looking to get high-quality milling capabilities, consider the ISEL ATN Vergusssystem 3 machine we have for sale. Contact us for further details.

Overview

brand: ISEL
year: 2016
MODEL: / ATN Vergusssystem 3
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - ISEL / ATN Vergusssystem 3

Movement

Number of Axes: 3
X-axis Travel: 220 mm
Y-axis Travel: 500 mm
Z-axis Travel: 150 mm

Technical Specification

Spindle Speed: 0 RPM

Additional Information

- Machine 1: 0 hours

- Machine 2: approx. 20 hours

- Machine 3: approx. 500 hours

- 3 machines in total

- Components per Machine: ISEL machine base frame with X, Y, Z-axis assembly, PC control system with monitor, keyboard and mouse

- Loose Accessories: None (all components are assembled together)

- External Dimensions: 4 m wide x 1.4 m deep x 2.6 m high (one machine is smaller due to the Y-axis configuration)

- Axis data specified for each machine:

- Travel Ranges: Approx. X- 220 mm, Y- 500 mm, Z- 150 mm

- PC Processor / CPU: Intel(R) Core(TM) i3-2120 CPU @ 3.30GHz

- PC Memory / RAM: 4096 MB DDR3 1333

- BIOS: American Megatrends Inc. RX67QV BIOS Ver 1.05

- Software Included: ISEL Remote program (for programming travel paths), ATN software (for programming movements with dosing times for casting/potting systems, e.g., Hilger & Kern), WinControl

- Linear Drive Motor / Actuator Specs: Iselgermany EC-LES Spindelantrieb, 135W / 48V

- Linear Module Type: Isel Linear-Einheit LES 4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
