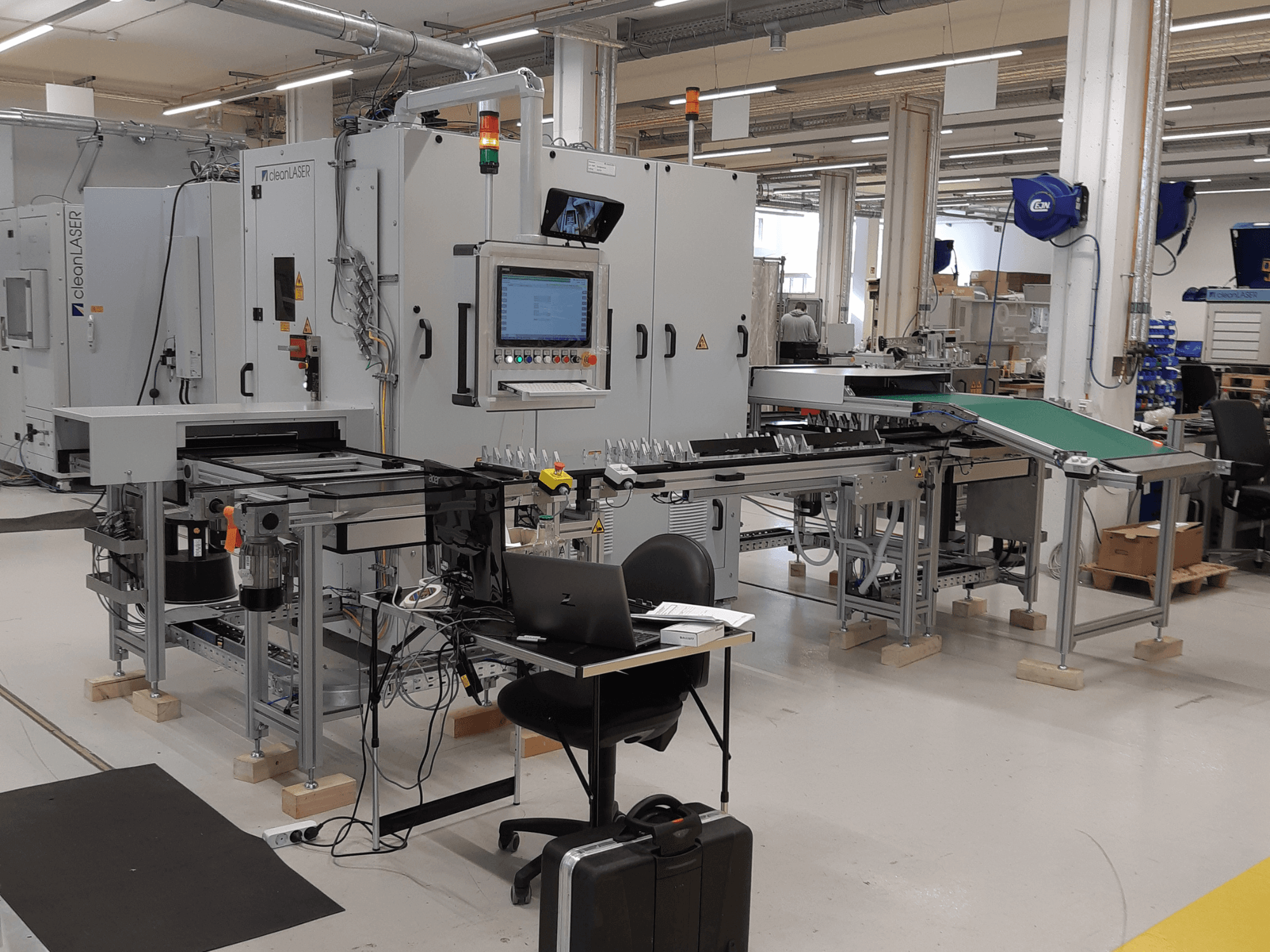

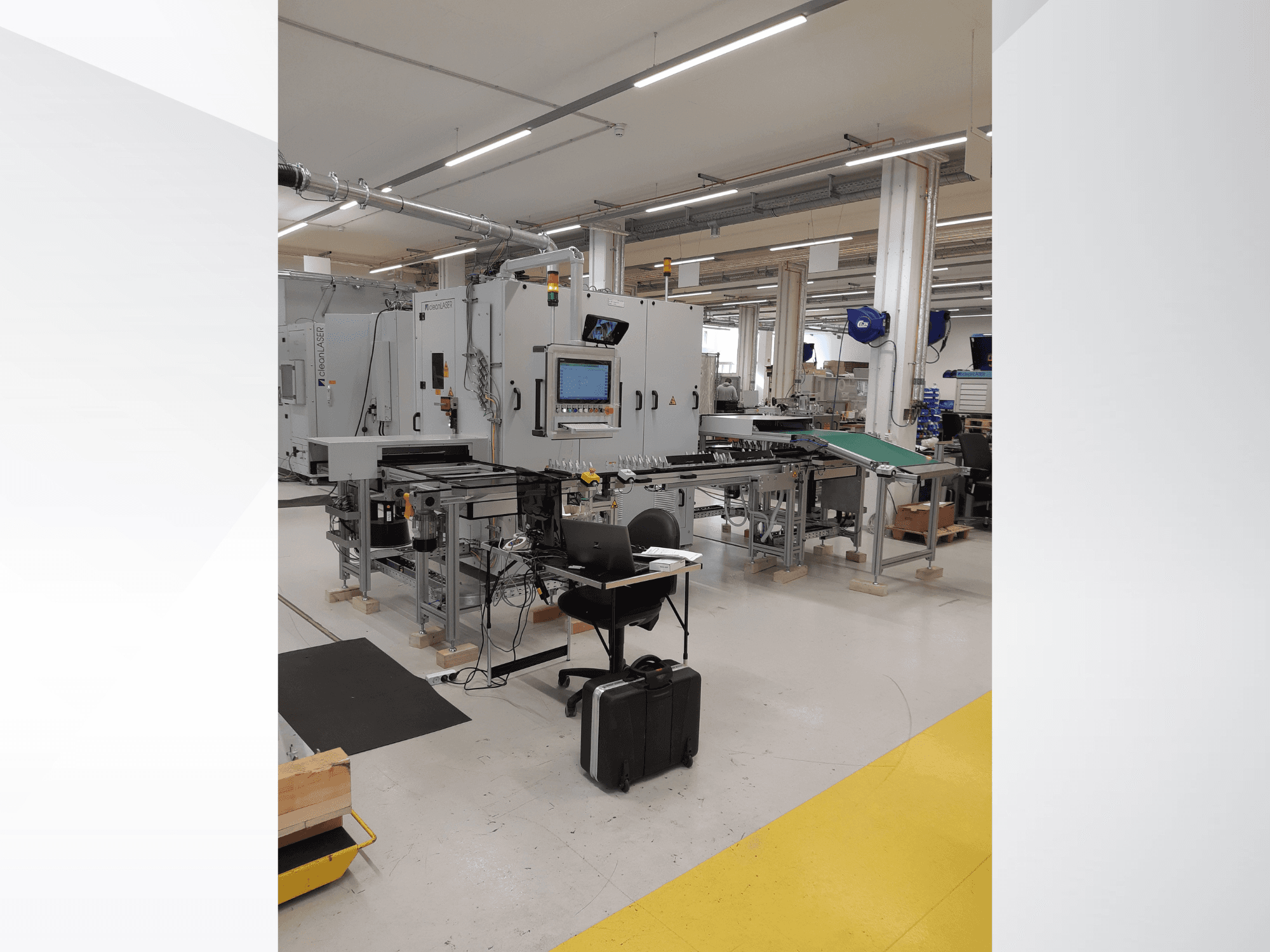

CLEAN LASER - clean CELL 3220 CL600DE-OTH-OTH-2019-00001

• Machine Type: Automated Robotic Laser Cleaning Cell

• Application: Automated Laser Cleaning / Surface Treatment of Metal Components

• Laser Source: cleanLASER CL600

• Laser Type: Q-switched Fiber Laser

• Average Laser Power: 600 W

• Wavelength: 1064 nm

• Laser Class: Class 4 (Laser Source)

• Complete System Classification: Laser Class 1

• Laser Optics: STAMP 25

• Scanner Type: 2D Scanner

• Working Scan Field: Approx. 65 × 65 mm

• Objective Lens: f = 163 mm

• Red Positioning Laser: Yes

• Pulse Frequency: Variable

• Beam Delivery: Fully Aligned Beam Path

• External Fiber Length: Approx. 8 m

• Door Interlock Connection: Yes

• Remote Diagnostics: TCP/IP / USB

• Fieldbus Interface: Profinet

• Software: cleanSTUDIO

• Telediagnostic Software: CLL Remote Diagnostics

• Robot Type: 6-Axis Industrial Robot

• Robot Programming: Teach Mode

• Robot Gripper: Single Part Gripper

• Loading System: Manual Loading

• Conveyor System: Bosch T2 Carrier System

• Buffer System: Multiple Workpiece Carriers

• Unloading: Automatic Conveyor

• Conveyor Length: Approx. 2 m

• Workpiece Carrier: Not Included

• Designed Workpiece Types: 2

• Machine Footprint (W × D × H): Approx. 2,035 × 2,200 × 2,215 mm

• Machine Frame: Welded Steel Base Frame

• Cell Construction: Aluminium Profiles

• Work Table: Aluminium T-Slot Plate

• Front Door: Folding Door

• Electrical Cabinet: Integrated Double Cabinet

• Cabinet Width: 1,200 mm

• Cabinet Depth: 800 mm

• Cooling Requirement: External Water Cooling (<17°C)

• Chiller: Cooler ONE Plus Air Rev. 2.0

• Ambient Temperature: Up to 38°C

• Cooling Type: Air Cooled

• Power Supply: 400 V

• Operating Language: German / English

Absorption / Extraction System

• Extraction System: TEKA Maxi

• Motor Power: 3 kW

• Maximum Airflow: 500 m³/h

• Maximum Vacuum: 1,000 Pa
