- ➤ Used CASADEI MATRIX 230 For sale | gindumac.com

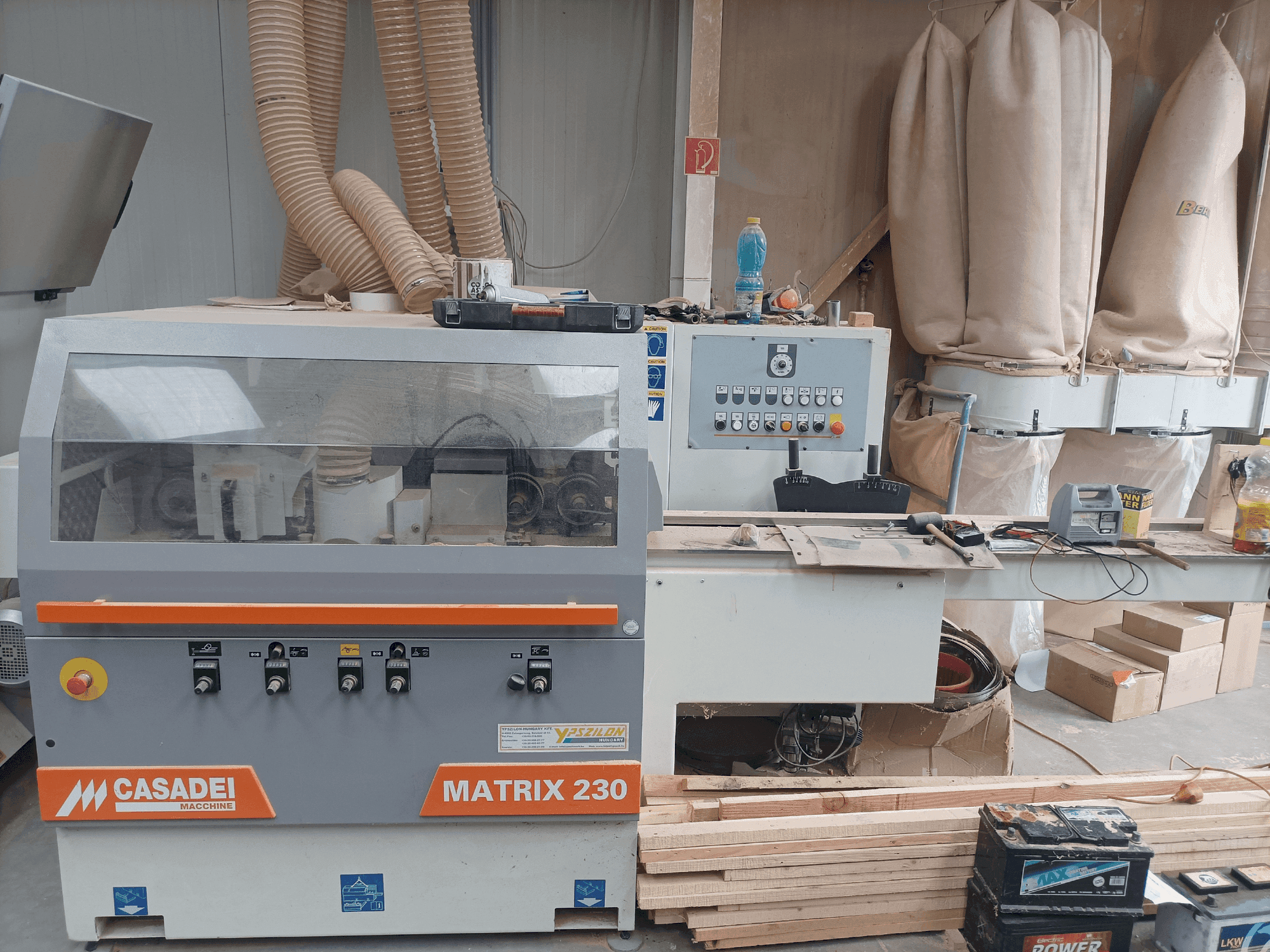

This 3-axis CASADEI MATRIX 230 Wood was manufactured in 2018, featuring a robust welded frame with cast reinforcements ensuring vibration-free operation. It includes a mechanically adjustable cast iron feed table and a soundproof protective enclosure for noise reduction. The machine offers a "QUICK SET" system for rapid, precise adjustments without opening the protective cover. Ideal for precision woodworking, the CASADEI MATRIX 230 machine we have for sale is a significant asset. Contact us for further details.
Overview
- brand: CASADEI
- year: 2018
- MODEL: MATRIX 230
- application type: Wood Working
- Location: Hungary
- machine type: Wood
- availability: Immediately
Technical Information - CASADEI MATRIX 230
General Data
- Shaft diameter: 40 mm
Main drive
- Spindle speed range: 6000 1/MIN
- Number of axis: 3
Additional Information
- Technical Machine Benefits:
- - Working length of horizontal axes: 250 mm
- - Length of vertical axes: 140 mm
- - Tool diameter that can be used on the lower horizontal axis: 120-140 mm // tool diameter that can be used on vertical axes: 100-180 mm // tool diameter that can be used on the upper horizontal axis: 125 mm
- - Motor power of lower horizontal axis: 4 kw (5. 5 hp) // motor power of upper horizontal axis: 4 kw (5. 5 hp) // motor power of vertical axes: 5. 5 kw (7. 5 hp)
- - Sending table length: 2000 mm
- - Diameter of forward wheels: 140 mm
- - Axial displacement of vertical axes: 40 mm // axial displacement of horizontal axes: 40 mm
- - Ce standard
- - Electric brake for motors
- - 2500 mm long work table
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
