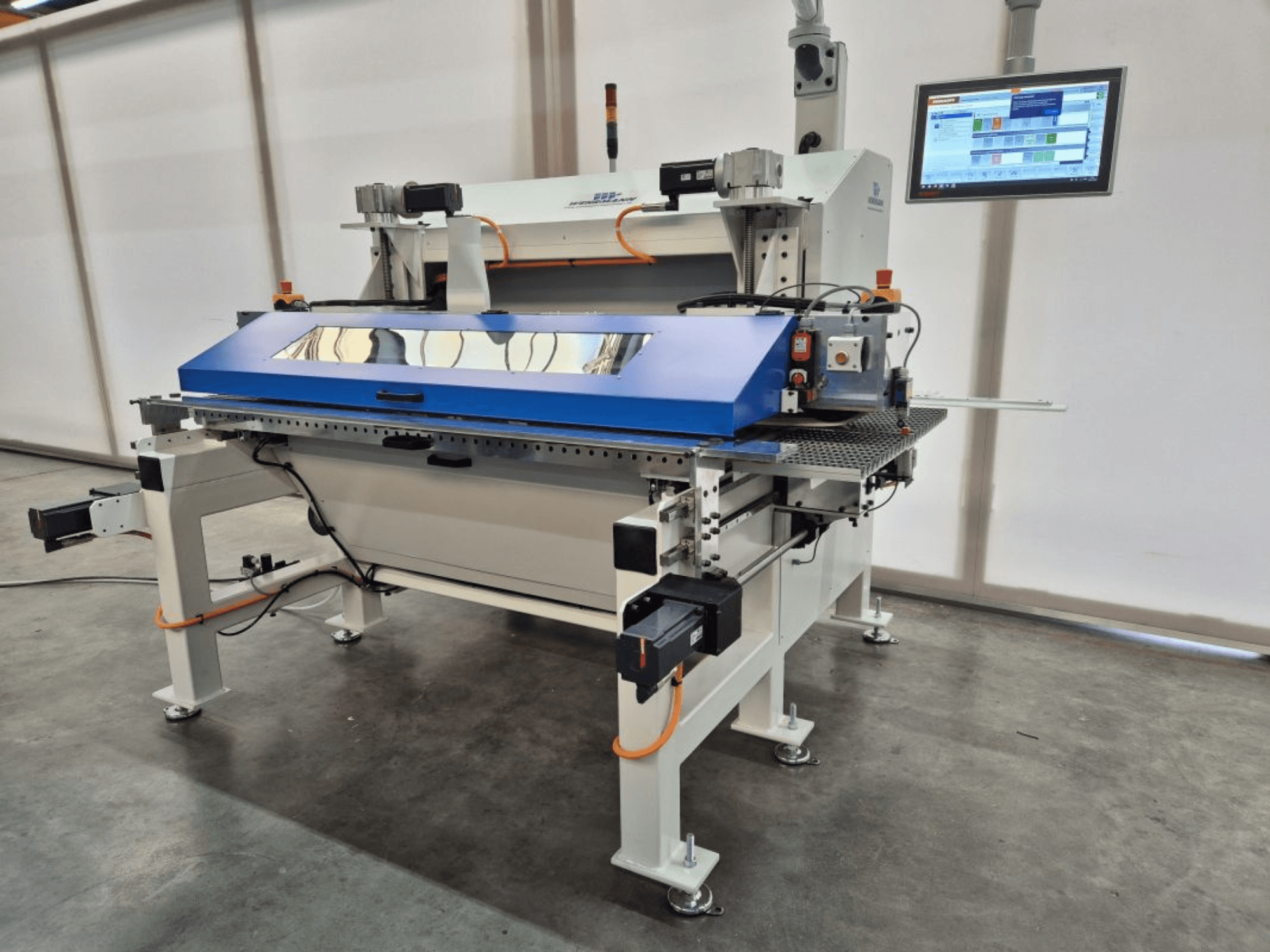

WEHRMANN - WT-50/900DE-SAW-WEH-2025-00001

• Condition: New

• Application: Classic cutting of rectangular workpieces made of wood/wood-based materials with laminate (CLP, HLP), paper, foil, or veneer

• Workpiece/panel capacity:

  • Length: from 140 mm

  • Width (finished size): min 50+50 mm; max 450+450 mm (asymmetrical cutting possible)

  • Thickness: 8–40 mm

  • Max workpiece weight: approx. 30 kg

  • Shape: rectangular

• Working height: 900 mm

• Machine side: Right-hand machine (stop side on the right in the direction of travel)

• Feed/adjustments:

  • Feed speed: 5–40 m/min, servo-controlled

  • Electronic height adjustment: 5–45 mm via Beckhoff servo axis

  • Right-side Teflon stop ruler, servo-driven

  • Left infeed ruler with pneumatically spring-loaded unit, servo-driven

• Construction/transport:

  • Sturdy welded steel frame

  • Transport by belt with height-adjustable top pressure

  • Low-maintenance belt with gentle transport coating

  • 32 mm V-belt top pressure with spring-loaded rollers for reliable guidance

• Aggregates:

  • Aggregate 1: Frequency-controlled scoring saw

    • Perske motor 4.4 kW, 50 Hz, 400 V, 4500 rpm

    • Tool holder D=35, key

    • External + internal thread R/L, servo-controlled, tandem, non-swiveling

    • Height adjustment via Beckhoff servo axis

    • Lateral adjustment with mechanical digital display

    • Max saw blade Ø 350 mm

    • Flow-optimized extraction hoods

    • Without tools

  • Aggregate 2: Frequency-controlled main saw

    • Perske motor 6 kW, 50 Hz, 400 V, 5000 rpm, counter-rotation

    • Tool holder D=35, spline shaft, external + internal thread R/L

    • Max saw blade Ø 400 mm

    • Split wedge adjustable by hand

    • Height adjustment via Beckhoff servo axis

    • Lateral adjustment with mechanical digital display

    • Flow-optimized extraction hoods

    • Without tools

• Control and HMI (Beckhoff):

  • PC-based control with integrated PLC and electronic line control (TwinCAT 3)

  • 15.6" multitouch panel with integrated keypad/keyboard/mouse

  • Simple, component-oriented program creation; freely definable program names; virtually unlimited program memory

  • Operation via keyboard/mouse/touch; message system for operator/error messages

  • MDE Basic: production time, setup time, downtime, fault time, unit counter, adjustable recording period

  • Fast EtherCAT fieldbus; Ethernet RJ45; USB port

  • Uninterruptible power supply (UPS) for panel PC

  • PLC programming per IEC 61131-3

  • Feed lock for adjacent machines/transport systems

• Included with basic machine:

  • Sound absorber/protective hood with safety lock

  • Connection pieces for external extraction (min air velocity 28 m/s, negative pressure 2480 Pa)

  • Compressed air connection with maintenance unit

  • Integrated control cabinet with cooling unit (ambient 10–45 °C)

  • Safety and protective measures per CE; CE mark

• Utilities and specs:

  • Operating pressure: 6 bar

  • Power: 3/N/PE, 400/230 V, 50 Hz, ±5% (ECD protective circuit not applicable)

• Language:

  • Machine labeling: German

  • Operating instructions: German

  • Spare parts lists: German

• Paint finish:

  • Base/cladding: Gray-white RAL 9002

  • Aggregates: Dust gray RAL 7037

  • Protective covers: Blue RAL 5017

  • Control panel: Light gray RAL 7035

• Delivery time: Available approx. 4 months after order

Additional equipment

• External dust extraction system (not included; machine supplied with connection pieces; requires 28 m/s air velocity and 2480 Pa negative pressure)

• Optional: Preparation for barcode or RFID scanner with defined file directory

• Optional Industry 4.0 interfaces: MQTT, UMATI, OPC UA, RFID
