CHIRON - DZ18WDE-MIL-CHI-2018-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHIRON DZ18W For Sale | gindumac.com

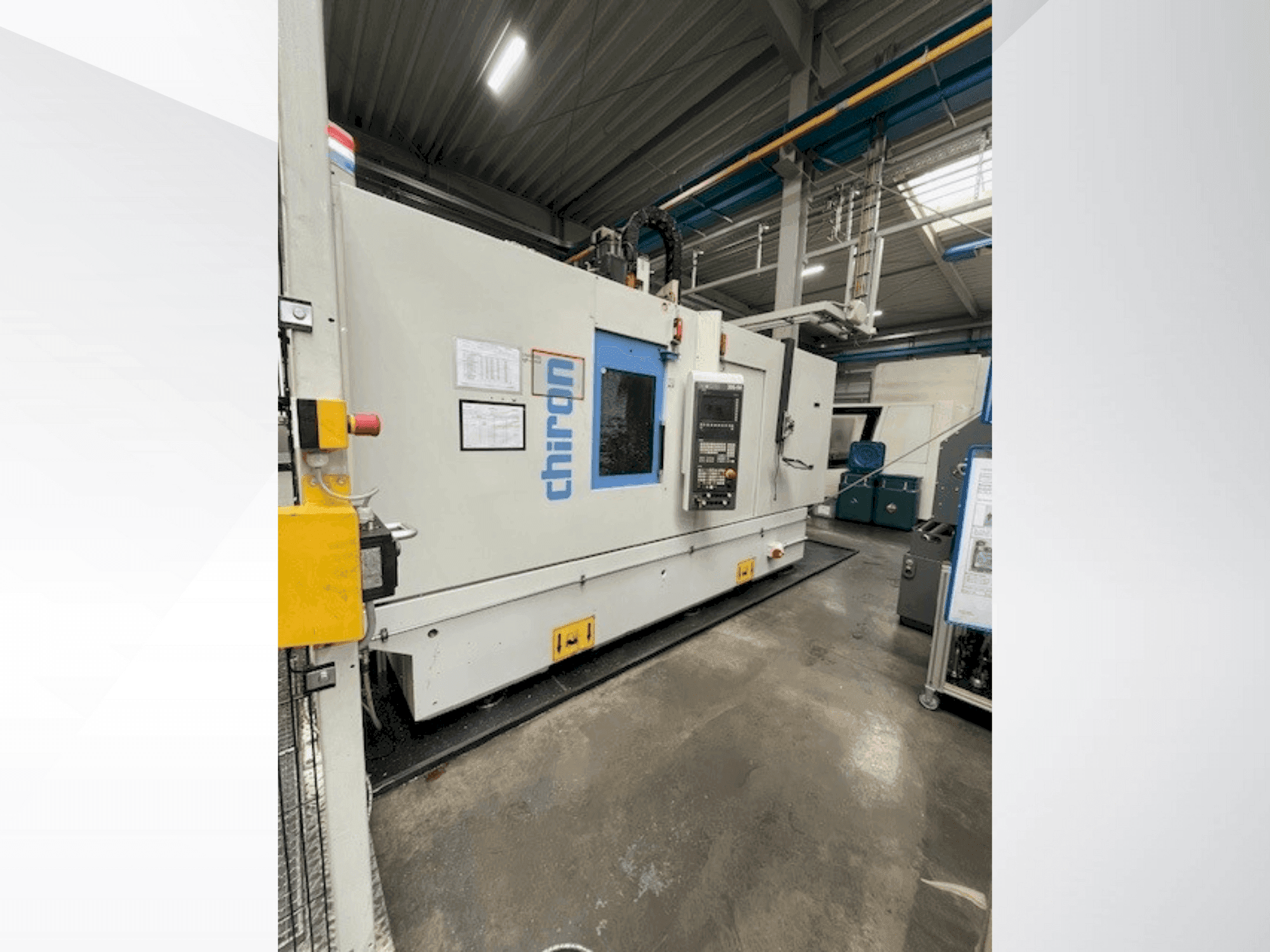

This 4-axis CHIRON DZ18W was manufactured in 2018. Ideal for precision vertical machining, this model offers robust construction and reliable performance. Consider the opportunity to buy this CHIRON DZ18W vertical machining centre. Contact us for more information.
Overview
- brand: CHIRON
- year: 2018
- MODEL: DZ18W
- production hours: 12291
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON DZ18W
Control Unit
- Brand: SIEMENS
- Model: 840D solution line
Main drive
- Tool taper: HSk-A 63
- Number of axis: 3
Movement
- X-AXIS Movement: 630 MM
- Y-AXIS Movement: 530 MM
- Z-AXIS Movement: 450 MM
Additional Equipment
- - OPTIONAL: robot, entire cell including conveyor belts, PLC, turning station
Additional Information
- Technical Machine Benefits:
- - Tool positions: 2x35
- - Tool length max: 380 mm
- - Splash guard panel with fully enclosed work area/ with loading door, electrically protected/ including replaceable safety windows/ Work area partition with stainless steel louvres/ Height 2340 mm above floor, including machine light/ Mini control panel with start and reset button for M61/M62 pallet organization/ Integrated workpiece changing device IWW 0/180°/ for optimal chip flow with center partition made of sheet steel/ Workpiece changing time approx. 3.5 seconds, weight-dependent, self-regulating/ thanks to self-learning speed control./ Transport load per side 0 - max. 250 kg/ Max. 120 kg weight difference between the two table sides./ Each table side is prepared for the installation of a rotary table package./ Distance between spindle mount and swivel center/point /WW minimum 75 mm/ Travel paths: X-axis 630 mm/ Y-axis 530 mm/ Z-axis 450 mm/ Tank flushing system with coolant connection/ NC rotary table, type ATU 200/ Integrated into the integrated workpiece changing device IWW 0/180°/ With hydraulic clamping, holding torque 1,200 Nm,/ Repeatability +5" with/ faceplate © 225 mm, with centering® 60 -0.008,/ Counter bearing with hydraulic clamping, holding torque 800 Nm./ On the rotary table and counter bearing side. Swivel radius 285 mm/ 7th or 5th NC axis, plug-in ready/ Regulated pneumatic connection for sealing air/ Controlled hydraulic connection for clamping./ Rotary feedthrough 2 x 5-way/ Rotary table side: 4 x hydraulic/pneumatic, 1 x Pneumatics/ 4 x hydraulic/pneumatic on the counter bearing side, 1 x pneumatic/ Working area - rotary table assignment/ AF1 Rotary table ATU 200/ AF2 Rotary table ATU 200/ Double-spindle headstock/ Prepared to accommodate 2 main spindle motors with spindles/ Spindle distance in X-axis 400 mm/ Main spindle drive with 2 AC motors/ Air-operated, with tool clamp monitoring/ 11.0 kW at 100% duty cycle/ 25.3 kW at 15% duty cycle/ Speed up to 12,000 rpm/ Max. torque 140 Nm/ Drilling capacity 2 x 42 mm/ in steel E355/ Automatic tool changer/ with robust, fully encapsulated pick-up chain magazine/ 2 x 35 tool positions/ HSK-A 63 DIN tool shank 69893/ Tool width max. 78 mm/ Tool width with free adjacent positions max. 140 mm/ Tool length max. 380 mm/ Tool weight max. 8.0 kg (max. magazine load 240 kg)/ Tool change time approx. 0.9 s (control system dependent)/ Soan-to-chip time approx. 2.2 s (control system dependent)/ Feed drive for X, Y, and Z axes/ Digital drives with direct position measuring systems, overpressure application/ Rapid traverse speed 75 - 75 - 75 m/min/ Axis acceleration 1.0 - 1.4 - 1.6 g/ SIEMENS CNC control 840D solution line/ incl. 10.4" TFT color screen / full keyboard / operator panel OP010S/ 1280 1 (TCU / NCU 720.3, 1 channel)/ User interface Operate/ NC RAM 3 MB (max. 1 MB available)/ (max. 200 programs available)/ for running part programs according to DIN 66025/ CF card with 8 GB storage capacity (max. 3 GB available)/ Power display, operating hours and workpiece counter on the screen, Screen blanking, access authorization via key switch, NC diagnostics with help function, machine diagnostics, USB interface on the control panel./ Look-ahead with dynamic feedforward control, oriented spindle stop, restart in the program, Subroutine technology in high-level language and parameters, Simultaneous programming, cycle support, Drilling cycles G81-G89, drilling and milling patterns, Measuring in JOG, M and T functions, Tool offsets for geometry, wear, 4 storable zero point offsets G54-G57, 30 zero point offsets via G functions Programmable, Tool radius correction with intersection point calculation, Insertion of chamfers and radii, transition radii, Contour programming, scale factor, mirrors, Polar coordinates, circular interpolation (full circle programming)./ 3D interpolation, helical interpolation./ Because of the invention with fresh sound waves/ Network cabling is not included./ Chip conveyor (scraper belt)/ Tank capacity 200 l/ Pump output 250 l/min at 1.4 bar/ Coolant cleaning via slotted screen box/ Chip conveyor ejection height 1050 mm/ Chip conveyor ejection direction left/ 1640 1/ Coolant system TPF 350 / FKA 900/ (also for sludge-forming materials e.g. gray cast iron, GGG, Al with Si >/= 12%)/ Tank capacity 900 l/ LP pump 100 l/min at 2.4 bar to 250 l/min at 2.3 bar/ Energy-efficient frequency-controlled HP pump/ 43 l/min at 20 bar to 35 l/min at 70 bar/ Vario pressure relief valve for 8 programmable pressure levels/ Preset to 20, 30, 40, 50, 55, 60, 65, 70 bar
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
