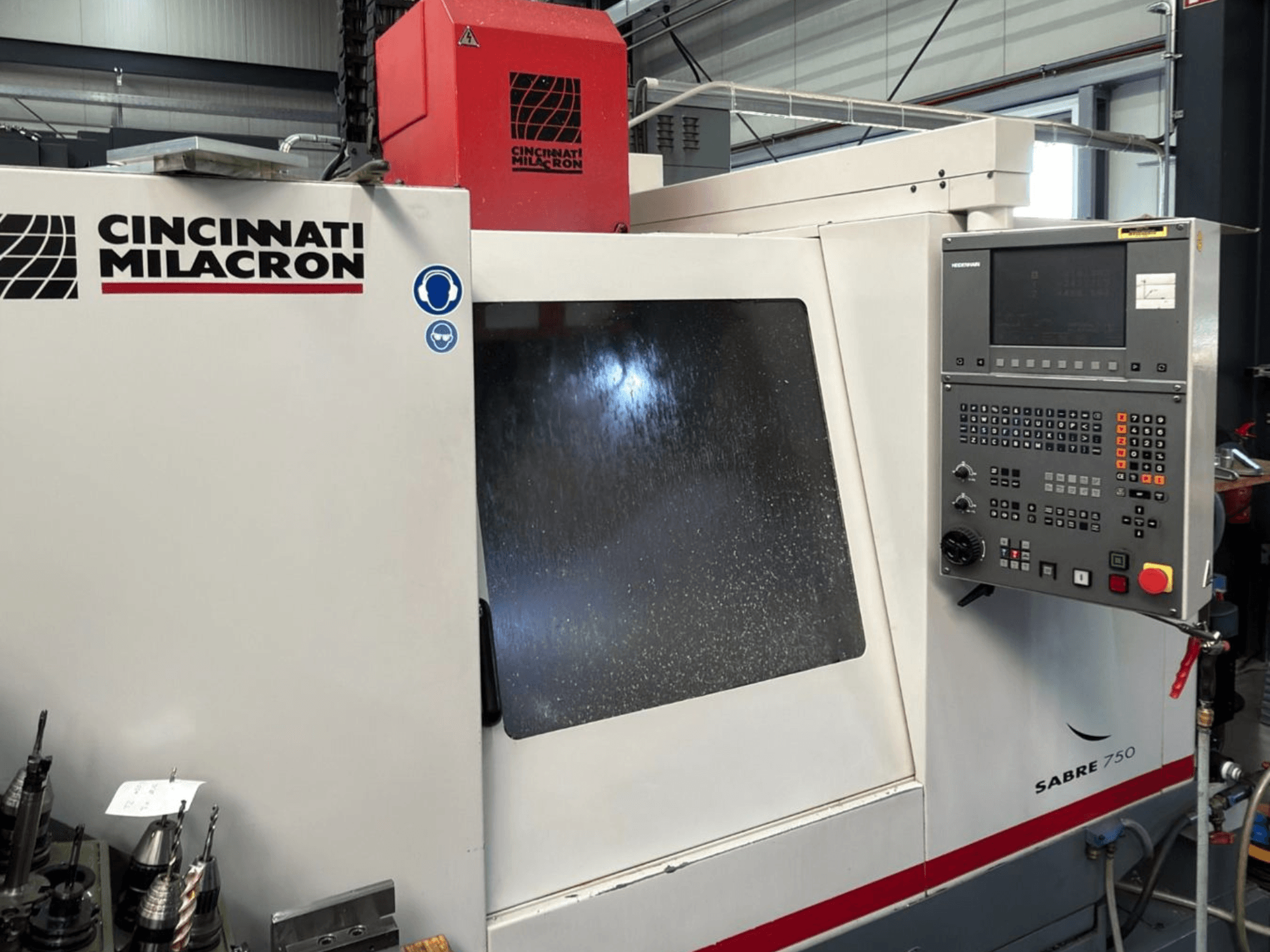

➤ Used Cincinnati Milacron Sabre 750 | Machining Center

This 3-axis Cincinnati Milacron Sabre 750 was manufactured in 1998. It features a table clamping surface of 865 x 510 mm and a maximum table load of 455 kg. The spindle speed reaches up to 5,000 RPM, powered by an 11 kW spindle motor. If you are looking to get high-quality machining capabilities, consider the Cincinnati Milacron Sabre 750 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Cincinnati
year: 1998
MODEL: Milacron Sabre 750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Cincinnati Milacron Sabre 750

Dimensions

Machine Height: 2480 mm
Machine Length: 2687 mm
Machine Weight: 4540 kg
Machine Width: 2080 mm
Table Load: 455 kg

Movement

Number of Axes: 3
X-axis Travel: 762 mm
Y-axis Travel: 510 mm
Z-axis Travel: 560 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 5000 RPM
Taper Size: SK 40

Additional Information

- Table Clamping Surface: 865 x 510 mm

- Maximum Table Load: 455 kg

- Tool Taper / Holder: SK40

- Spindle Motor Power: 11 kW

- Tool Magazine Capacity: 21 slots

- Distance Spindle Nose to Table: 127 to 687 mm

- Internal Coolant Supply: Yes, through spindle at 10 bar

- Program Run Hours: 10,975 hours

- Electrical Power Requirement: 30 kVA (24 kW)

- Compressed Air Supply: 5.5 bar

- Complete manuals and documentation, optional pull studs by agreement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
